Name: 40/50/65/80 Watt 120-277V LED Field Configurable Medium Flood Light with Knuckle and Trunnion 3000K/4000K/5000K
Brand: Atlas Lighting
SKU: FCMF6-11L
Price: 136.92 USD
Availability: InStock

Atlas Lighting 40/50/65/80 Watt 120-277V LED Field Configurable Medium Flood Light with Knuckle and Trunnion 3000K/4000K/5000K Selectable Bronze

Atlas Lighting 40/50/65/80 Watt 120-277V LED Field Configurable Medium Flood Light with Knuckle and Trunnion 3000K/4000K/5000K

DLC Premium Listed, IP65, UL Certified, Wet Location Rated

Price

Color Temp

Selectable

Finish Color

Bronze

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":67989827354868,"title":"Selectable \/ Bronze","option1":"Selectable","option2":"Bronze","option3":null,"sku":"FCMF6-11L","requires_shipping":true,"taxable":true,"featured_image":{"id":56042887872756,"product_id":15471439184116,"position":1,"created_at":"2026-10-29T15:54:55-04:00","updated_at":"2026-10-29T15:54:56-04:00","alt":"Atlas Lighting 40\/50\/65\/80 Watt 120-277V LED Field Configurable Medium Flood Light with Knuckle and Trunnion 3000K\/4000K\/5000K Selectable Bronze","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/FCMF6-11L.jpg?v=1793303696","variant_ids":[67989827354868]},"available":true,"name":"40\/50\/65\/80 Watt 120-277V LED Field Configurable Medium Flood Light with Knuckle and Trunnion 3000K\/4000K\/5000K - Selectable \/ Bronze","public_title":"Selectable \/ Bronze","options":["Selectable","Bronze"],"price":13692,"weight":3084,"compare_at_price":null,"inventory_management":"shopify","barcode":"765364071546","featured_media":{"alt":"Atlas Lighting 40\/50\/65\/80 Watt 120-277V LED Field Configurable Medium Flood Light with Knuckle and Trunnion 3000K\/4000K\/5000K Selectable Bronze","id":47030480142580,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/FCMF6-11L.jpg?v=1793303696"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":67989827354868,"title":"Selectable \/ Bronze","option1":"Selectable","option2":"Bronze","option3":null,"sku":"FCMF6-11L","requires_shipping":true,"taxable":true,"featured_image":{"id":56042887872756,"product_id":15471439184116,"position":1,"created_at":"2026-10-29T15:54:55-04:00","updated_at":"2026-10-29T15:54:56-04:00","alt":"Atlas Lighting 40\/50\/65\/80 Watt 120-277V LED Field Configurable Medium Flood Light with Knuckle and Trunnion 3000K\/4000K\/5000K Selectable Bronze","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/FCMF6-11L.jpg?v=1793303696","variant_ids":[67989827354868]},"available":true,"name":"40\/50\/65\/80 Watt 120-277V LED Field Configurable Medium Flood Light with Knuckle and Trunnion 3000K\/4000K\/5000K - Selectable \/ Bronze","public_title":"Selectable \/ Bronze","options":["Selectable","Bronze"],"price":13692,"weight":3084,"compare_at_price":null,"inventory_management":"shopify","barcode":"765364071546","featured_media":{"alt":"Atlas Lighting 40\/50\/65\/80 Watt 120-277V LED Field Configurable Medium Flood Light with Knuckle and Trunnion 3000K\/4000K\/5000K Selectable Bronze","id":47030480142580,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/FCMF6-11L.jpg?v=1793303696"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

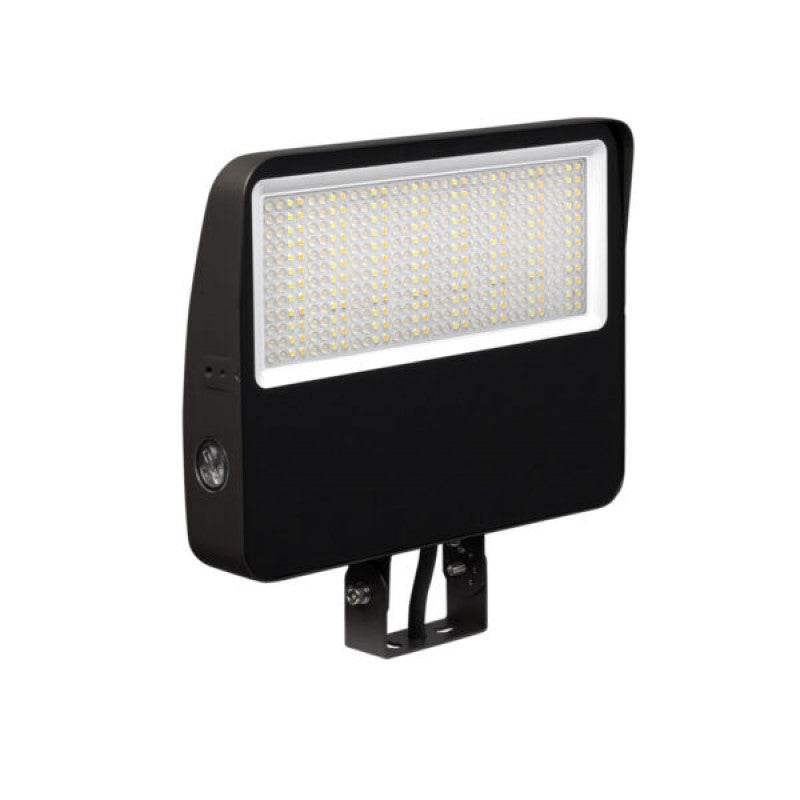

The Atlas Lighting FCMF6-11L field-configurable medium LED flood light offers adjustable illumination for commercial and industrial applications. Select from 40, 50, 65, or 80 watts and 3000K, 4000K, or 5000K color temperatures to suit your installation. Operating on 120–277V, this compact fixture delivers 6,342–12,164 lumens with an efficacy range of 142–164 lumens per watt and an 80 CRI. The 40, 50, and 65 watt settings replace up to a 175 watt metal halide lamp, while the 80 watt setting replaces up to a 250 watt metal halide lamp.

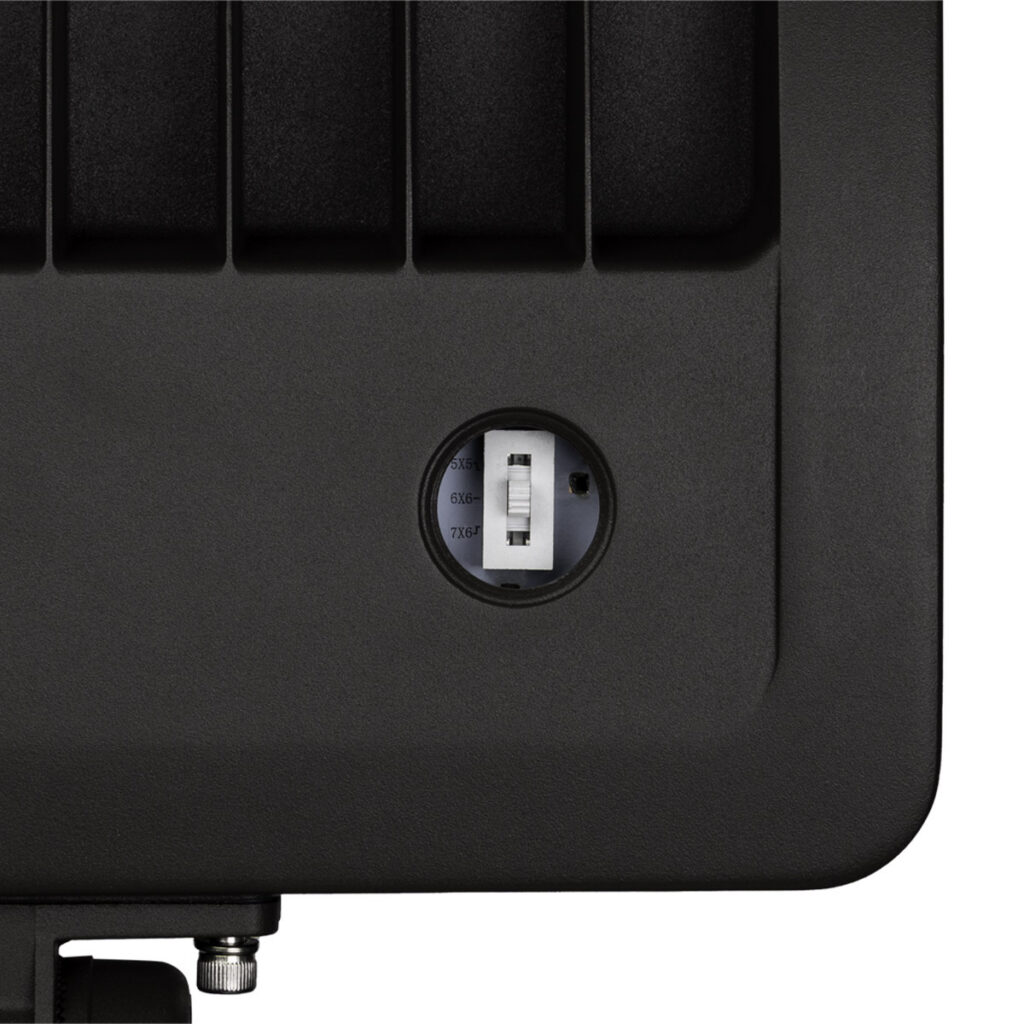

A die-cast aluminum housing helps maintain cooler operating temperatures to support light output and LED longevity. Both knuckle and trunnion mounts are included, providing installation flexibility. The injection-molded acrylic optic offers NEMA 7x6, 6x6, and 5x5 flood distributions, allowing the light pattern to be configured for the application. Published lumen output is based on the 6x6 distribution; multiply lumens by 0.93 for the 7x6 distribution or by 0.94 for the 5x5 distribution.

Featuring 0–10V dimming and an internal on/off photocontrol, the FCMF6-11L supports adjustable light levels and automatic light control. Long-life LEDs provide 100,000 hours of operation while maintaining at least 70% of initial light output (L70). The fixture operates in temperatures from -40°C to +50°C (-40°F to +122°F), is certified to UL/cUL standards for wet locations, carries an IP65 rating, and is DLC Premium Listed. A five-year warranty provides added peace of mind.

The fixture measures 10.75 inches long by 2.25 inches wide, with an overall height of 11.875 inches with the knuckle mount or 10.875 inches with the trunnion mount.

Specifications

Manufacturer	Atlas Lighting
MPN	FCMF6-11L
SKU	FCMF6-11L
UPC	765364071546
DLC Product ID	S-P4HC1K
Lighting Technology	LED
Wattage	40/50/65/80 Watts
Voltage	120-277V
Color Temperature (Kelvin)	3000K/4000K/5000K
Lumens	6,342–12,164 Lumens
Efficiency (Lumens Per Watt)	142-164 LPW
Dimmable	Yes, 0-10V
Rated Life	100,000 Hours (L70)
CRI (Color Rendering Index)	80 CRI
Finish Color	Bronze
Mounting	Knuckle & Trunnion
Metal Halide Equivalent	40/50/65 Watt = 175 Watts, 80 Watt = 250 Watt
Dimensions	10.75" L x 2.25" W (11.875" H w/Knuckle & 10.875" H w/Trunnion)
Environment	Wet Location
Certifications	cULus, DLC Premium Listed, IP65
Warranty	5 Years

Wattage	40 Watts
Color Temperature (Kelvin)	3000K Warm White	4000K Cool White	5000K Daylight
Lumens	6,342 Lumens	6,559 Lumens	6,645 Lumens
Efficiency (Lumens Per Watt)	154 LPW	163 LPW	162 LPW

Wattage	50 Watts
Color Temperature (Kelvin)	3000K Warm White	4000K Cool White	5000K Daylight
Lumens	7,905 Lumens	8,200 Lumens	8,234 Lumens
Efficiency (Lumens Per Watt)	154 LPW	164 LPW	161 LPW

Wattage	65 Watts
Color Temperature (Kelvin)	3000K Warm White	4000K Cool White	5000K Daylight
Lumens	9,804 Lumens	10,416 Lumens	10,509 Lumens
Efficiency (Lumens Per Watt)	146 LPW	158 LPW	157 LPW

Wattage	80 Watts
Color Temperature (Kelvin)	3000K Warm White	4000K Cool White	5000K Daylight
Lumens	11,490 Lumens	12,164 Lumens	12,163 Lumens
Efficiency (Lumens Per Watt)	142 LPW	156 LPW	151 LPW

Documents

Atlas 40/50/65/80 Watt 120-277V LED Field Configurable Medium Flood Light Specification Sheet

Atlas 40/50/65/80 Watt 120-277V LED Field Configurable Medium Flood Light Installation Instructions

Atlas 40/50/65/80 Watt 120-277V LED Field Configurable Medium Flood Light DLC Product Listing
