The LED Square Garage Light with Selectable CCT and Selectable Watts offers an affordable option for facility managers to upgrade parking garage lighting to LED, creating better visibility and making it an overall safer environment for visitors, while significantly reducing operating and maintenance costs. Certified as a DLC Premium product, this luminaire goes above and beyond the minimum rating, delivering up to 140 LPW. Its high efficiency combined with 120° beam angle ensures wide-spreading, uniform light, potentially decreasing the number of fixtures needed in a space. The optional microwave, PIR and Bluetooth motion sensors take savings a step further, enabling occupancy sensing and daylight harvesting, each fully programmable on a unit with optional SCR053 or SCR054 remotes, and the LiteSmart app. This unit is designed for easy installation, with surface or pendant mounting capabilities. The easy-mount connecting plate enables hands-free wiring for surface mounting, saving effort, time and cost on the installation process.

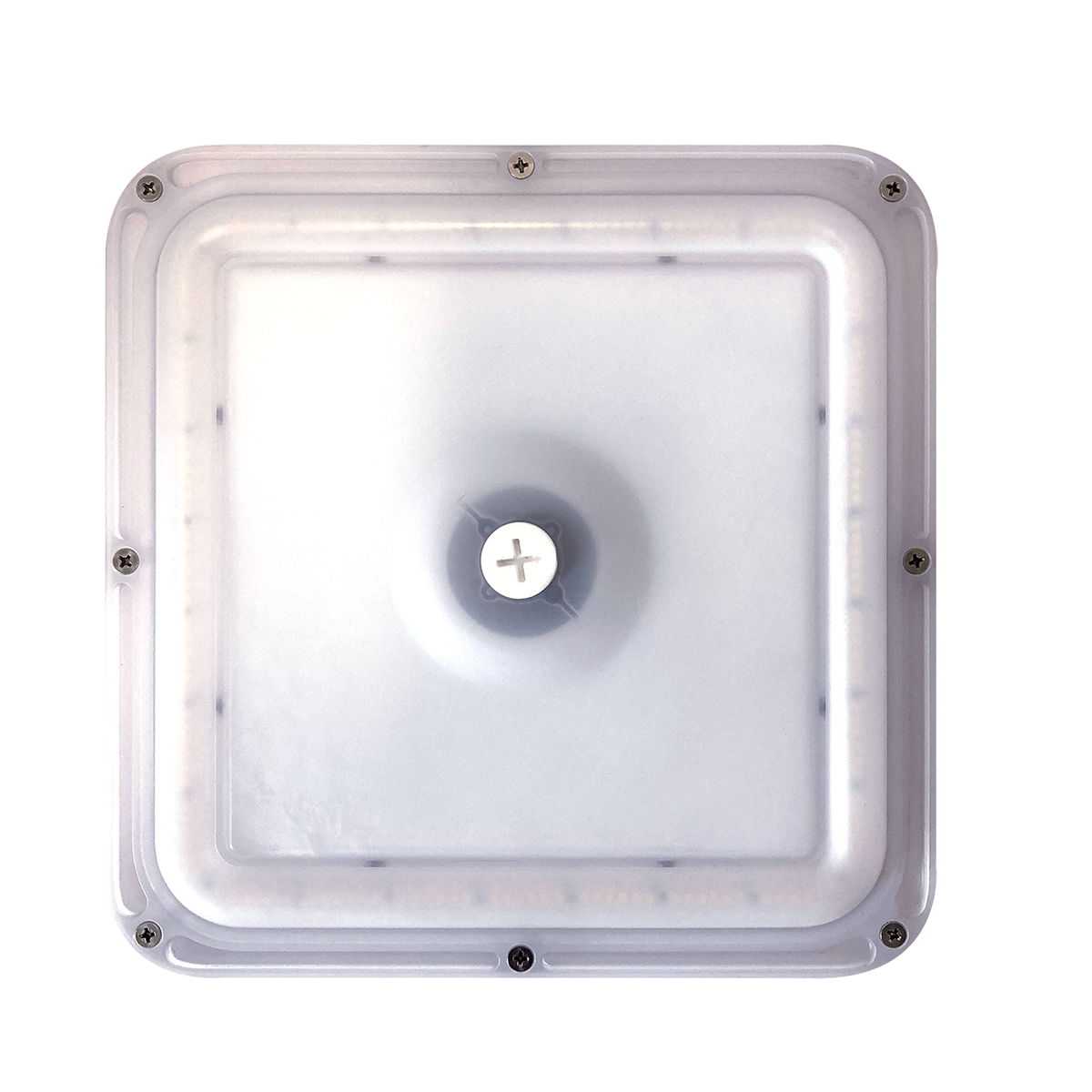

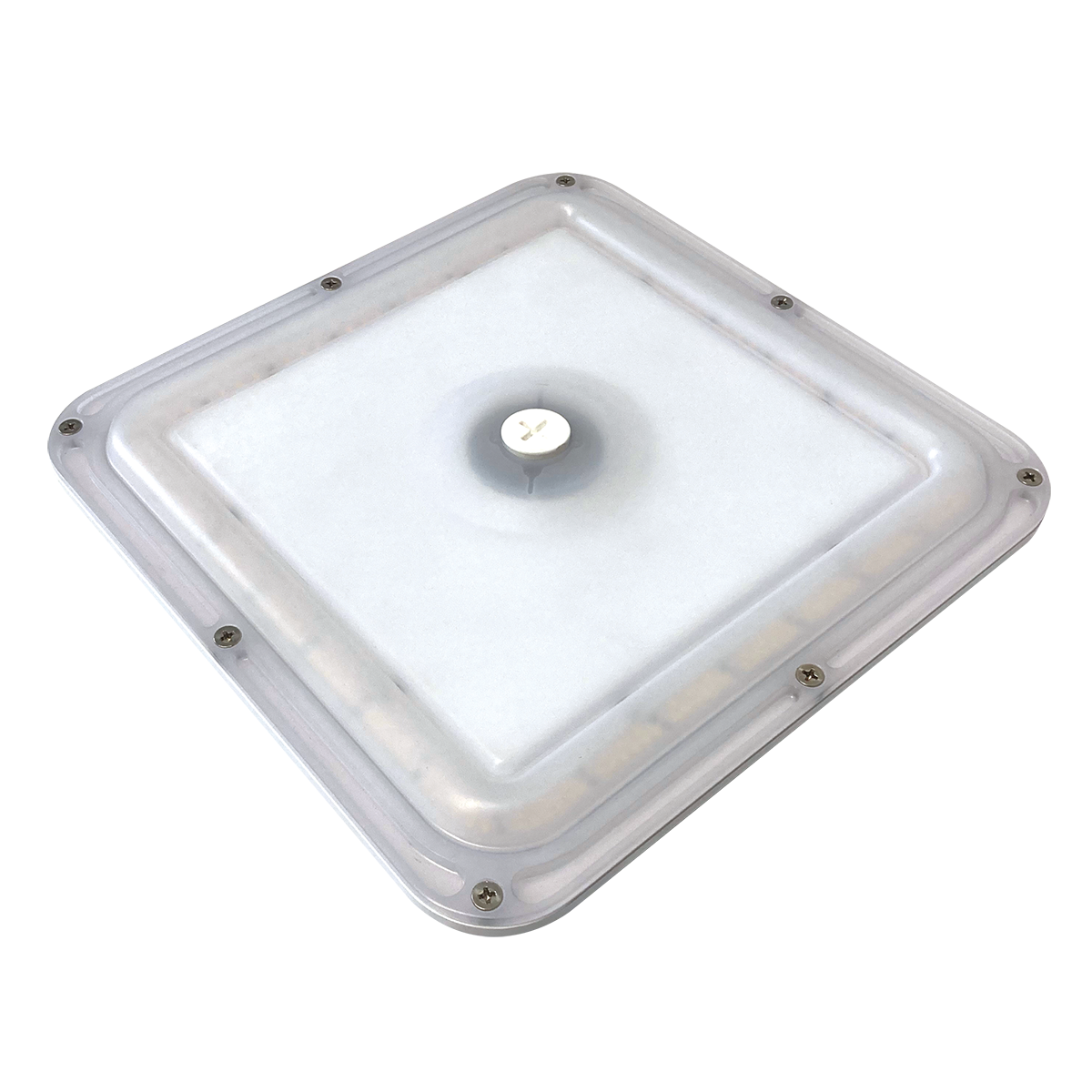

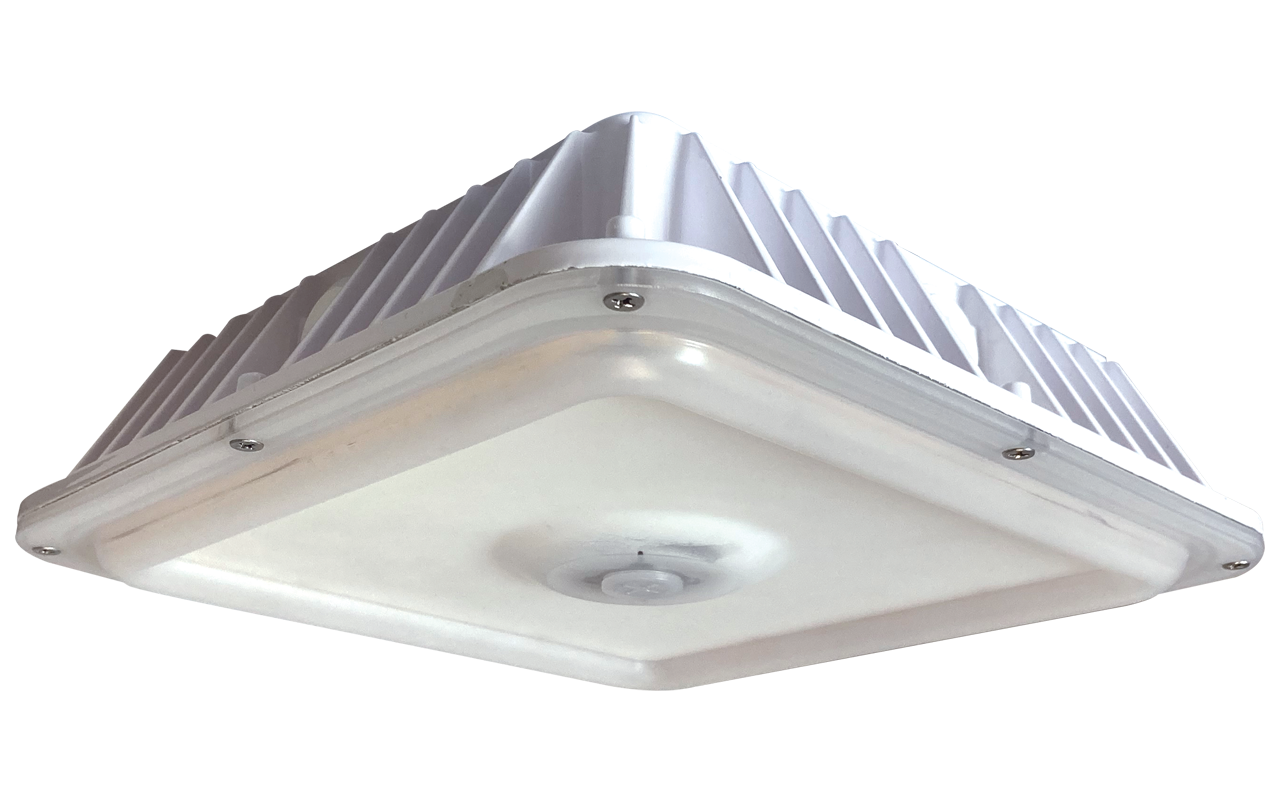

This fixture is Litetronics Part # GL80 and operates on 120–277V. The selectable wattage options of 40W, 60W, and 80W deliver 5,600, 8,400, and 11,200 lumens respectively, achieving an efficacy of up to 140 LPW. Color temperature is field-selectable between 4000K and 5000K, with a CRI of 80.
This luminaire is DLC Premium Listed and UL924 compliant with a 12V sensor. It carries an IP65 wet location rating and supports 0–10V dimming. The fixture is rated for 50,000 hours of life and backed by a 5-year warranty.
Installation is flexible, supporting surface mounting via the included plate or pendant mounting through a 3/4" NPT threaded boss. This fixture is well suited for parking garages, covered walkways, entranceways, canopies, and soffits.
