Name: 40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K/3500K/5000K
Brand: Westgate
SKU: CMCW10-COB-40W-MCT-36D-D-BK
Price: 341.38 USD
Availability: InStock

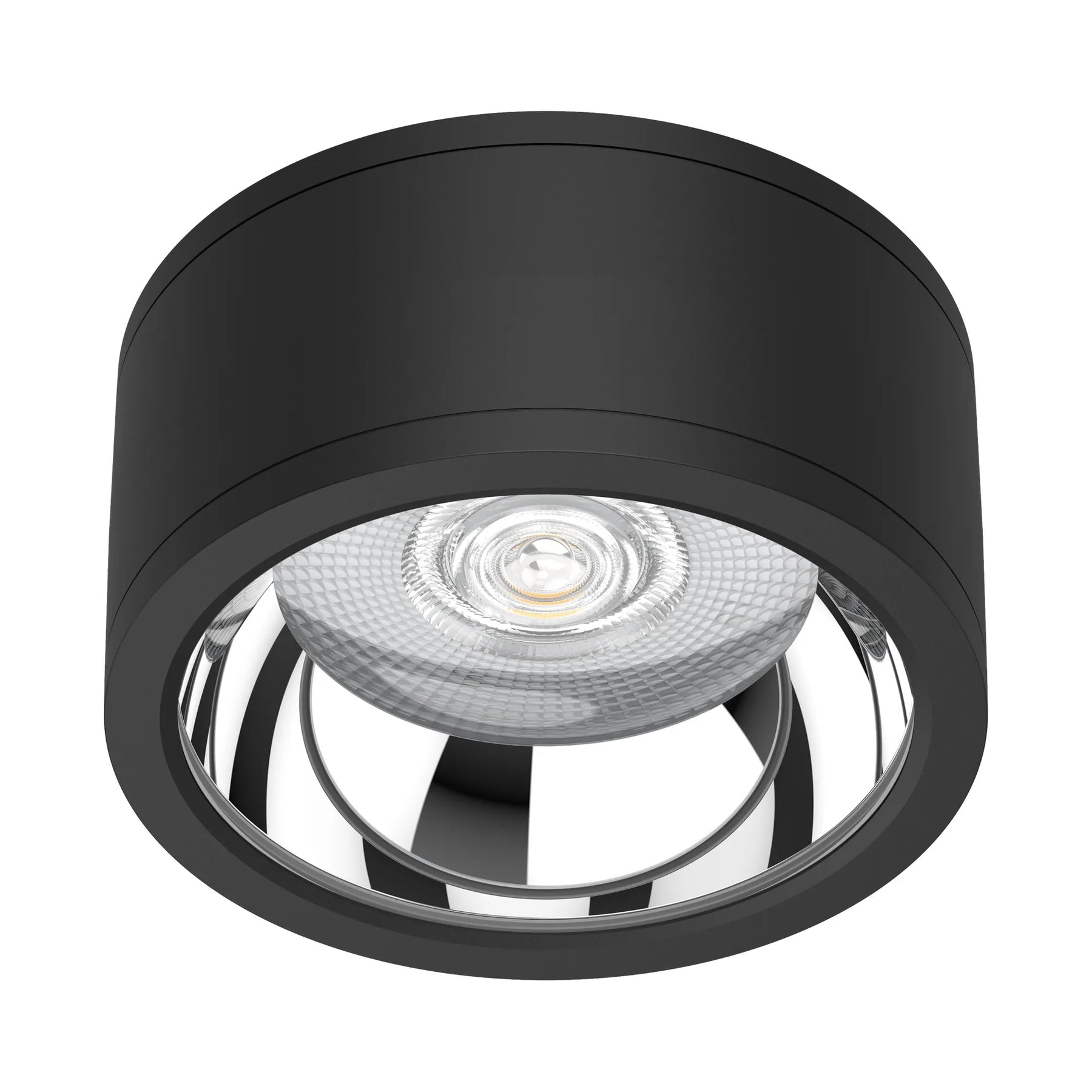

Westgate 40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K/3500K/5000K Selectable Black

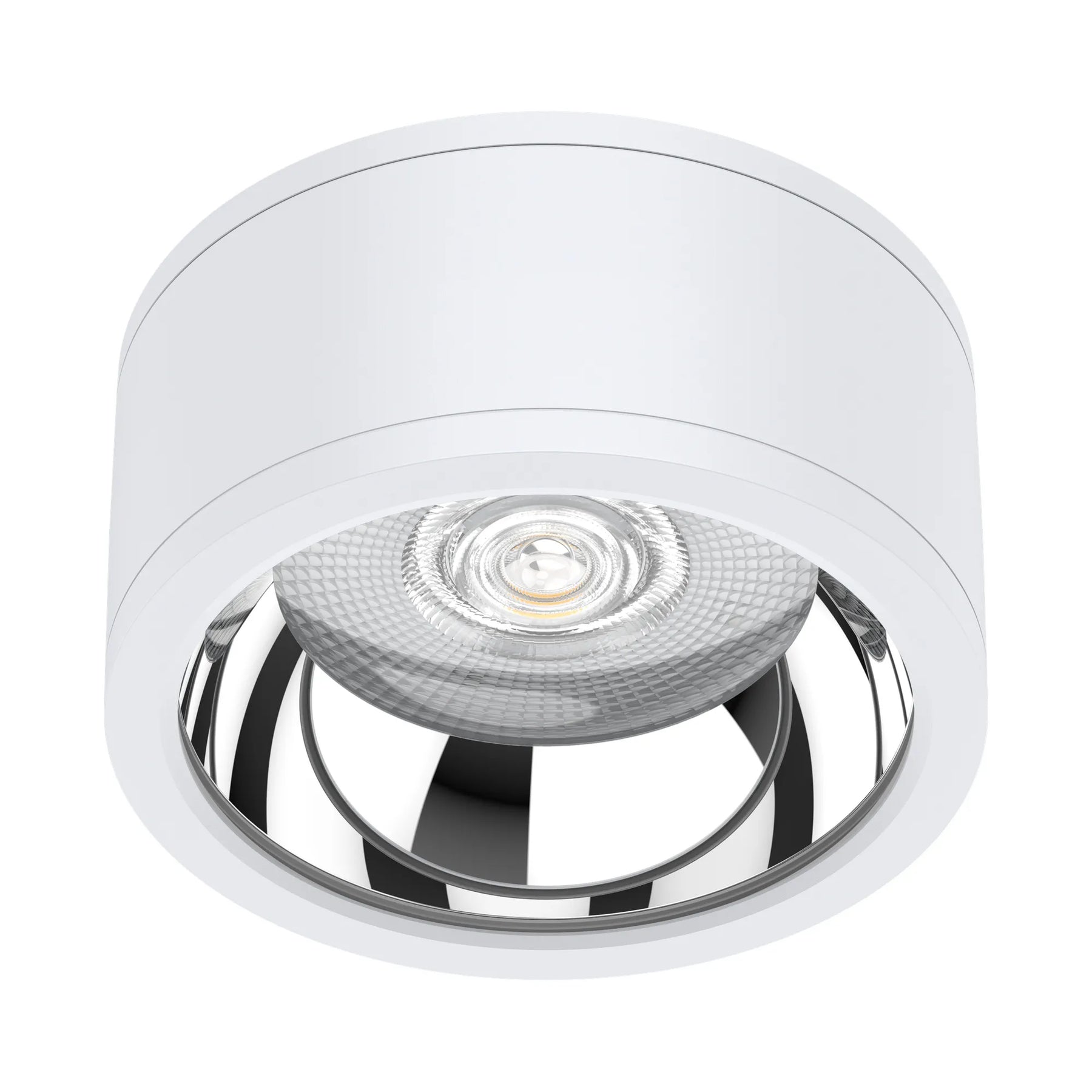

Westgate 40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K/3500K/5000K Selectable White

Westgate 40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K/3500K/5000K

Damp Location Rated, ETL Certified, IP40, IP65, Wet Location Rated

Price

Color Temp

Selectable

Finish Color

Black

White

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":67677157425396,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"CMCW10-COB-40W-MCT-36D-D-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":55378189910260,"product_id":15411129450740,"position":1,"created_at":"2026-10-01T16:16:25-04:00","updated_at":"2026-10-01T16:16:26-04:00","alt":"Westgate 40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW10-COB-40W-MCT-36D-D-BK.webp?v=1790885786","variant_ids":[67677157425396]},"available":true,"name":"40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":34138,"weight":2948,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332743","featured_media":{"alt":"Westgate 40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","id":46372780376308,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW10-COB-40W-MCT-36D-D-BK.webp?v=1790885786"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67677157458164,"title":"Selectable \/ White","option1":"Selectable","option2":"White","option3":null,"sku":"CMCW10-COB-40W-MCT-36D-D-WH","requires_shipping":true,"taxable":true,"featured_image":{"id":55378190237940,"product_id":15411129450740,"position":2,"created_at":"2026-10-01T16:16:37-04:00","updated_at":"2026-10-01T16:16:38-04:00","alt":"Westgate 40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable White","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW10-COB-40W-MCT-36D-D-WH.webp?v=1790885798","variant_ids":[67677157458164]},"available":true,"name":"40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ White","public_title":"Selectable \/ White","options":["Selectable","White"],"price":34138,"weight":2948,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332620","featured_media":{"alt":"Westgate 40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable White","id":46372780736756,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW10-COB-40W-MCT-36D-D-WH.webp?v=1790885798"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":67677157425396,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"CMCW10-COB-40W-MCT-36D-D-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":55378189910260,"product_id":15411129450740,"position":1,"created_at":"2026-10-01T16:16:25-04:00","updated_at":"2026-10-01T16:16:26-04:00","alt":"Westgate 40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW10-COB-40W-MCT-36D-D-BK.webp?v=1790885786","variant_ids":[67677157425396]},"available":true,"name":"40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":34138,"weight":2948,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332743","featured_media":{"alt":"Westgate 40 Watt 120-277V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","id":46372780376308,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW10-COB-40W-MCT-36D-D-BK.webp?v=1790885786"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

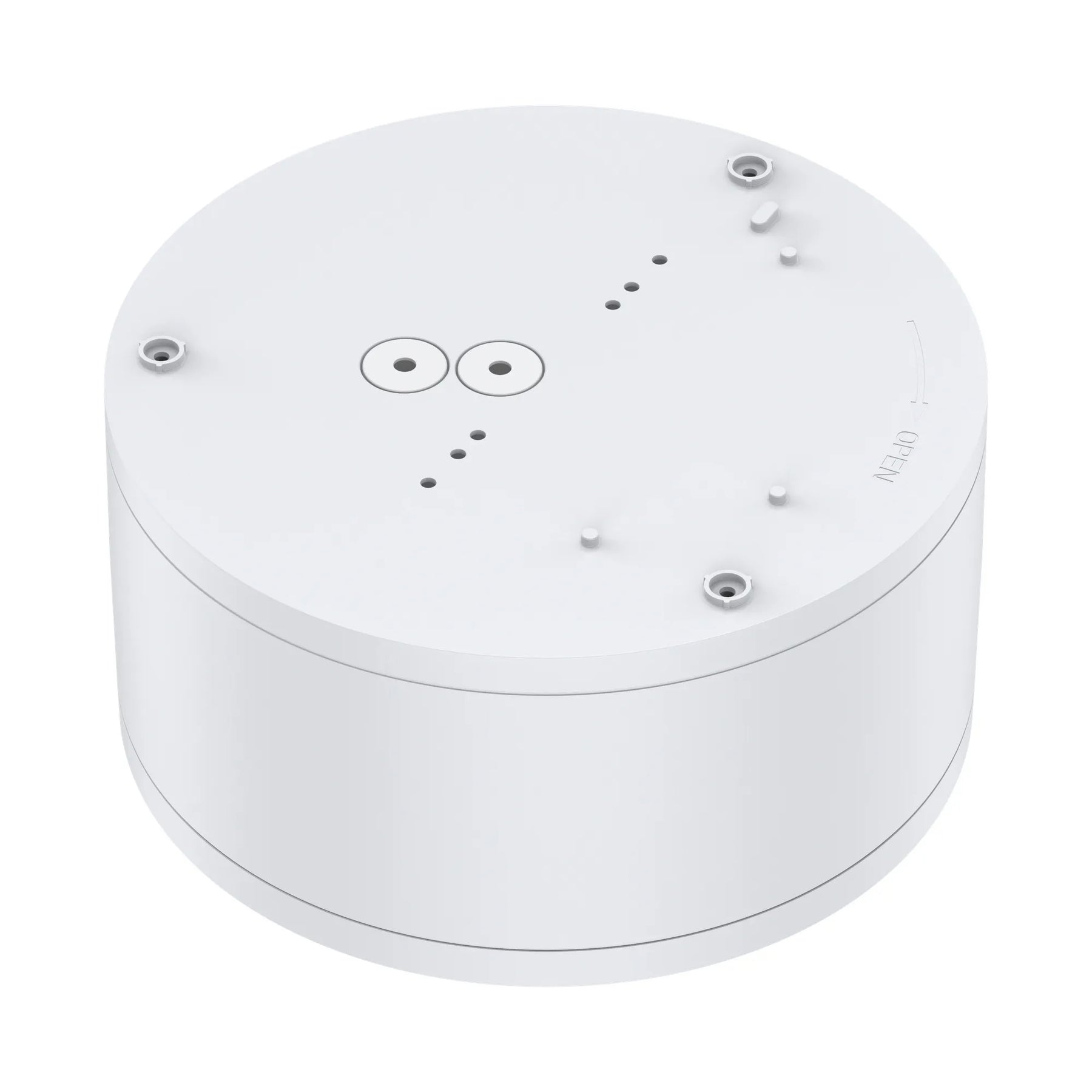

Westgate part # CMCW10-COB-40W-MCT-36D-D-XX (available in Black-BK and White-WH) is a 40 watt, 120V dimmable COB series LED surface mount cylinder downlight with selectable 3000K, 3500K, and 5000K color temperatures, switched from a selector on the back of the fixture. It's 0-10V dimmable at 120-277V, built on an aluminum base with a durable polycarbonate (PC) lens, and carries ETL listing with IP65 wet-location and IP40 damp-location ratings for flexible placement indoors or in covered outdoor spots.

This downlight delivers 3,850 lumens at 96 LPW efficacy, with an 80 CRI and a 36° beam angle for a focused, even wash of light. It's rated for operating temperatures from -13ºF to 113ºF and for 70,000 hours of rated life, backed by a 7-year warranty. The compact 8.43” (D) x 7.087” (W) x 4.69” (H) housing makes it an easy fit for ceilings where a clean, low-profile surface mount is needed.

24° OPT-CMCW3-COB-24D and 60° OPT-CMCW3-COB-60D optic accessories are available as optional add-ons, sold separately, to fine-tune the beam spread for the space.

A factory-installed internal EM backup option is available. Please contact us for information.

Specifications

Manufacturer	Westgate
Finish Color	Black	White
MPN	CMCW10-COB-40W-MCT-36D-D-BK	CMCW10-COB-40W-MCT-36D-D-WH
SKU	CMCW10-COB-40W-MCT-36D-D-BK	CMCW10-COB-40W-MCT-36D-D-WH
UPC	840378332743	840378332620
Lighting Technology	LED
Wattage	40 Watts
Voltage	120-277 Volt
Color Temperature (Kelvin)	3000K/3500K/5000K
Lumens	3,850 Lumens
Efficiency (Lumens Per Watt)	96 LPW
Dimmable	Triac Dimmable
Beam Angle	36°
Rated Life	70,000 Hours
CRI (Color Rendering Index)	80 CRI
Housing	Aluminum Base
Lens	Polycarbonate (PC)
Bug Rating	B2-U0-G0
Operating Temperature	-13ºF to 113ºF
Dimensions	8.43” (D) x 7.087” (W) x 4.69” (H)
Environment	Damp & Wet location rated
Certifications	ETL Certified, IP40, IP65
Warranty	7 Years

Documents

Westgate 40 Watt COB Series LED Surface Mount Cylinder Downlight Specification Sheet - Black

Westgate 40 Watt COB Series LED Surface Mount Cylinder Downlight Specification Sheet - White
