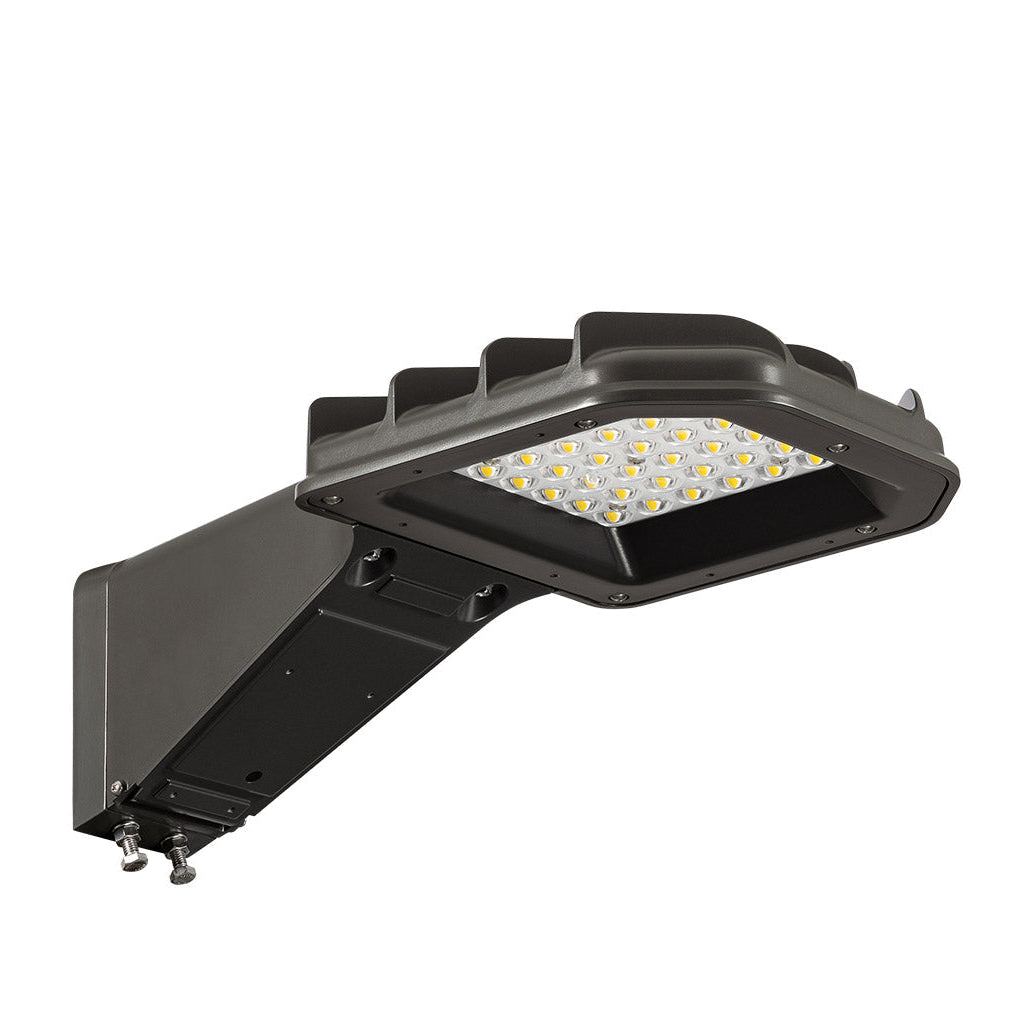

The Atlas Eagle Series American Made second generation Area Light is an advanced and innovative lighting solution that is designed to provide superior illumination for outdoor spaces. With its user-selectable lumen output, this area light is a cost-effective and energy-efficient alternative to traditional lighting fixtures, effectively replacing three standard fixtures with just one.
Crafted with a die-cast aluminum housing, the Eagle Series Area Light is engineered with external airflow fins and a separate driver compartment, which helps to reduce operating temperatures, ensuring optimal durability and longevity. This advanced lighting solution comes with a wide array of optical patterns and configurations, making it the perfect fit for virtually any area lighting application.
Single-piece acrylic optics of the Eagle Series Area Light ensures smooth and consistent light coverage, making it the perfect choice for illuminating outdoor spaces with high-quality lighting. The easy mount bracket included in the package makes installation quick and simple, and the light is compatible with any style pole. For even greater flexibility, tenon and other mounting accessories are also available.
The Eagle Series Wattage Selectable Small LED Area Lights offer maximum versatility, with Type V optics, and three-color temperature options - 4000K cool white, 4500K cool white, and 5000K daylight. With selectable wattage at 42W, 63W, and 86W, these lights offer lumen packages ranging from 5,812 to 11,319 lumens. The lights are compatible with 120-277 Universal Voltage, and come with 0-10V Dimming capabilities, allowing for even greater customization.
Applications:
| Manufacturer | Atlas Lighting | ||
| MPN | SLPSS6-12LT5 | ||
| SKU | SLPSS6-12LT5 | ||
| UPC | 765364034411 | ||
| Lighting Technology | LED | ||
| Color Temperature (Kelvin) | 4000K Cool White | 4500K Cool White | 5000K Daylight |
| DLC Product ID | PQAWJSQJ | P476XOX4 | PPIJHSF5 |
| Wattage | 42 Watts | 63 Watts | 86 Watts |
| Lumens | 5812 Lumens | 8614 Lumens | 11319 Lumens |
| Efficiency (Lumens Per Watt) | 138 lm/W | 136 lm/W | 132 lm/W |
| Metal Halide Equivalent | 175W MH | 175W MH | 250W MH |
| Voltage | 120-277V | ||
| Dimmable | Yes, 0-10V Dimming | ||
| Rated Life | 200,000 Hours | ||
| CRI (Color Rendering Index) | 70 CRI | ||
| Light Distribution | Type V | ||
| Finish Color | Bronze | ||
| Housing | Die-Cast Aluminum | ||
| Lens | Polycarbonate Lens | ||
| Mounting | Easy Installation to Pole Mount | ||
| Dimensions | 19.09" L x 10.62" W x 2.16" H | ||
| Environment | IP65 Rated, Wet Location | ||
| Certifications | BAA Compliant, cuLus, Made in USA, DLC Listed | ||
| Warranty | 5 Year Limited | ||
Atlas Eagle Series Small LED Area Light Specification Sheet
Atlas Eagle Series Small LED Area Light Installation Instructions
Atlas Type V Eagle Series Small LED Area Light 4000K DLC Product Listing
Atlas Type V Eagle Series Small LED Area Light 4500K DLC Product Listing
Atlas Type V Eagle Series Small LED Area Light 5000K DLC Product Listing
