45/60/75 Watt Adjustable LED Wall Pack Fixture 3000/4000/5000K

Keystone Technologies SKU: KT-WPLED75PS-M3-8CSB-VDIM

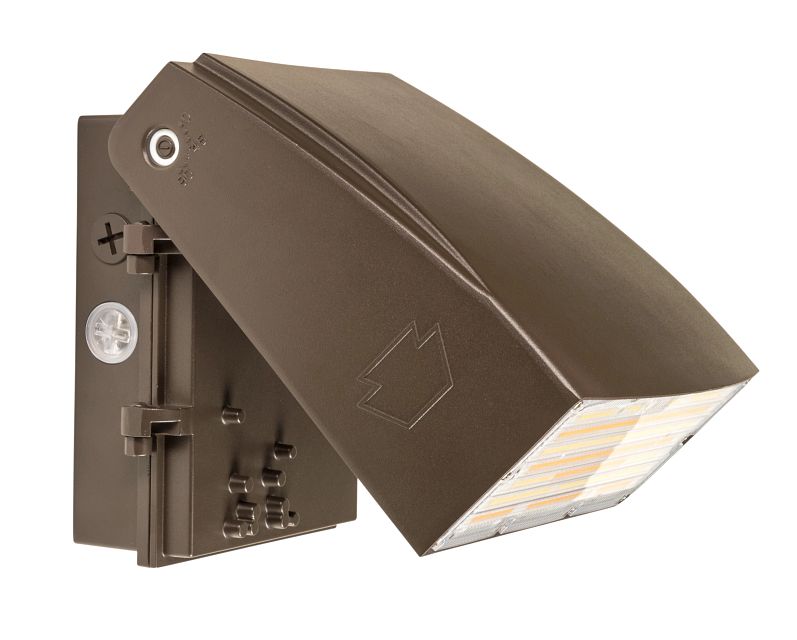

Keystone Technologies 45/60/75 Watt Adjustable LED Wall Pack Fixture 3000/4000/5000K Selectable Bronze

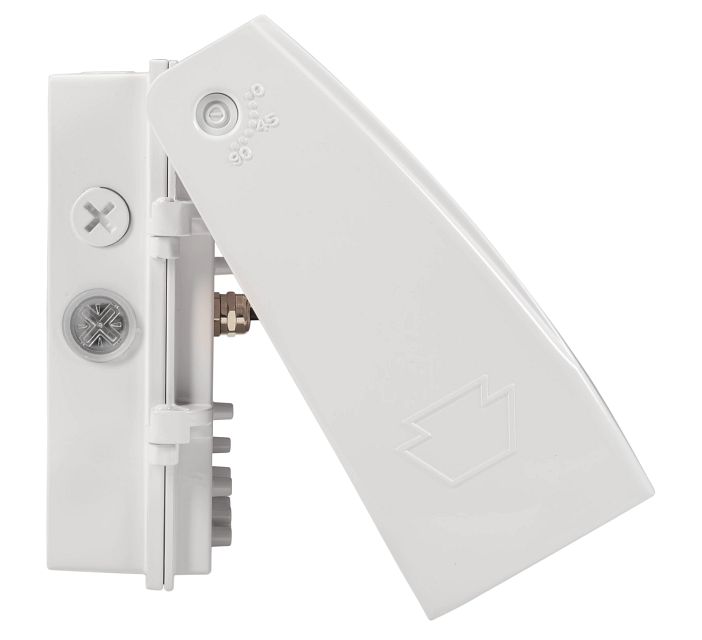

Keystone Technologies 45/60/75 Watt Adjustable LED Wall Pack Fixture 3000/4000/5000K Selectable White

45/60/75 Watt Adjustable LED Wall Pack Fixture 3000/4000/5000K

Keystone Technologies SKU: KT-WPLED75PS-M3-8CSB-VDIM
  • IP65, DLC Listed
Regular price $153.76
/
Color Temp
Finish Color
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Keystone's adjustable wall pack ensures maximum efficiency by adjusting the fixture up to 90 degrees in 15 different positions, providing optimal lighting for hard-to-reach areas. This versatile fixture offers adjustable outputs and a built-in photocell. With 3 power outputs and 3 color temperatures, all easily controlled with a simple switch, you can customize the brightness and temperature to fit your specific requirements.

Keystone's drivers are fully tested at the end of the production line, making them sturdy and dependable. Equipped with 0-10V dimming and strong surge protection, they offer enhanced versatility and durability. For easy access, simply open the convenient compartment door. Built with a robust, die-cast aluminum casing and an IP65 rating, XFit wall packs are designed to withstand harsh weather conditions, be it rain, cold, or extreme heat. They are specifically engineered for outdoor usage.

These are the Keystone Technologies KT-WPLED75PS-M3-8CSB-VDIM(-W). This Keystone wattage and color selectable LED Adjustable Wall Pack fixture consumes 45/60/75 watts of 120-277 volt energy. They generate between 6,319-10,875 lumens (up to 125-155 lumens per watt), have a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation, a selectable color temperature of either 3000K Warm White, 4000K Cool White or 5000K Daylight and a CRI of 80. The wall lights are DLC Premium Listed. These LED adjustable wall packs have a 0-10V dimmable configuration.

Manufacturer Keystone Technologies
Finish Color Bronze White
MPN KT-WPLED75PS-M3-8CSB-VDIM KT-WPLED75PS-M3-8CSB-VDIM-W
SKU KT-WPLED75PS-M3-8CSB-VDIM KT-WPLED75PS-M3-8CSB-VDIM-W
UPC 843654141862 843654141879
Lighting Technology LED
Voltage 120-277V
Dimmable Yes, 0-10V Dimming
Beam Angle 0-90 Degrees (Adjustable)
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
THD (Total Harmonic Distortion) <20%
Housing Die Cast Aluminum
Metal Halide Equivalent 320 Watt
Operating Temperature -40°C/-40°F to 50°C/122°F
Certifications IP65 Rated, DLC Listed
DLC Product ID S-1HRBW6
Environment Wet Location
Warranty 10 Year Limited


Wattage 45 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 6,319 Lumens 6,975 Lumens 6,750 Lumens
Efficiency (Lumens Per Watt) 140 LPW 155 LPW 150 LPW


Wattage 60 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 8,100 Lumens 9,000 Lumens 8,700 Lumens
Efficiency (Lumens Per Watt) 135 LPW 150 LPW 145 LPW


Wattage 75 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 9,375 Lumens 10,875 Lumens 10,125 Lumens
Efficiency (Lumens Per Watt) 125 LPW 145 LPW 135 LPW


Keystone Adjustable LED Wall Pack Fixture Specification Sheet - Bronze

Keystone Adjustable LED Wall Pack Fixture Specification Sheet - White

Keystone Adjustable LED Wall Pack Fixture DLC Product Listing
