Name: 45/60/80 Watt 120-277V Selectable LED Semi Cutoff Wall Pack 3000K/4000K/5000K
Brand: Satco
SKU: 65-942
Price: 144.9 USD
Availability: InStock

45/60/80 Watt 120-277V Selectable LED Semi Cutoff Wall Pack 3000K/4000K/5000K

DLC Premium Listed, IP65, Wet Location Rated

Price

Color Temp

Selectable

Finish Color

Bronze

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":48480301351156,"title":"Selectable \/ Bronze","option1":"Selectable","option2":"Bronze","option3":null,"sku":"65-942","requires_shipping":true,"taxable":true,"featured_image":{"id":52496118972660,"product_id":9495660265716,"position":1,"created_at":"2026-06-08T13:07:41-04:00","updated_at":"2026-06-08T13:07:42-04:00","alt":null,"width":700,"height":700,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/65-942.jpg?v=1780938462","variant_ids":[48480301351156]},"available":true,"name":"45\/60\/80 Watt 120-277V Selectable LED Semi Cutoff Wall Pack 3000K\/4000K\/5000K - Selectable \/ Bronze","public_title":"Selectable \/ Bronze","options":["Selectable","Bronze"],"price":14490,"weight":2241,"compare_at_price":null,"inventory_management":"shopify","barcode":"045923410284","featured_media":{"alt":null,"id":43526969721076,"position":1,"preview_image":{"aspect_ratio":1.0,"height":700,"width":700,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/65-942.jpg?v=1780938462"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":48480301351156,"title":"Selectable \/ Bronze","option1":"Selectable","option2":"Bronze","option3":null,"sku":"65-942","requires_shipping":true,"taxable":true,"featured_image":{"id":52496118972660,"product_id":9495660265716,"position":1,"created_at":"2026-06-08T13:07:41-04:00","updated_at":"2026-06-08T13:07:42-04:00","alt":null,"width":700,"height":700,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/65-942.jpg?v=1780938462","variant_ids":[48480301351156]},"available":true,"name":"45\/60\/80 Watt 120-277V Selectable LED Semi Cutoff Wall Pack 3000K\/4000K\/5000K - Selectable \/ Bronze","public_title":"Selectable \/ Bronze","options":["Selectable","Bronze"],"price":14490,"weight":2241,"compare_at_price":null,"inventory_management":"shopify","barcode":"045923410284","featured_media":{"alt":null,"id":43526969721076,"position":1,"preview_image":{"aspect_ratio":1.0,"height":700,"width":700,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/65-942.jpg?v=1780938462"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

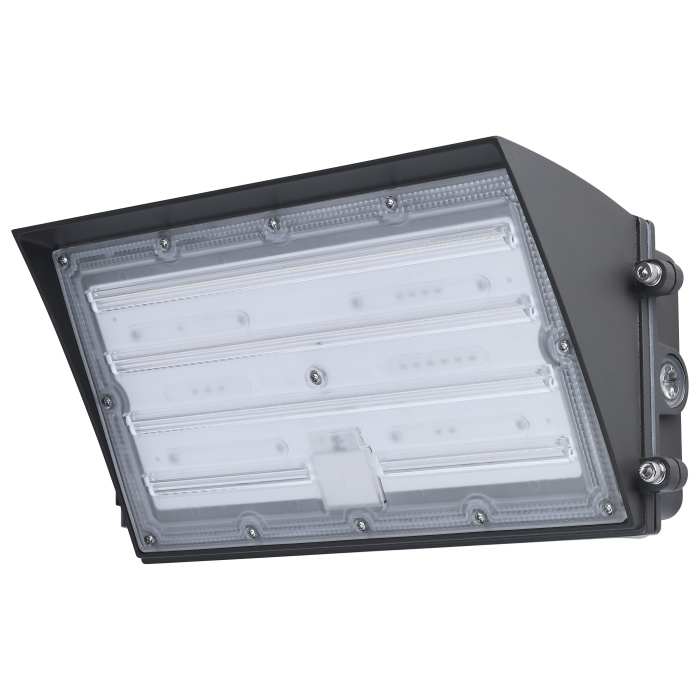

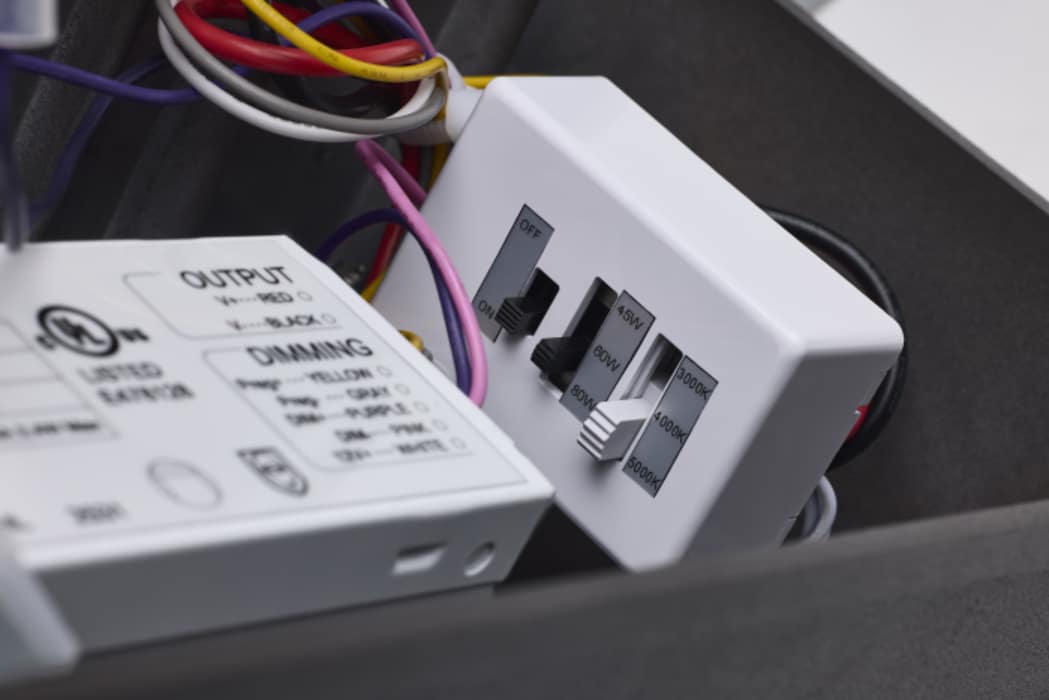

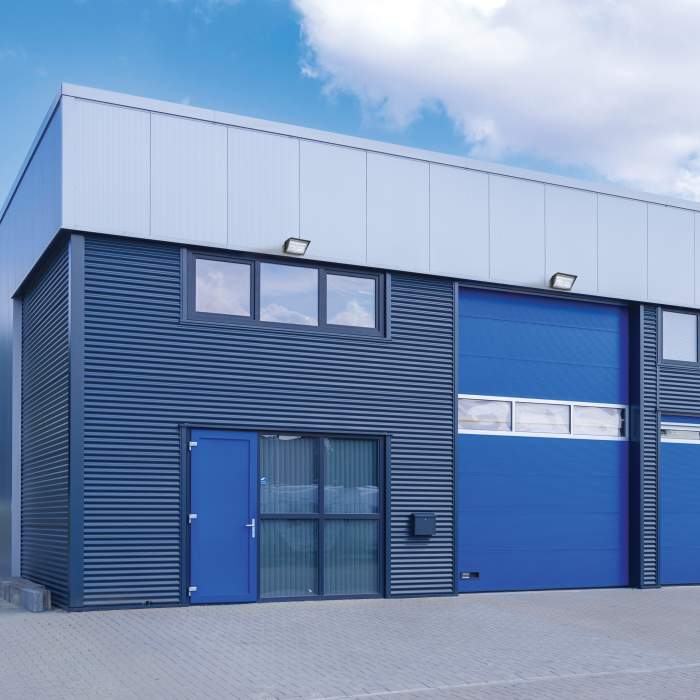

Designed to provide broad, effective illumination for commercial exteriors, this LED Semi Cutoff Wall Pack combines performance, flexibility, and durability in one dependable solution. Field-selectable technology allows for on-site customization of light levels and color temperature, making it easy to adapt the fixture to the needs of the space. A built-in, bypassable photocell enables automatic dusk-to-dawn operation, while dimmer compatibility offers additional energy management options. The rugged die-cast aluminum housing with a corrosion-resistant bronze finish and impact-resistant polycarbonate lens ensures long-lasting reliability in demanding outdoor environments. With its semi-cutoff distribution, this fixture delivers wider forward light spread and increased vertical illumination.

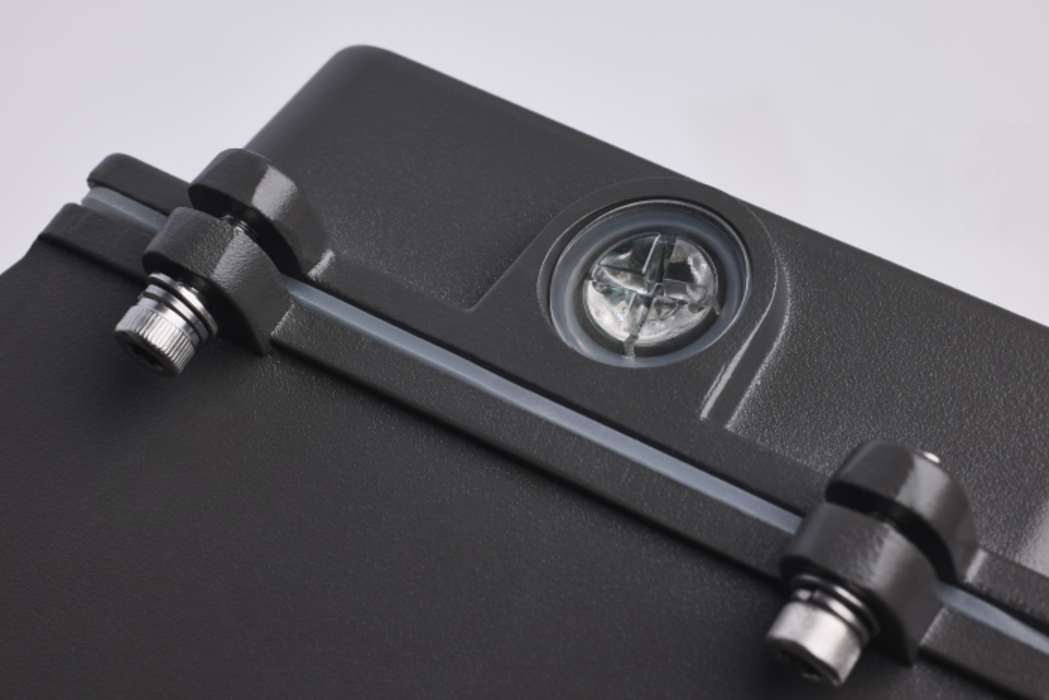

The Satco 65-942 operates on 120–277V input and offers field-selectable output of 45, 60, or 80 watts with a maximum efficacy of up to 182 LPW and a peak lumen output of 12,436 lumens. Color temperature is selectable among 3000K, 4000K, and 5000K, with a CRI of 80+. The fixture is 0-10V dimmable down to 20% and includes a bypassable integrated photocell for dusk-to-dawn control. A 4kV surge protection rating safeguards the fixture against voltage transients in demanding electrical environments.

Built for tough outdoor conditions, the 65-942 carries a Wet location rating with an IP65 ingress protection rating and an IK08 impact resistance rating. The die-cast aluminum housing with bronze finish and impact-resistant polycarbonate lens are engineered for long-term durability across an ambient operating temperature range of -40°C (-40°F) to +40°C (+104°F). The wall-mount design delivers a 55°×105° beam spread, and the full cutoff optical design minimizes glare and light trespass. It is rated for 50,000 hours of functional life and backed by a 5-year warranty.

The 65-942 is a direct replacement for 100W–250W HID fixtures, making it an efficient upgrade for existing installations. It is UL Listed, RoHS compliant, and DLC Premium Listed, qualifying it for utility rebate programs.

Specifications

Manufacturer	Satco
MPN	65-942
SKU	65-942
UPC	045923410284
DLC Product ID	S-VC4ZR0
Lighting Technology	LED
Wattage	45/60/80 Watts
Voltage	120-277V
Color Temperature (Kelvin)	3000K/4000K/5000K
Lumens	7,243-12,436 Lumens
Dimmable	Yes, 0-10V
Beam Angle	55°x105°
Rated Life	50,000 Hours
CRI (Color Rendering Index)	80 CRI
Finish Color	Bronze
Power Factor	>0.9
Housing	Die-Cast Aluminum
Lens	Impact Resistant Polycarbonate
Lens Finish	Opaque
Operating Temperature	-40F to +104F (-40C to +40C)
Dimensions	12.62” W x 5.83” H x 5.26” D
Bug Rating	B1-U4-G3
Environment	Wet Location
Certifications	FCC, IP65, DLC Premium Listed, RoHS, UL Listed
Warranty	5 Years

Documents

Satco 45/60/80 Watt Selectable LED Semi Cutoff Wall Pack Specification Sheet

Satco 45/60/80 Watt Selectable LED Semi Cutoff Wall Pack Installation Instructions

Satco 45/60/80 Watt Selectable LED Semi Cutoff Wall Pack DLC Product Listing
