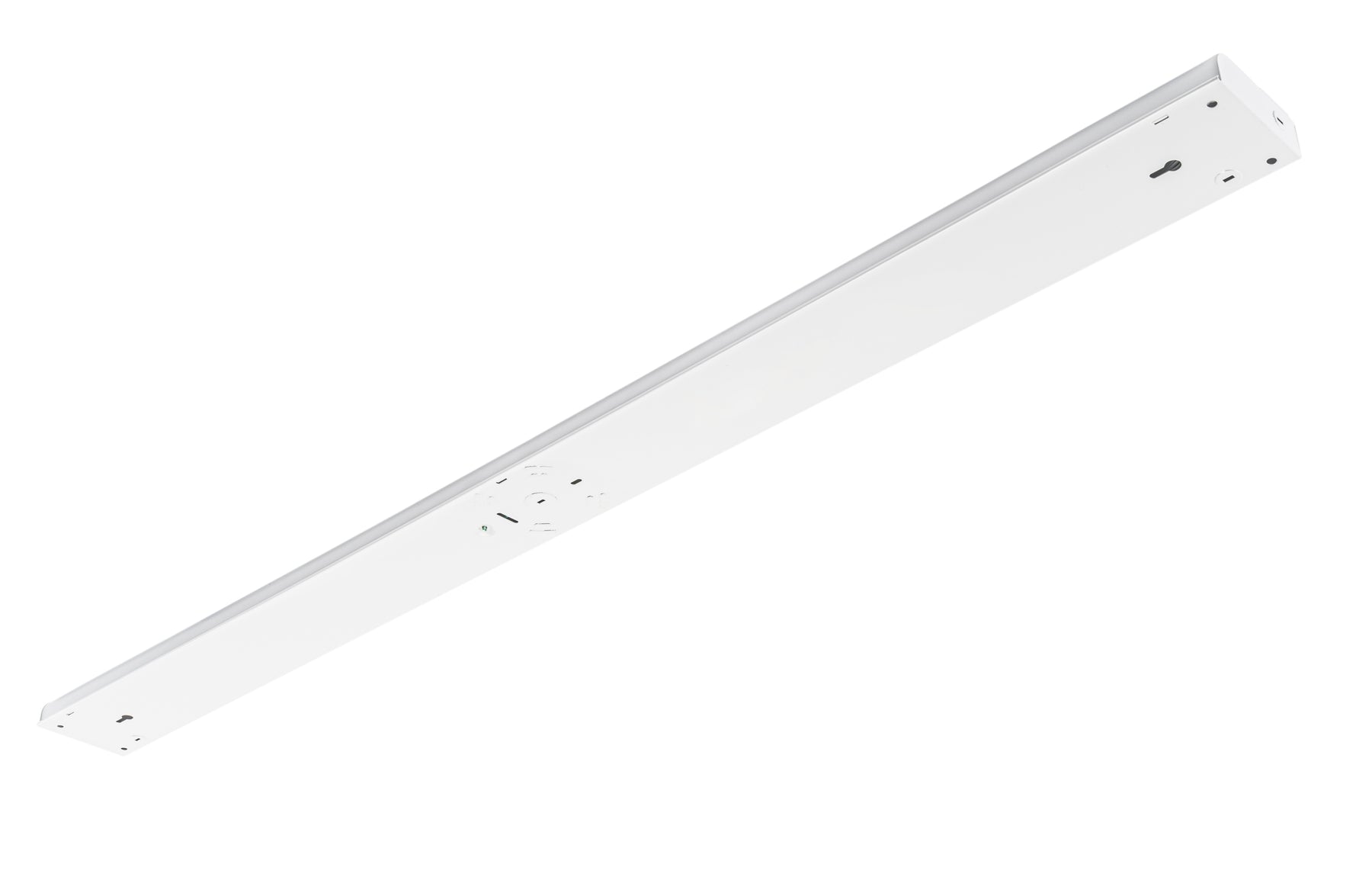

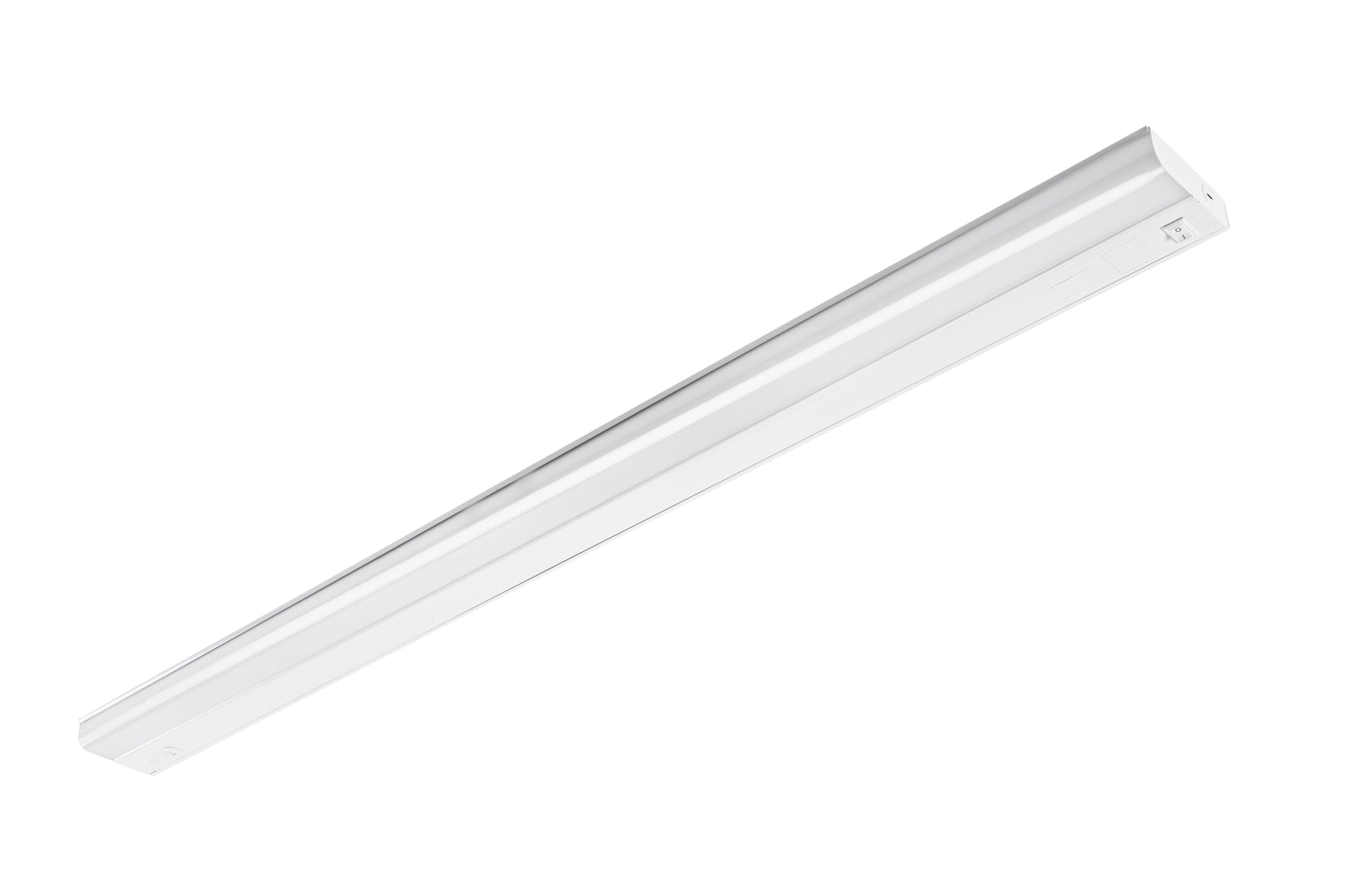

The Keystone KT-UCLED20-46A-9CSF-FDIM is a 46 inch, 20 watt, 120V dimmable LED under cabinet fixture engineered for retail displays, gondolas, coves, and under-cabinet applications where precise, adjustable lighting is essential. Powered by Keystone's Color Select technology, this fixture lets you dial in the perfect ambiance by switching between five color temperatures - 2700K, 3000K, 3500K, 4000K, and 5000K - directly from the front-mounted power and selector switch, no tools required.
Delivering up to 1,800 lumens at 4000K with a 90 CRI, this fixture renders colors with exceptional accuracy and clarity. Output varies by color temperature: 1,500 lumens at 2700K (75 lm/W), 1,660 lumens at 3000K (83 lm/W), 1,800 lumens at 3500K (90 lm/W), 1,800 lumens at 4000K (90 lm/W), and 1,700 lumens at 5000K (85 lm/W). The integrated TRIAC dimming LED driver provides smooth, flicker-free dimming from 10% to 100% (forward phase), giving you full control over light levels to suit any environment. A frosted polycarbonate lens diffuses light evenly, eliminating harsh glare across your display or workspace.
Installation is straightforward thanks to tool-less access to the wireway and multiple knockout options at the back, side, and rear for flexible conduit routing. The fixture is UL Listed for both Dry and Damp Locations, rated for ambient operating temperatures from −4°F to 113°F (−20°C to 45°C), and built to last with an LED lifetime of L70 >50,000 hours at 25°C fixture ambient. FCC Part 15, Subpart B, Class B compliant. Backed by a 5 year warranty for long-term peace of mind. Available in White finish; Bronze finish available for special order (lead times apply, contact us for details).
