469/584/783 Watt 120-277V LED NEMA 5x5 Distribution Sports Lighting Fixture 5000K

Atlas Lighting SKU: SPTS75-110L550
469/584/783 Watt 120-277V LED NEMA 5x5 Distribution Sports Lighting Fixture 5000K
469/584/783 Watt 120-277V LED NEMA 5x5 Distribution Sports Lighting Fixture 5000K
469/584/783 Watt 120-277V LED NEMA 5x5 Distribution Sports Lighting Fixture 5000K
469/584/783 Watt 120-277V LED NEMA 5x5 Distribution Sports Lighting Fixture 5000K
469/584/783 Watt 120-277V LED NEMA 5x5 Distribution Sports Lighting Fixture 5000K
469/584/783 Watt 120-277V LED NEMA 5x5 Distribution Sports Lighting Fixture 5000K
469/584/783 Watt 120-277V LED NEMA 5x5 Distribution Sports Lighting Fixture 5000K
469/584/783 Watt 120-277V LED NEMA 5x5 Distribution Sports Lighting Fixture 5000K

469/584/783 Watt 120-277V LED NEMA 5x5 Distribution Sports Lighting Fixture 5000K

Atlas Lighting SKU: SPTS75-110L550
  • BAA Compliant, DLC Listed, IP66, Made in USA, Wet Location Rated
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

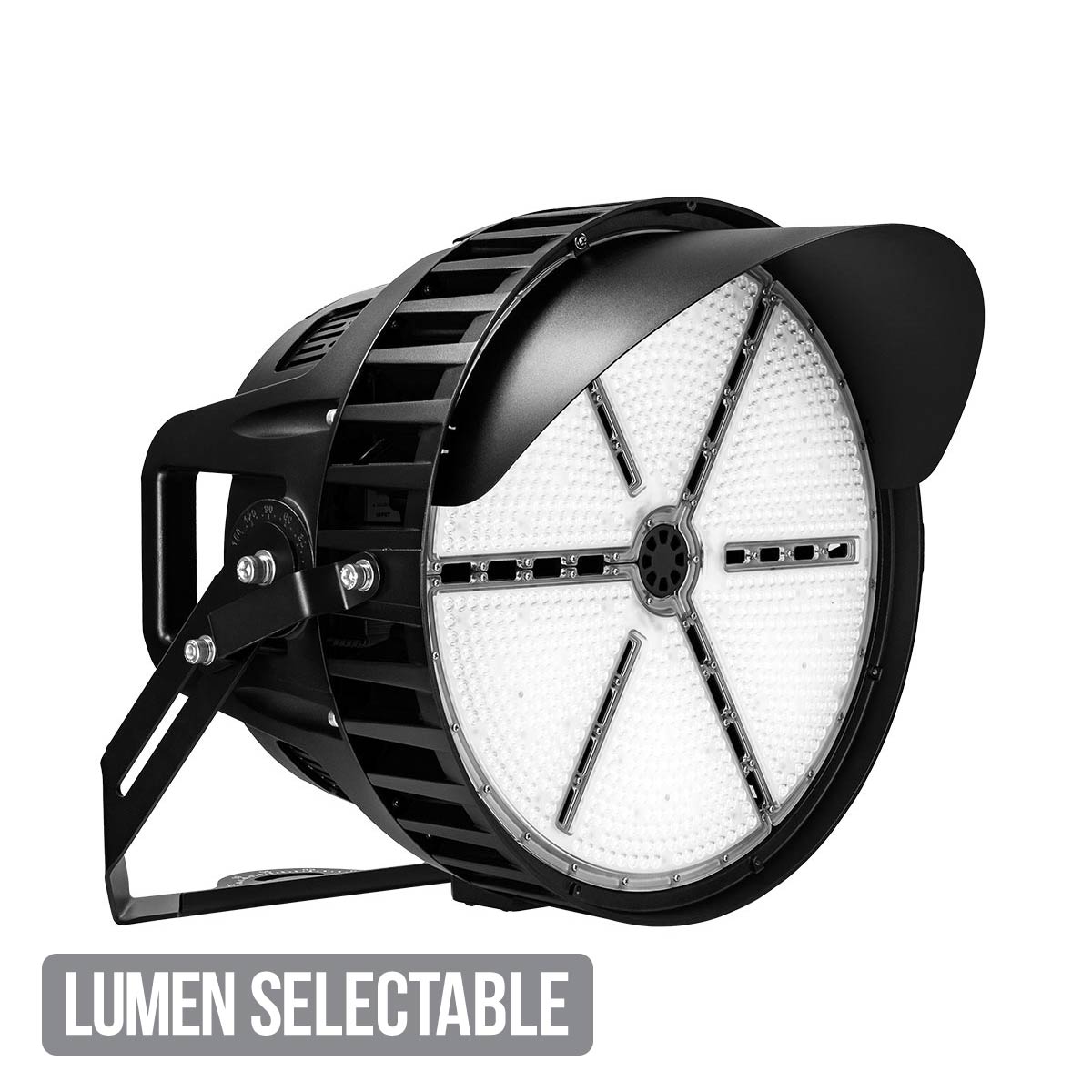

The Patriot Sports Light changes the game with unmatched performance, efficiency, and ease of installation. Manufactured in the USA to high-quality standards, this heavy-duty fixture features precision optics that produce a 4 different beam spreads to suit a variety of sports lighting applications.

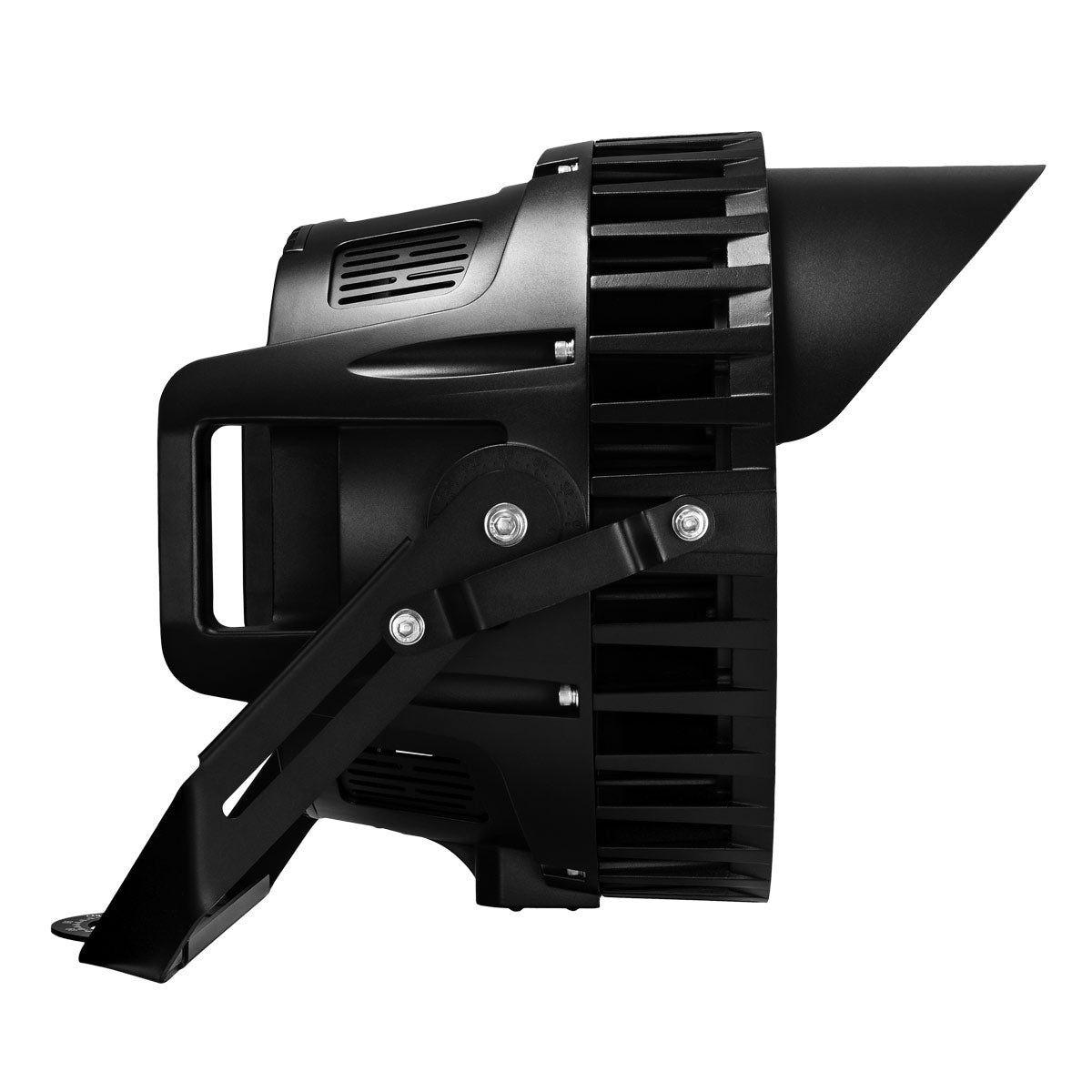

The Atlas SPTS75-110L550 120-277V LED 469/584/783 Selectable Wattage Type Nema 5x5 light distribution Sports Lighting Fixture is an ideal choice for outdoor lighting. Its heavy-duty die cast aluminum housing and black polyester powder coat finishing process to withstand extreme weather changes without cracking or peeling. With 74,180-110,752 lumens and 5000K daylight color temperature, this fixture is designed to enhance sports venues with bright, quality lighting. Heavy-Duty Yoke mount is pre-installed, and optional Tenon Top Adapter is available.

The High-Performance driver features overvoltage, under-voltage, short-circuit and over temperature protections. This DLC Listed fixture has field replaceable 20kV surge protection device that meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2) Manufactured and tested in the USA and qualifies for the Buy American Act, this fixture has a rated life of 100,000 hours and carries a 5-year warranty.

Specifications
Manufacturer Atlas Lighting
MPN SPTS75-110L550
SKU SPTS75-110L550
UPC 765364065378
DLC Product ID S-DBVC7F
Light Distribution NEMA 5x5
Wattage 469/584/783 Watts
Lumens 74,180/88,487/110,752 Lumens
Efficiency (Lumens Per Watt) 153/148/136 LPW
Finish Color Black
Lighting Technology LED
Color Temperature (Kelvin) 5000K
Dimmable Yes, 0-10V Dimming
Rated Life 100,000 Hours
CRI (Color Rendering Index) 70 CRI
Mounting Yoke Mount (Included)
Housing Die-Cast Aluminum
Operating Temperature -45°C/-40°F to 45ºC/113ºF
Dimensions 21.2 L x19.5" W x 18" D
Certifications Buy American Compliant, DLC Listed, uCLus, Made in USA
Environment IP66 Wet Location Rated
Warranty 5 Year Warranty
Documents

Atlas Wattage Selectable NEMA 5x5 LED Sports Lighting Fixture Specification Sheet

Atlas Wattage Selectable NEMA 5x5 LED Sports Lighting Fixture Installation Instructions

Atlas Wattage Selectable NEMA 5x5 LED Sports Lighting Fixture DLC Product Listing
