Name: 55/70/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K/4000K/5000K
Brand: Keystone Technologies
SKU: KT-WPLED80PS-M1-8CSB-VDIM
Price: 149.46 USD
Availability: InStock

Keystone Technologies 55/70/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K/4000K/5000K Selectable Bronze

Keystone Technologies 55/70/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K/4000K/5000K

Keystone Technologies 55/70/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K/4000K/5000K Selectable White

DLC Premium Listed, IP65, Wet Location Rated

Price

Color Temp

Selectable

Finish Color

Bronze

White

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":48894886609140,"title":"Selectable \/ Bronze","option1":"Selectable","option2":"Bronze","option3":null,"sku":"KT-WPLED80PS-M1-8CSB-VDIM","requires_shipping":true,"taxable":true,"featured_image":{"id":53391510012148,"product_id":9560715985140,"position":1,"created_at":"2026-07-22T13:38:22-04:00","updated_at":"2026-07-22T13:38:24-04:00","alt":"Keystone Technologies 55\/70\/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K\/4000K\/5000K Selectable Bronze","width":3877,"height":3261,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/KeystoneKT-WPLEDXXPSXX-M1-8CSB-VDIM_3.jpg?v=1784741904","variant_ids":[48894886609140]},"available":true,"name":"55\/70\/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K\/4000K\/5000K - Selectable \/ Bronze","public_title":"Selectable \/ Bronze","options":["Selectable","Bronze"],"price":14946,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"843654177434","featured_media":{"alt":"Keystone Technologies 55\/70\/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K\/4000K\/5000K Selectable Bronze","id":44406804054260,"position":1,"preview_image":{"aspect_ratio":1.189,"height":3261,"width":3877,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/KeystoneKT-WPLEDXXPSXX-M1-8CSB-VDIM_3.jpg?v=1784741904"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48894886641908,"title":"Selectable \/ White","option1":"Selectable","option2":"White","option3":null,"sku":"KT-WPLED80PS-M1-8CSB-VDIM-W","requires_shipping":true,"taxable":true,"featured_image":{"id":53391509913844,"product_id":9560715985140,"position":4,"created_at":"2026-07-22T13:38:22-04:00","updated_at":"2026-07-22T13:38:24-04:00","alt":"Keystone Technologies 55\/70\/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K\/4000K\/5000K Selectable White","width":4188,"height":3006,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/KeystoneKT-WPLED80PS-M1-8CSB-VDIM-W_1.jpg?v=1784741904","variant_ids":[48894886641908]},"available":true,"name":"55\/70\/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K\/4000K\/5000K - Selectable \/ White","public_title":"Selectable \/ White","options":["Selectable","White"],"price":14946,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"843654177441","featured_media":{"alt":"Keystone Technologies 55\/70\/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K\/4000K\/5000K Selectable White","id":44406803955956,"position":4,"preview_image":{"aspect_ratio":1.393,"height":3006,"width":4188,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/KeystoneKT-WPLED80PS-M1-8CSB-VDIM-W_1.jpg?v=1784741904"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":48894886609140,"title":"Selectable \/ Bronze","option1":"Selectable","option2":"Bronze","option3":null,"sku":"KT-WPLED80PS-M1-8CSB-VDIM","requires_shipping":true,"taxable":true,"featured_image":{"id":53391510012148,"product_id":9560715985140,"position":1,"created_at":"2026-07-22T13:38:22-04:00","updated_at":"2026-07-22T13:38:24-04:00","alt":"Keystone Technologies 55\/70\/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K\/4000K\/5000K Selectable Bronze","width":3877,"height":3261,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/KeystoneKT-WPLEDXXPSXX-M1-8CSB-VDIM_3.jpg?v=1784741904","variant_ids":[48894886609140]},"available":true,"name":"55\/70\/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K\/4000K\/5000K - Selectable \/ Bronze","public_title":"Selectable \/ Bronze","options":["Selectable","Bronze"],"price":14946,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"843654177434","featured_media":{"alt":"Keystone Technologies 55\/70\/80 Watt Traditional Open Face 120-277V LED Wall Pack With Photocell 3000K\/4000K\/5000K Selectable Bronze","id":44406804054260,"position":1,"preview_image":{"aspect_ratio":1.189,"height":3261,"width":3877,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/KeystoneKT-WPLEDXXPSXX-M1-8CSB-VDIM_3.jpg?v=1784741904"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

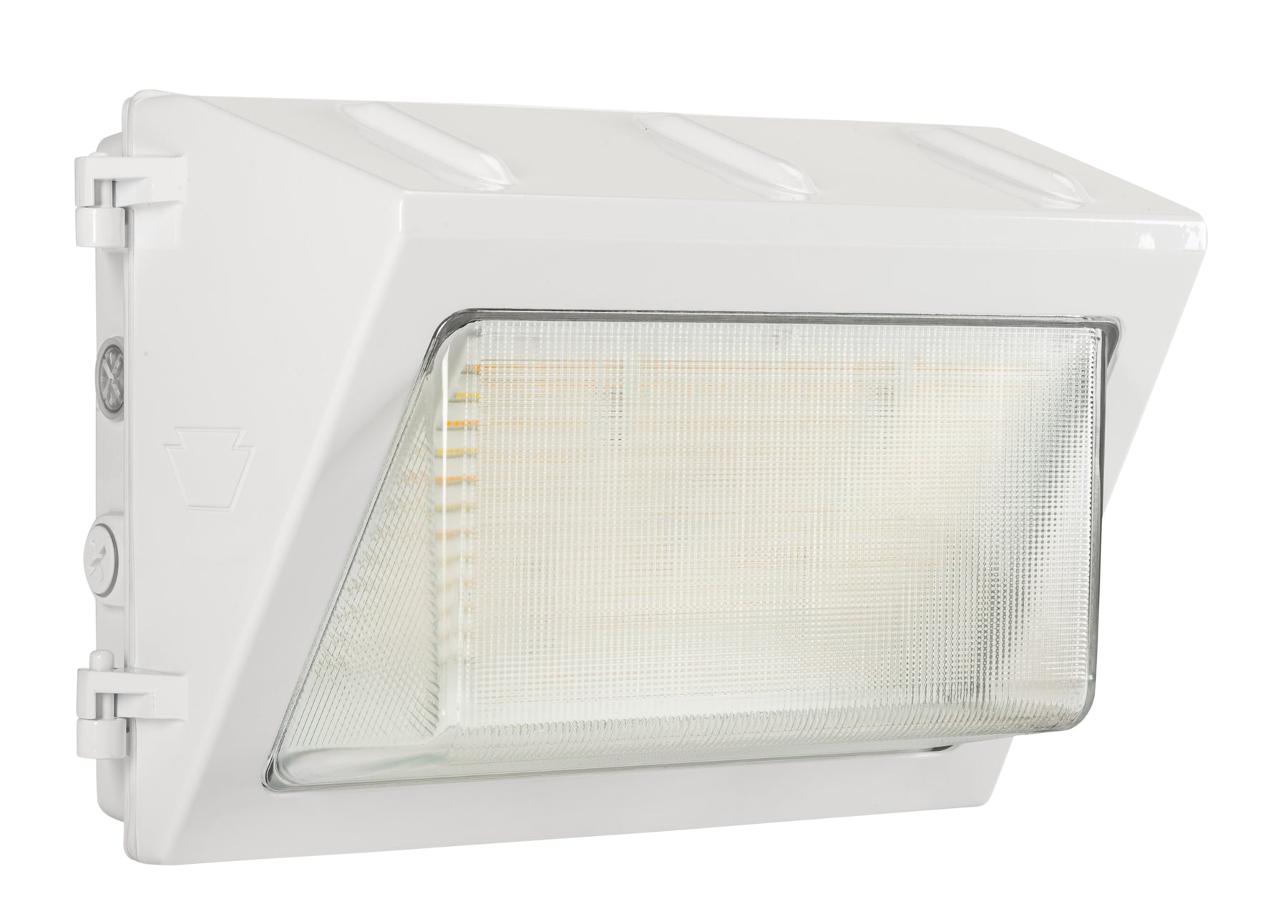

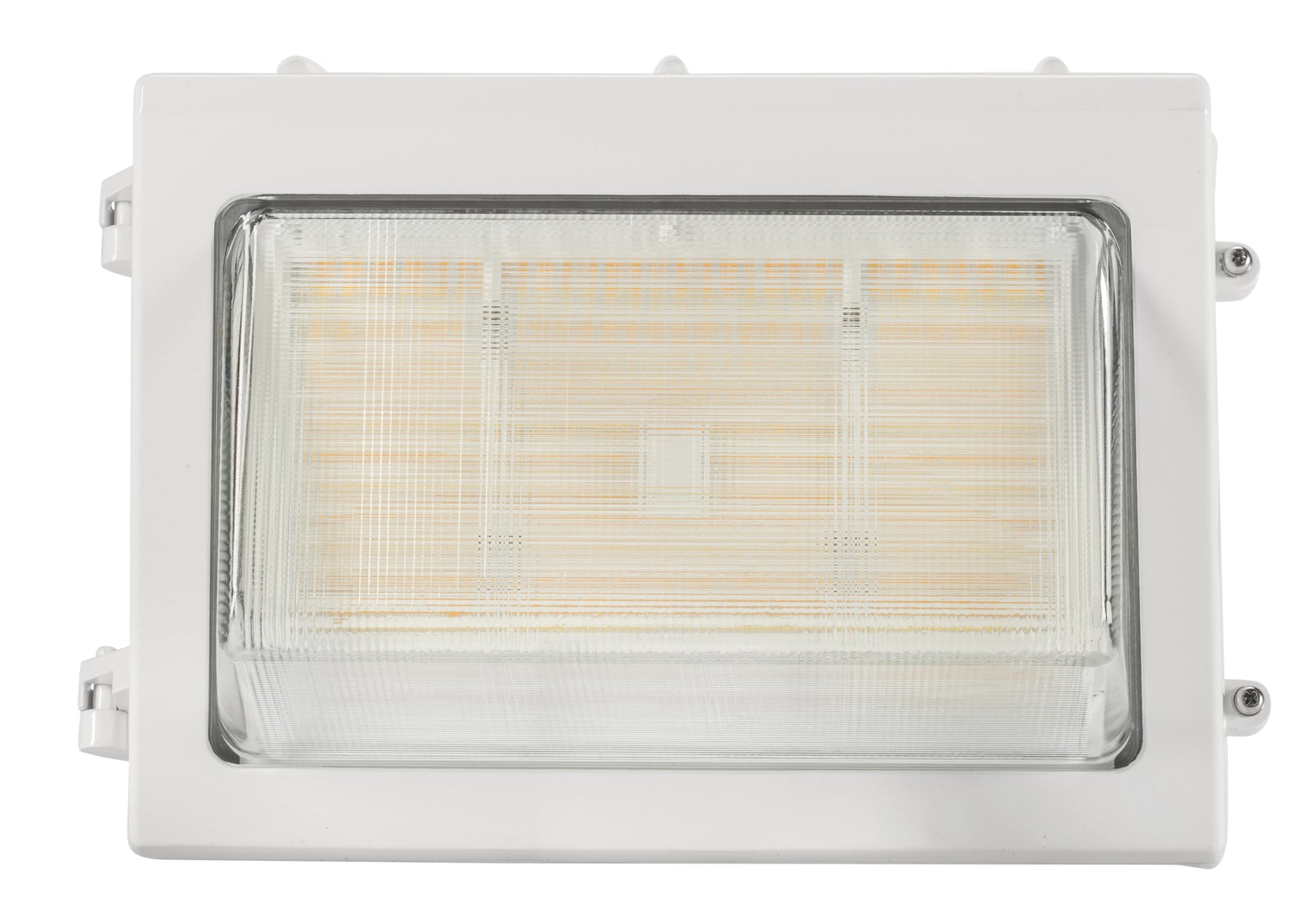

The Keystone KT-WPLED80PS-M1-8CSB-VDIM-X Traditional LED Wall Pack delivers the classic appearance of legacy HID wall packs with the efficiency and flexibility of modern LED technology. Designed for seamless one-for-one replacements, it features Keystone Power Select technology with selectable 55W, 70W, or 80W output and Color Select technology, allowing installers to choose from 3000K, 4000K, or 5000K color temperatures to meet a variety of outdoor lighting requirements. Available in bronze or white with a borosilicate glass lens for uniform light distribution, this fixture is ideal for illuminating building perimeters, walkways, loading docks, and other security lighting areas.

Constructed with a heavy-duty die-cast aluminum housing, the wall pack includes five 1/2-inch threaded conduit hubs for versatile installation and an integrated dusk-to-dawn photocell for automatic operation. Powered by a 120-277V, 0-10V dimming LED driver, it provides dependable, energy efficient performance while supporting advanced lighting controls. UL Certified for wet locations, IP65 rated, and DLC Premium listed, the fixture is built for long lasting reliability with a 50,000 hour rated life and a 10 year limited warranty.

Specifications

Manufacturer	Keystone Technologies
Finish Color	Bronze	White
MPN	KT-WPLED80PS-M1-8CSB-VDIM	KT-WPLED80PS-M1-8CSB-VDIM-W
SKU	KT-WPLED80PS-M1-8CSB-VDIM	KT-WPLED80PS-M1-8CSB-VDIM-W
UPC	843654177434	843654177441
DLC Product ID	S-YKKHVZ
Lighting Technology	LED
Wattage	55/70/80 Watts
Voltage	120-277V
Color Temperature (Kelvin)	3000K/4000K/5000K
Lumens	7970-12950
Efficiency (Lumens Per Watt)	145-159 lm/W
Dimmable	Yes, 0-10V Dimming
Rated Life	50000 Hours
CRI (Color Rendering Index)	>80
Power Factor	>0.90
THD (Total Harmonic Distortion)	<20%
Housing	Die Cast Aluminum
Lens	Borosilicate Glass
Mounting	Wall Mount
Metal Halide Equivalent	250 / 320 Watt
Operating Temperature	−40ºC/−40ºF to 50ºC/122ºF
Dimensions	14.36" L x 9.38" H x 7.33" D
Environment	Wet Location
Certifications	UL Certified, IP 65 Rated, DLC Premium Listed
Warranty	10 Year Limited Warranty

Documents

Keystone Watt and Color Selectable Traditional Open Face LED Wall Pack Specification Sheet

Keystone Watt and Color Selectable Traditional Open Face LED Wall Pack Installation Instructions

Keystone Watt and Color Selectable Traditional Open Face LED Wall Pack DLC Premium Product Listing
