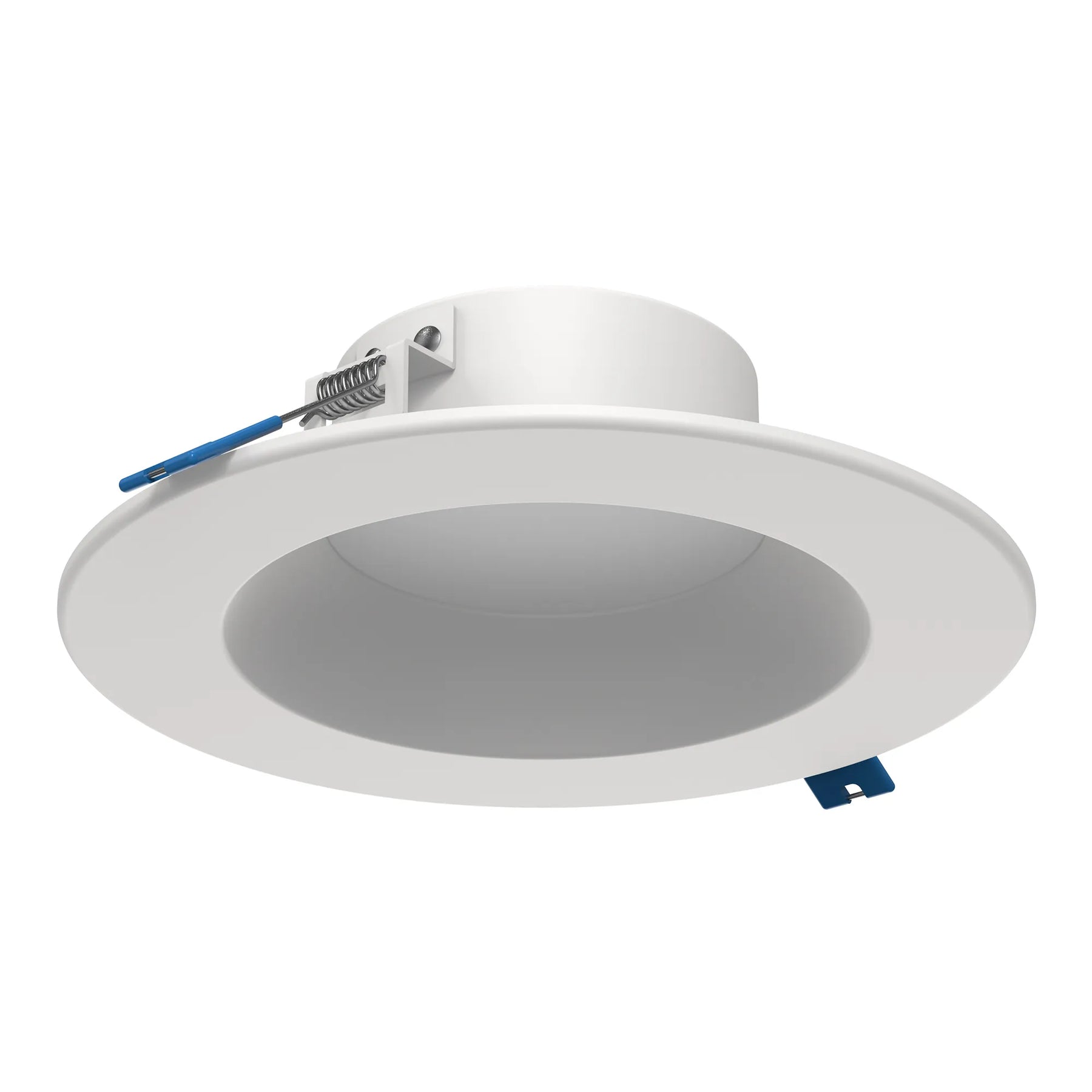

The Westgate CRLB6-10-18W-MCTP5-WH is a 6-inch commercial recessed downlight engineered for versatility and performance in both new construction and retrofit applications. Featuring selectable wattage (10W, 15W, or 18W) and five CCT options (2700K/3000K/3500K/4000K/5000K) controlled by two integrated DLP switches directly on the light engine, this fixture gives contractors and facility managers precise control over light output and color temperature without additional hardware. Operating on 120–277V with 0–10V dimming, it delivers up to 1,548 lumens at 86 LM/W efficacy and a 90 CRI for crisp, accurate illumination across a 95° beam angle.

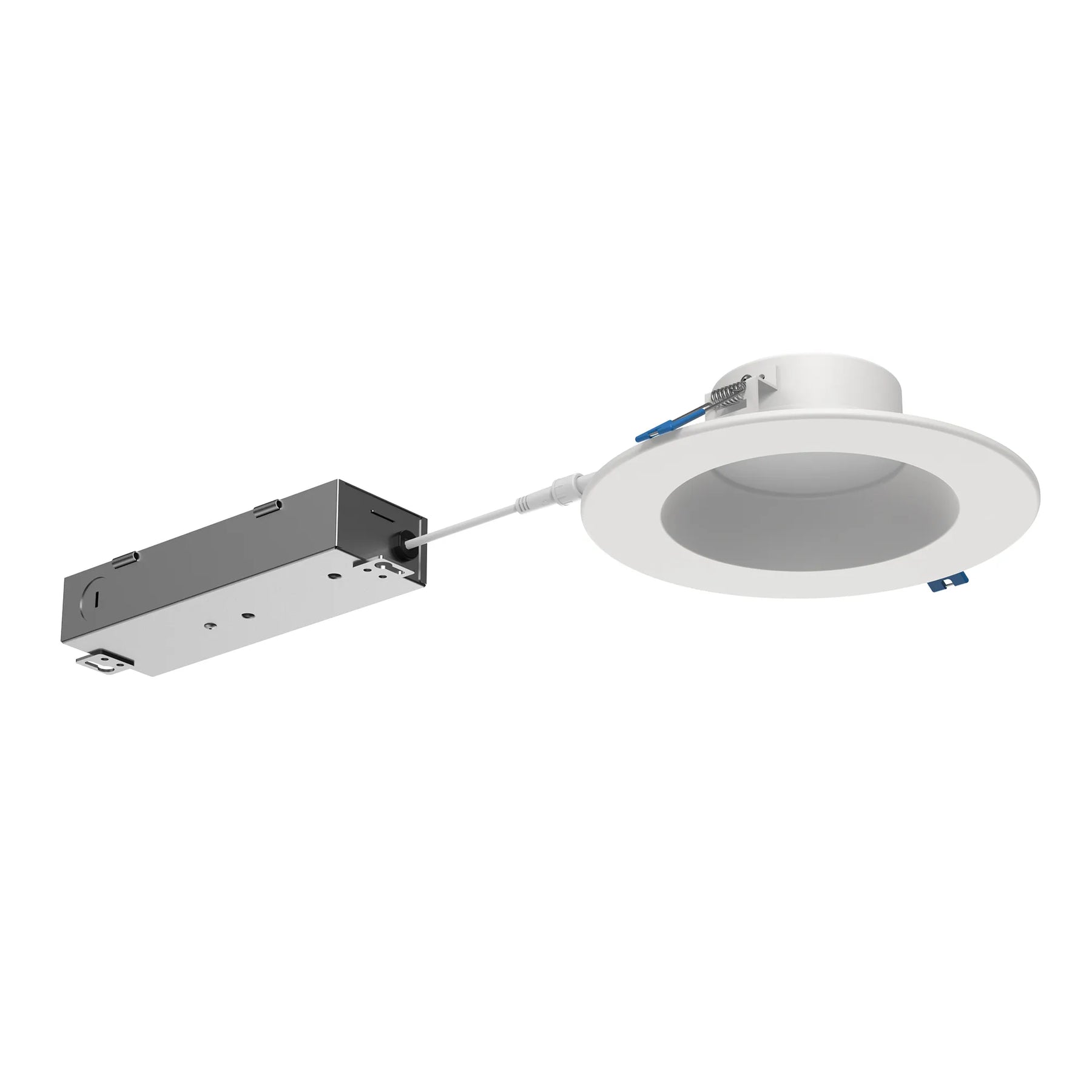

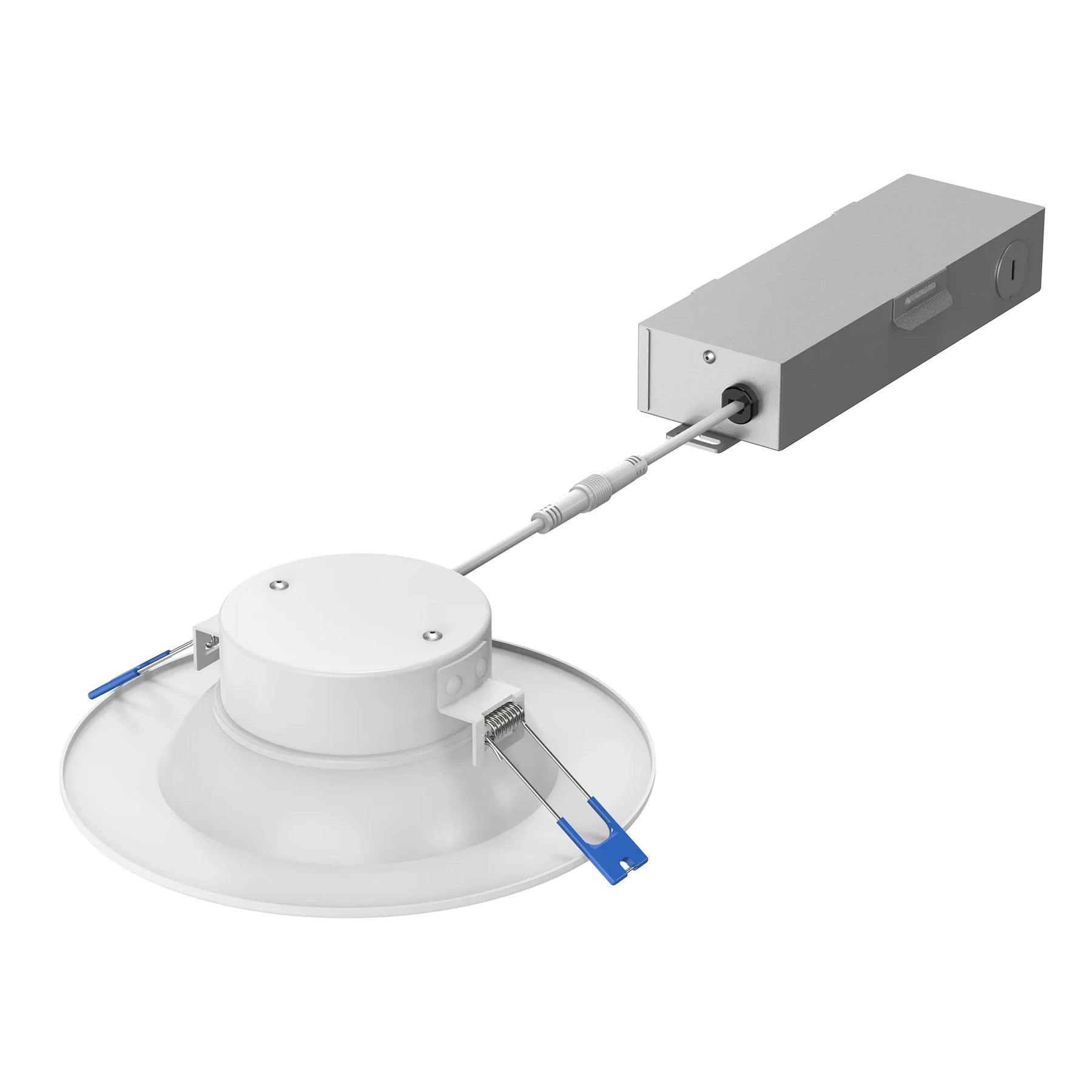

Designed for simplified installation, the CRLB6 features an all-in-one frame that mounts directly to the ceiling — no separate housing required. The isolated remote driver supports J-box control, improving thermal management and making it ideal for closets, corridors, storage areas, attics, and general commercial or residential spaces. The 6-inch smooth recessed trim with spun aluminum construction and white powder coat finish delivers a clean, professional appearance rated for wet locations and Type-IC applications, with an operating temperature range of -4°F to 104°F.
Built to last with a rated life of 50,000 hours, this downlight is JA8 Compliant, Title 24 Compliant, and UL Listed — making it suitable for California and commercial code-compliant projects. It is backed by a 5-year warranty for long-term peace of mind. Dimensions are 7.36"(D) x 2.19"(H), and it ships with a recessed mounting configuration. Compatible accessories sold separately include the Snap-In T-bar plate (CRLE-RI-TBAR-UNV), Snap-In rough-in plate (CRLE-RI-UNV), 6” Round Rough-in Plate RSL6-RI-13 (13" Long) and RSL6-RI (26" Long).
