* NOTE: ALL accessories are sold separately, including Power Cords, Joiners, and Mounting Brackets. *

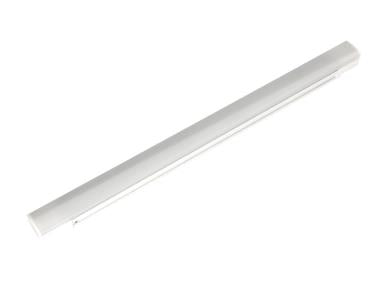

The MaxLite Plug-And-Play Self Driven Light Emitting Diode - LED LiteBar is CEC T-20 2016 Compliant, NSF Qualified and ENERGY STAR Qualified - your perfect energy efficient lighting source. It is designed for cove lighting, wall washing, kitchen lighting, under cabinet led light, mood lighting and/or highlighting. The Maxlite line voltage, hardwired, 120V dimmable led under cabinet light bars come in 6", 12, 24", 36", and 48" lengths and are available in three popular light colors: A remarkable 2700K Warm White, 3500K Bright White or 5000K Daylight. Multiple light bars can be joined together using the patent-pending integrated connector that allows the LiteBars to be connected for long runs up to 40'. The LED bar is self driven. The LED Driver is contained within each bar, and they can be plugged right in to your existing 120 VAC outlet or hard wired to your existing circuit. To round out their impressive capabilities, they are dimmable down to 10% creating an efficient LED accent lighting option for virtually any application.

Use the MaxLite LED lighting fixture as an energy efficient lighting alternative to under cabinet puck lighting or to create mood light ambiance in your favorite room. Not only will energy consumption drop dramatically with MaxLite's LED light bar but these energy efficient LED fixtures have a lamp life of 50,000 hours - That's over 5 years of life in a 24/7 operation! The maintenance costs alone, compared to the costs of maintaining an incandescent or fluorescent fixture, will produce an application payback in a very short time. These LED bars operate at 120 volt and are just 0.74" wide and 0.78" high and 6.0" long. These lightbars have many available accessories that are sold separately, including joiner cords, right and left joiners, and mounting clips.

The MaxLite light bars consumes just 2.1 watts, generating a total of 148 Delivered Lumens. Each light bar is constructed from high quality extruded aluminum. The architectural grade diffuser eliminates unsightly hot spots and ensures an even, pleasing distribution of light.

Specification Sheet

Installation Instructions
