6 Inch 15 Watt Commercial Smooth LED Slim Downlight 2700/3000/3500/4000/5000K

Halco Lighting Technologies SKU: 89169
Halco Lighting Technologies 6 Inch 15 Watt Commercial Smooth LED Slim Downlight 2700/3000/3500/4000/5000K

6 Inch 15 Watt Commercial Smooth LED Slim Downlight 2700/3000/3500/4000/5000K

Halco Lighting Technologies SKU: 89169
  • Energy Star, JA8 Compliant, Title 24 Compliant
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

The Halco ProLED Selectable Slim Downlight Series provides a high performing, ultra-slim, modern solution for new construction and retrofit downlighting projects. Select between three lumen outputs and five color temperatures. The flat, frosted lensed fixtures can me dimmed using standard Triac, ELV or 0-10V dimming driver. The Commercial Slim Downlight family of fixtures are designed with the installer and end user in mind. Spring clips with remote mounted driver box eliminate the need for additional housings. A perfect choice for modern residential, commercial, educational or hospitality applications.

This is the Halco ProLED CSDL-6-LS-CS-ST-DDV, a dimmable 6 inch LED canless wafer downlight. Halco's commercial LED Downlights are ultra-efficient, super-easy and very affordable. These LED downlight kits provide between 1,182-1,272 lumens of either 2700K, 3000K, 3500K, 4000K or 5000K brilliant illumination. These dedicated 120-277 volt downlights meet ENERGY STAR requirements, as well as being Wet Location Rated.

Specifications
Manufacturer Halco Lighting Technologies
MPN CSDL-6-LS-CS-ST-DDV
SKU 89169
UPC 807154891696
Lighting Technology LED
Wattage 15 Watts
Voltage 120-277V
Frequency 50/60Hz
Color Temperature (Kelvin) 2700K Warm White 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 1,182 Lumens 1,226 Lumens 1,254 Lumens 1,272 Lumens 1,249 Lumens
Efficiency (Lumens Per Watt) 80 LPW 84 LPW 86 LPW 88 LPW 86 LPW
Dimmable Yes, TRIAC/ELV and 0-10V Dimming
Beam Angle 110 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 90 CRI
Power Factor >0.9
Housing Aluminum
Lens Frosted PMMA Diffuser
Fixture Dimensions 7-3/16" Diameter x 1-1/16" H
Driver Dimensions 6" x 3-1/8" x 1-3/8"
Certifications Energy Star, Title 24 Compliant, JA8 Compliant
Environment Wet Location
Warranty 5 Year Limited



Documents

Halco Commercial LED Slim Downlight Specification Sheet

Halco Commercial LED Slim Downlight Installation Instructions

Request A Quote

Green Electrical Supply is here to help you maximize your green® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.

Recommended or frequently bought with this product
More from Wafer Downlights
GM Lighting 4 Inch 9 Watt LED 120V Regressed Slim Downlight 2700/3000/4000K Selectable White
4 Inch 9 Watt LED 120V Regressed Slim Downlight 2700/3000/4000K
GM Lighting

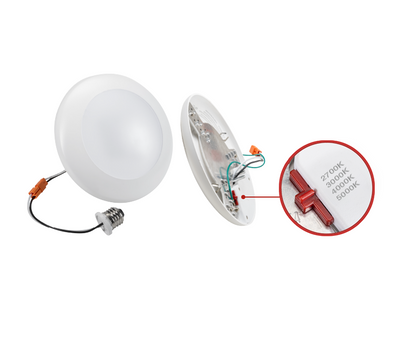

Sylvania Lighting 6 Inch 14 Watt LED Sylvania Microdisk Selectable Downlight 2700/3000/3500/4000/5000K Selectable
6 Inch 14 Watt LED Sylvania Microdisk Selectable Downlight 2700/3000/3500/4000/5000K
Sylvania Lighting
GM Lighting 6 Inch 12 Watt LED 120V Regressed Slim Downlight 2700/3000/4000K Selectable White
6 Inch 12 Watt LED 120V Regressed Slim Downlight 2700/3000/4000K
GM Lighting
Multiple Options
Sale
Lithonia Lighting 4 Inch 10 Watt Super Thin Recessed LED Wafer Downlight Retrofit 3000K Warm White Black
4 Inch 10 Watt Super Thin Recessed LED Wafer Downlight Retrofit
Lithonia Lighting
Save 12%

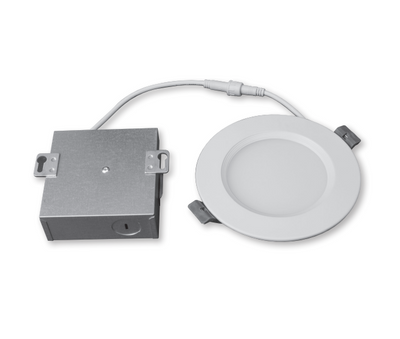

GM Lighting 8 Inch 15 Watt LED 120V Regressed Slim Downlight 2700/3000/4000K Selectable White
