Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.
Satco's Shatterproof LED T5 tubes feature shatterproof coated glass and frosted lens that eliminates pixilation. PET coating ensures no broken glass and it's ETL Sanitation Listed NSF/ANSI Standard 2 - Food Equipment approved. No ballast or driver needed for double-ended wiring ballast bypass. Get maximum utility rebates & maintenance savings.

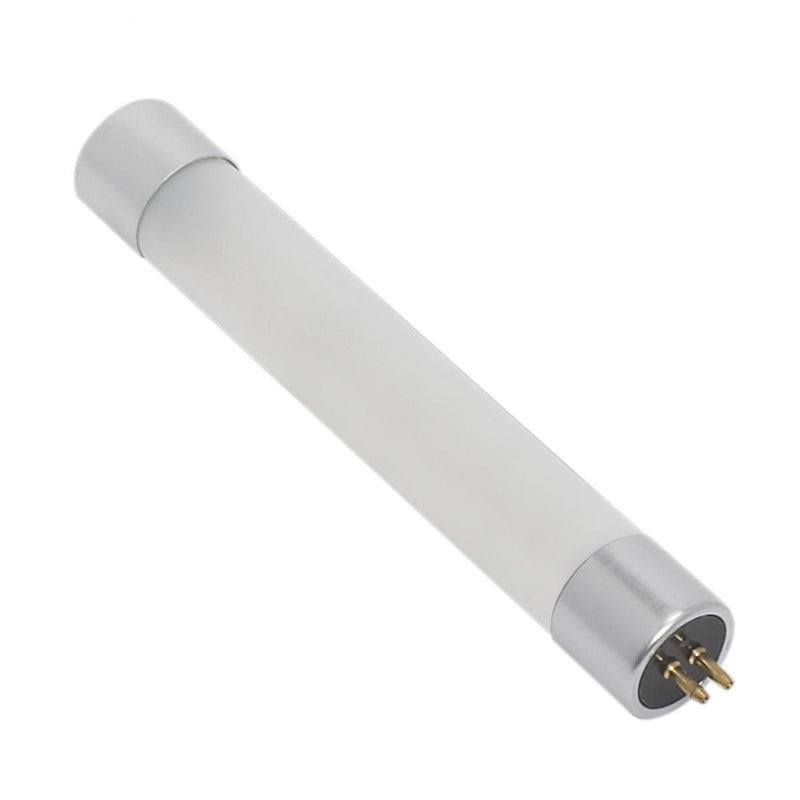

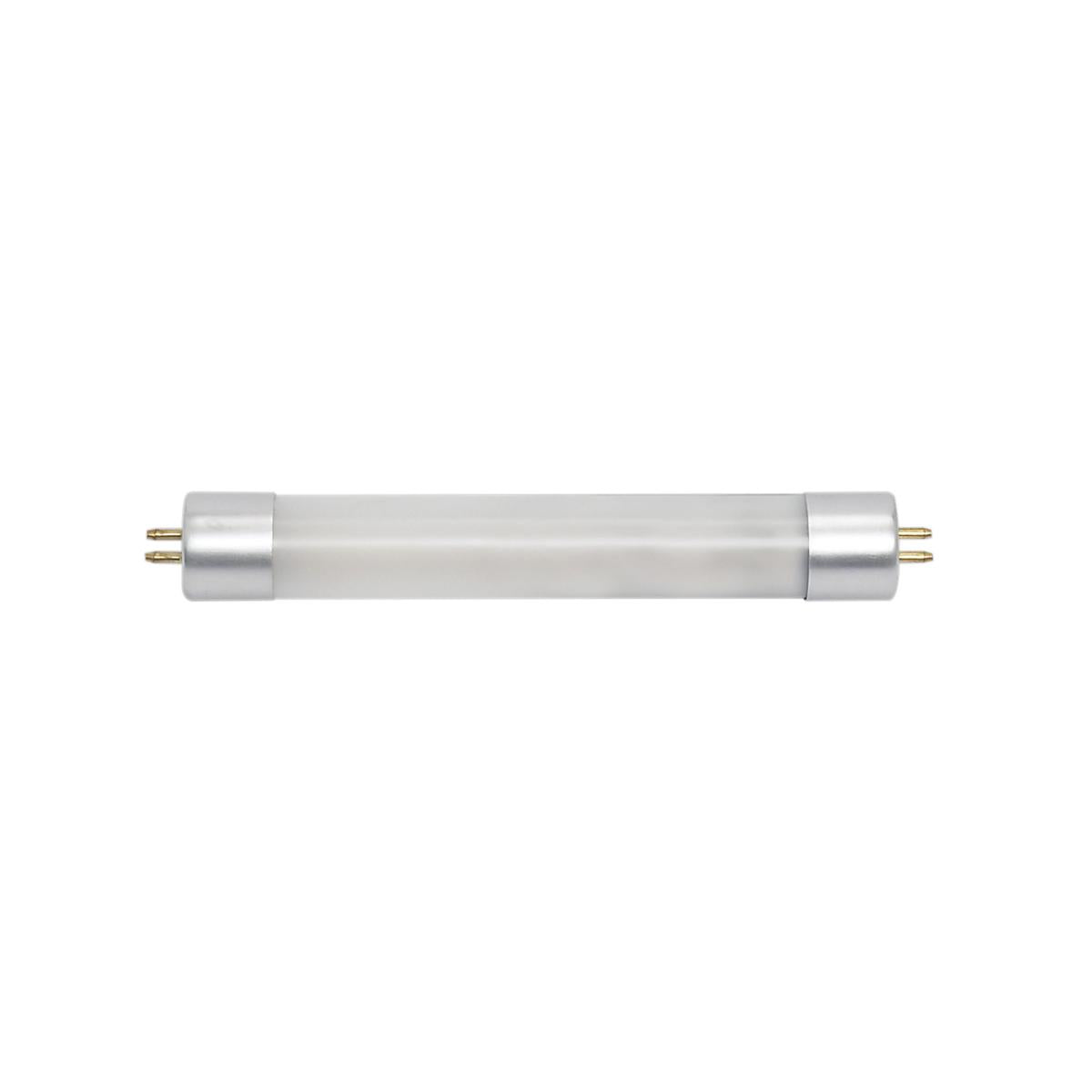

Satco's 6" LED Mini Bi Pin G5 base ballast by-pass T5 LED Tubes offer 150 lumens, comparable to fluorescent T5 systems. Consuming only 2W, these lamps are compatible with 120-277 line voltages and come in 4000K and 6500K color temperatures. NSF Certified, mercury-free, with instant on/off, these LED tubes are an ideal retrofit for 6" fluorescent tubes--perfect for under cabinet lighting.
This item is the Satco part number S1190X (2W/LED/T5/8(XX)/BP) - a replacement for your current F4T5 lamps. It is a double ended ballast bypass replacement for your current 6 inch mini T5 fluorescent lamps. Each lamp consumes just 2 watts of 120-277v input power - saving you 40% in energy costs! These T5 LED retrofit bulbs have a 240 degree beam angle, generate 150 lumens - That's an awesome 75 lumens per watt of 82 CRI light. They are NOT dimmable, measure .83" diameter by 5.91" in Maximum Overall Length (MOL) and are UL Listed - damp location rated. The Satco 2W LED tube comes in a frosted finish, each tube has a 50,000-hour lifetime and they carry a Five Year Warranty. Please NOTE: When retrofitting these LED tube lights to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will ensure no RFI interference.
**Note: Though nominally referred to as a T5, this lamp has a T6 diameter. Please check the dimensions of your enclosed fixture before ordering.**
Manufacturer | Satco | |
Color Temperature (Kelvin) | 4000K Cool White | 6500K Daylight |
MPN | 2W/LED/T5/840/BP | 2W/LED/T5/865/BP |
SKU | S11900 | S11901 |
UPC | 045923119002 | 045923119019 |
Lumens | 150 Lumens | |
Efficiency (Lumens Per Watt) | 75 LPW | |
Lighting Technology | LED | |
Wattage | 2 Watt | |
Voltage | 120-277V | |
Frequency | 50/60Hz | |
Ballast Operation | Type B Bypass | |
Wiring Method | Double Ended | |
Bulb Shape | T5 | |
Base | G5 Mini Bi-Pin | |
Dimmable | Non-Dimmable | |
Beam Angle | 240 Degrees | |
Rated Life | 50,000 Hours | |
CRI (Color Rendering Index) | 82 CRI | |
Power Factor | 0.9 | |
Construction | Shatter-Proof Glass | |
Lens | Frosted | |
Fluorescent Equivalent | 4 Watt | |
Operating Temperature | −25ºC to 45ºC | |
Dimensions | 5.91" MOL x 0.83" MOD | |
Certifications | Title 20 Exempt, Title 24 Exempt, Enclosed Fixture Rated, NSF Listed | |
Environment | Damp Location | |
Warranty | 5 Year Limited |
