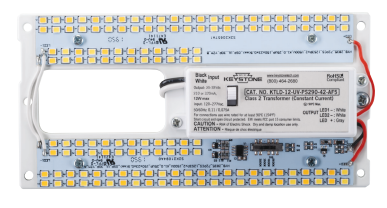

6 Inch 8/12W Rectangular Power and Color Selectable LED Light Engine 3000/3500/4000/5000K

Keystone Technologies SKU: KT-RKIT12PS-6RP-8CSC
Keystone Technologies 6 Inch 8/12W Rectangular Power and Color Selectable LED Light Engine 3000/3500/4000/5000K Selectable

6 Inch 8/12W Rectangular Power and Color Selectable LED Light Engine 3000/3500/4000/5000K

Keystone Technologies SKU: KT-RKIT12PS-6RP-8CSC
  • Energy Star
Regular price $46.46
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

The FutureFit line of LED light engines are now more versatile and efficient with Power Select and Color Select. These innovative features allow the lumen output and color temperature to be selected with a simple switch. The enhanced versatility offers significant SKU reduction. The form factors and lumen package options remain the same as our legacy rectangular and circular LED modules. Our linear LED modules with Aluma Groove are pre-mounted into an aluminum extension via a patented manufacturing method. These high efficiency LED light engines are equipped with Power Select switches for lumen output versatility.

The Keystone FutureFit engine comes in a selectable wattage of 8 and 12W. This LED rectangular light engine produces a selectable lumen output between 1,050-1,650 with a selectable color temperature of 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight. The default setting on the light engine will be set at 12 Watts and 5000K Daylight. This wattage and color selectable engine operated on the universal voltage of 120-277V, making it a high-performance, cost-effective replacement for incandescent, CFL, and rectangular light sources in residential and commercial ceiling fixtures, including flush mount ceiling lights. This led module is 5.9" in overall length with a thickness of only 0.23".

FutureFit LED retrofit kits are pre-packaged with your desired LED module, a Keystone driver, and mounting accessories for easy installation either in the field or at the point of manufacture. With each LED light engine already safety tested and performance verified, upgrading to LED doesn’t get any easier than FutureFit LED retrofit kits. These products are perfect for retrofitting your fluorescent wall scones and ceiling luminaries. The LED retrofits are perfect for any application including but not limited to: residential home lighting, hotel applications, restaurant lighting, retail applications, parking garage lighters and more. The FutureFit LED kits carry a 10 year warranty.

Voltage 120-277 Volt
Wattage 8/12 Watts
LED Color 3000/3500/4000/5000K
Lumens 1,050-1,650 Lumens
CRI 80 CRI
Dimensions 5.9" L x 0.23" W
Dimmable No
Rated Life 50,000 Hours
Certifications RoHS, cULus, NLB, Energy Star
Warranty 10 Year Limited
