60/70/80 Watt Selectable LED HI-Pro Expandable Lamp 3000/4000/5000K

Satco SKU: S28932R1
Satco 60/70/80 Watt Selectable LED HI-Pro Expandable Lamp 3000/4000/5000K Selectable
Satco 60/70/80 Watt Selectable LED HI-Pro Expandable Lamp 3000/4000/5000K
Satco 60/70/80 Watt Selectable LED HI-Pro Expandable Lamp 3000/4000/5000K
Satco 60/70/80 Watt Selectable LED HI-Pro Expandable Lamp 3000/4000/5000K
Satco 60/70/80 Watt Selectable LED HI-Pro Expandable Lamp 3000/4000/5000K

60/70/80 Watt Selectable LED HI-Pro Expandable Lamp 3000/4000/5000K

Satco SKU: S28932R1
  • DLC Listed, Enclosed Fixture Rated
Regular price $124.95
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

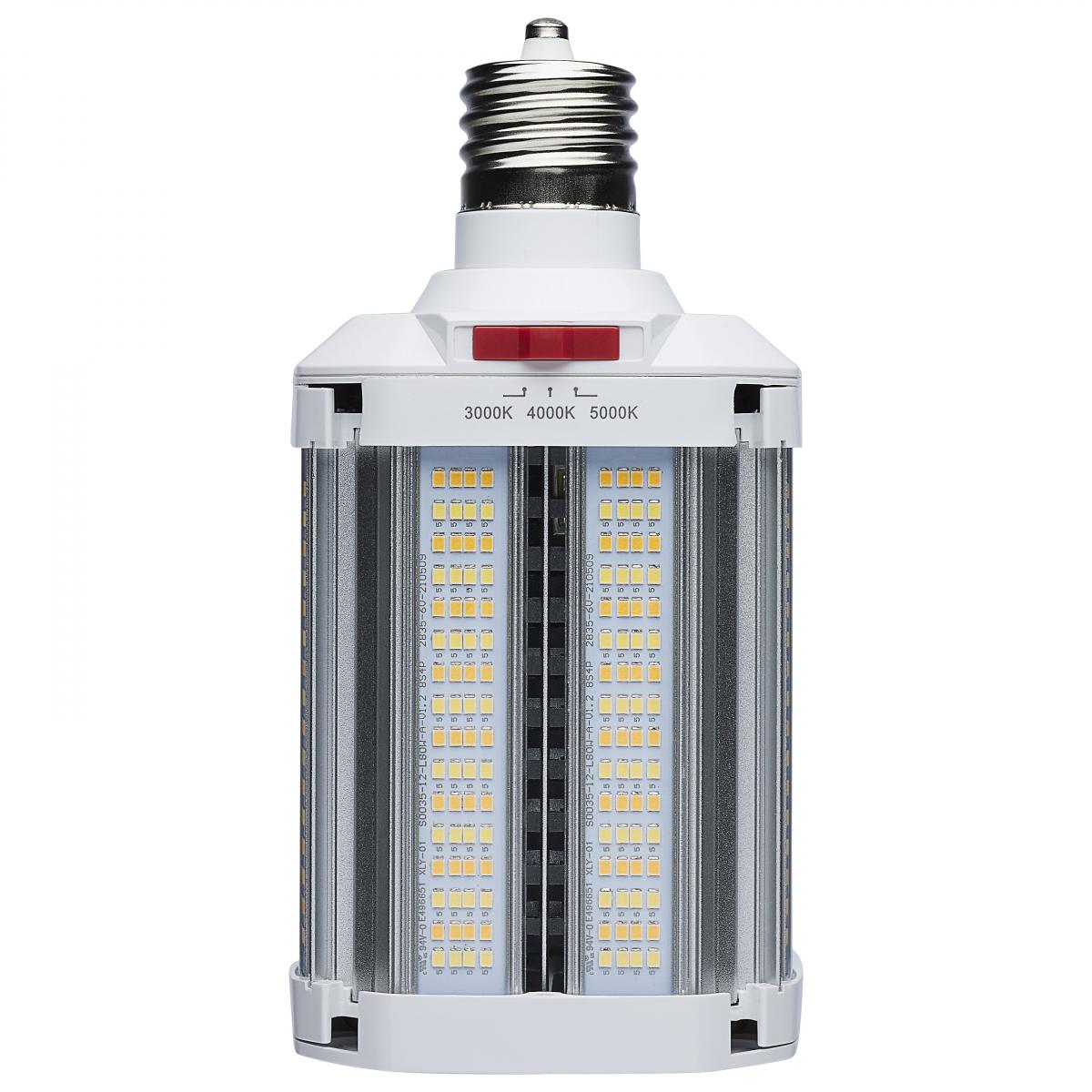

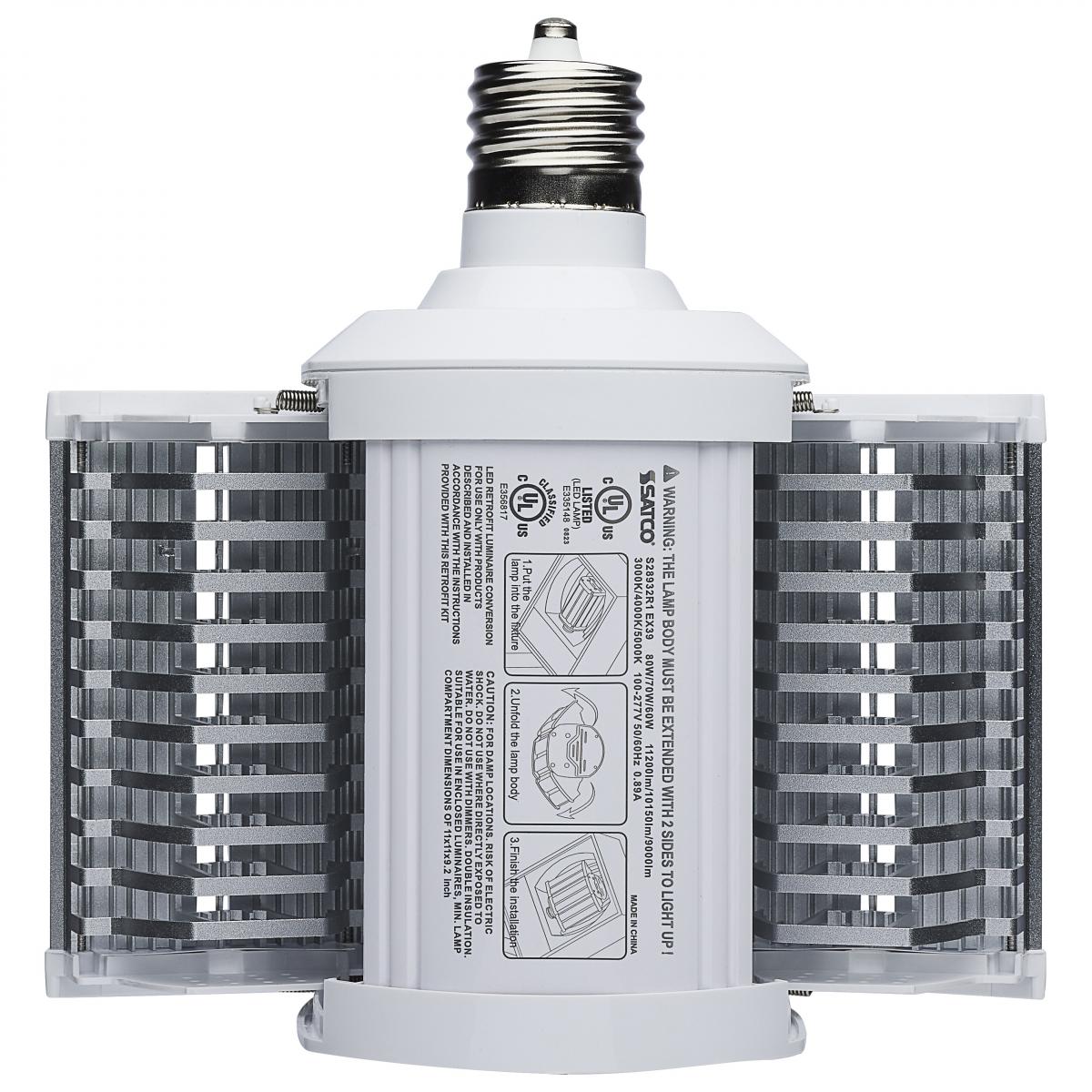

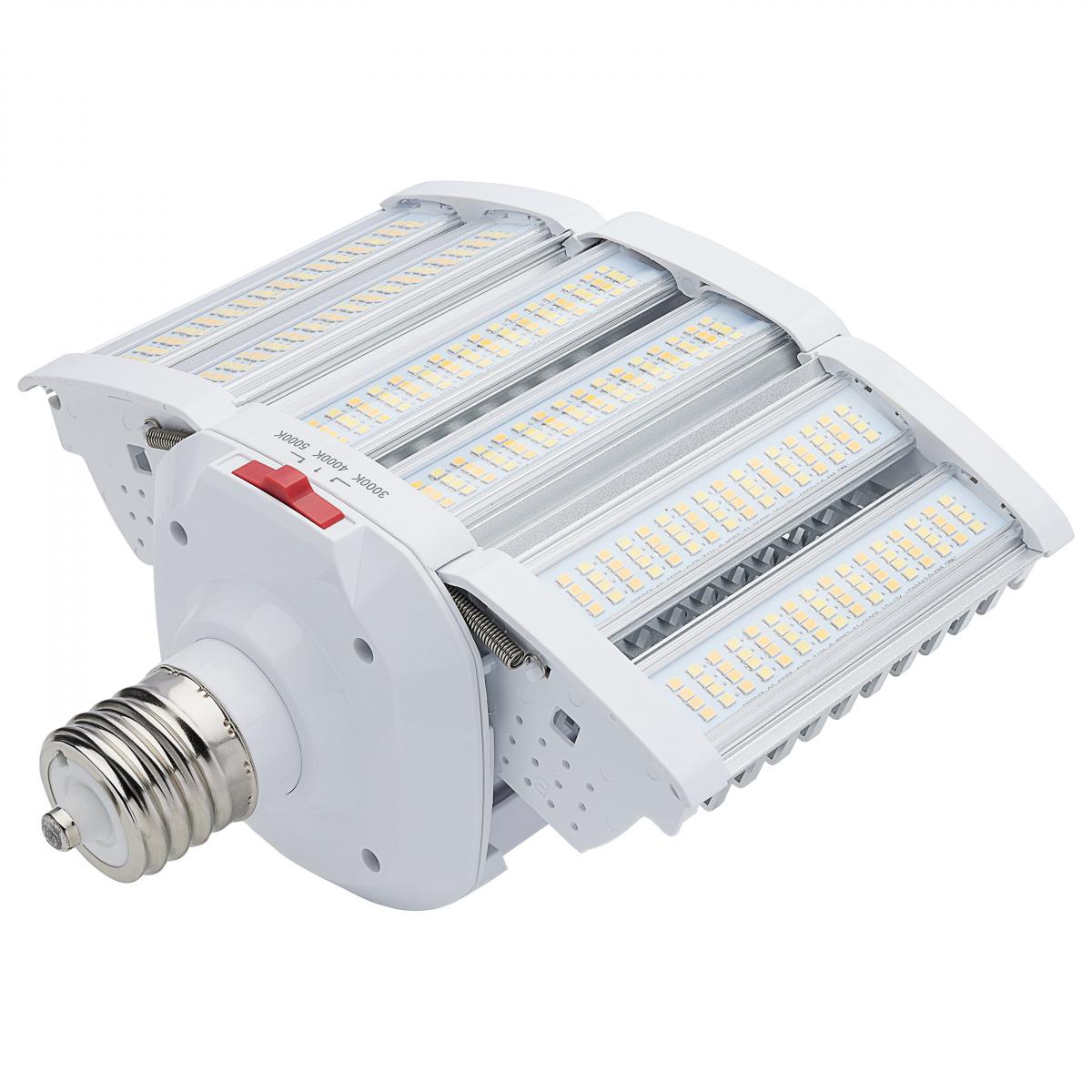

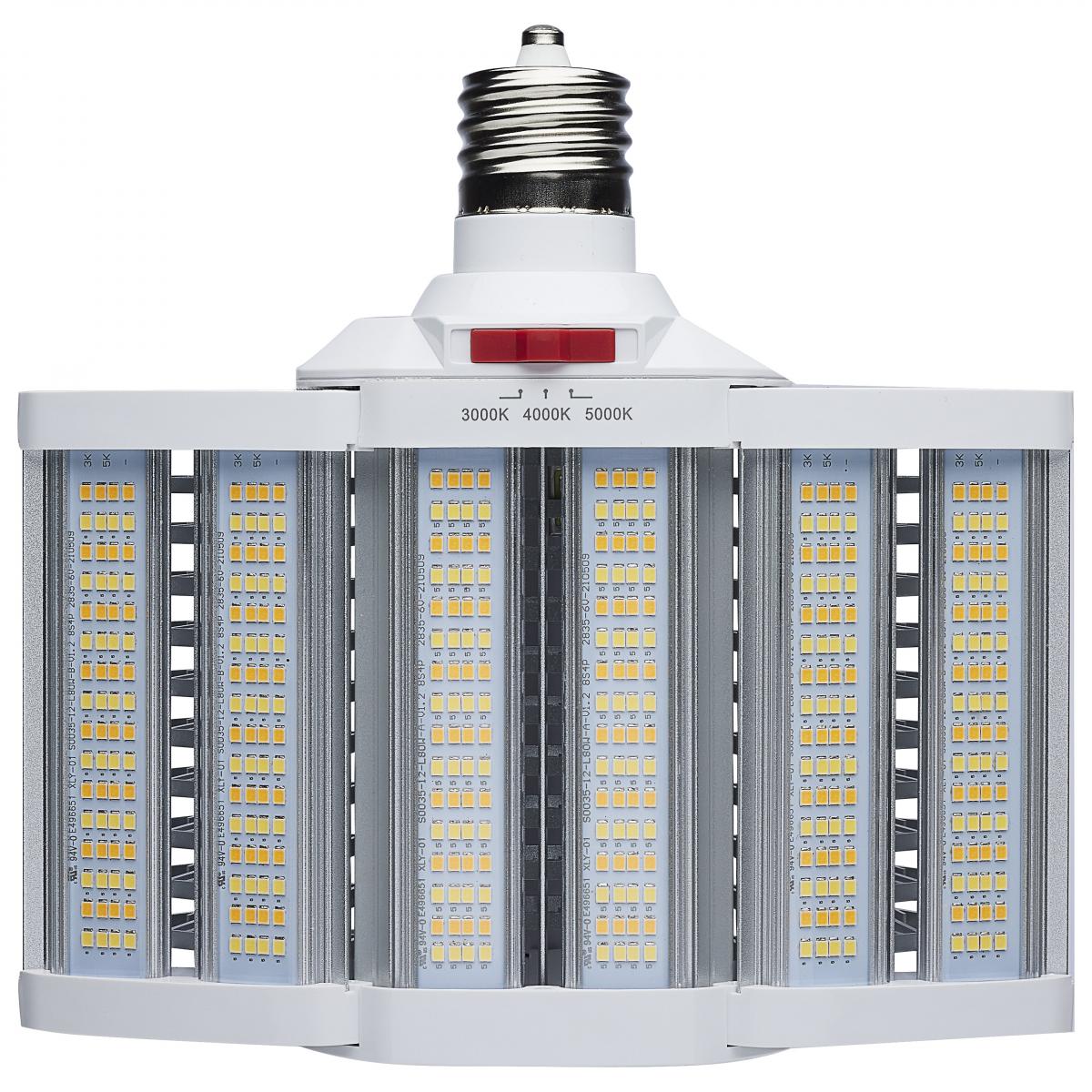

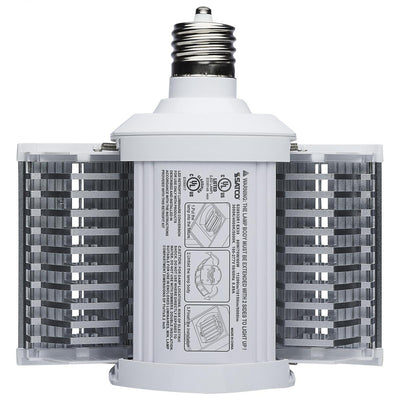

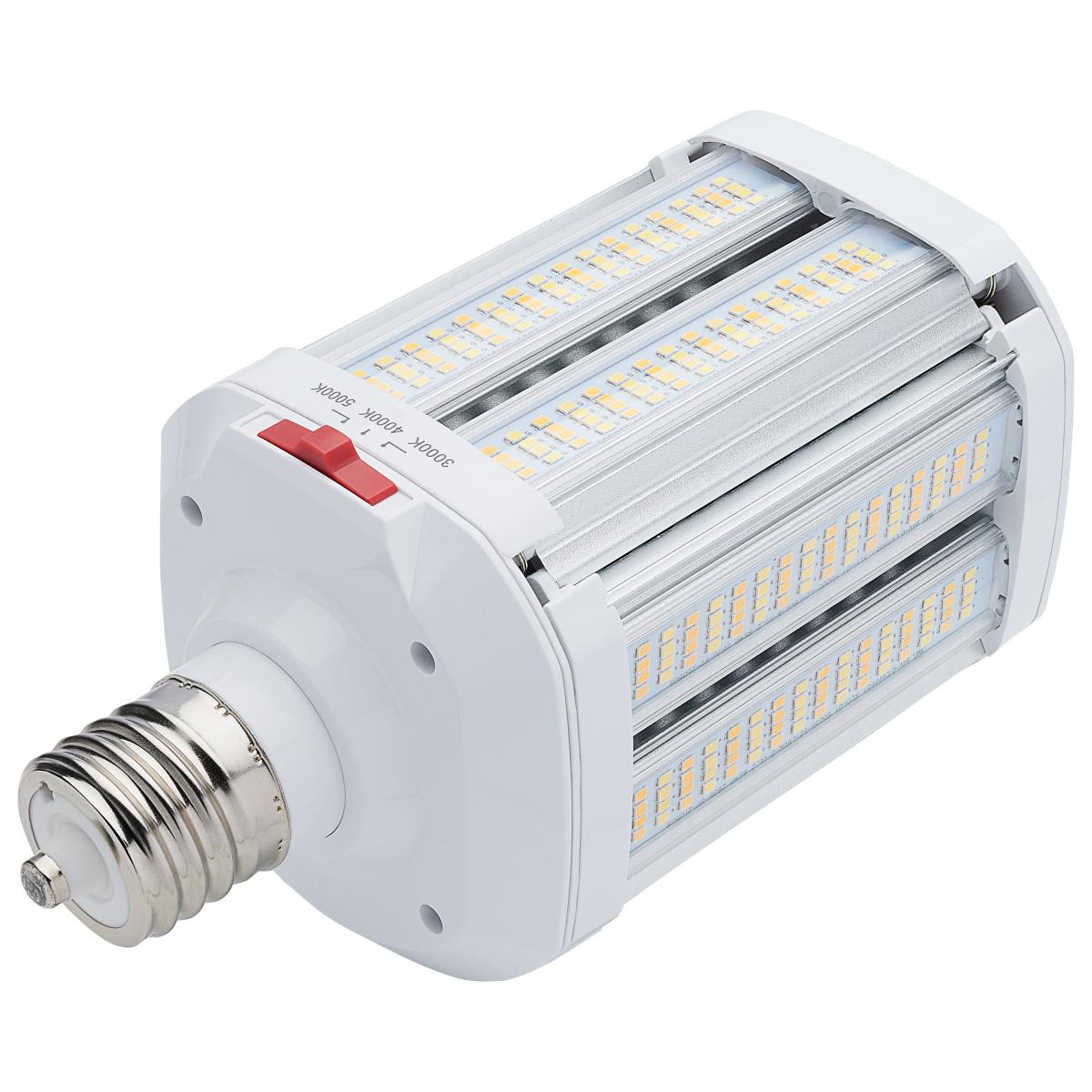

Satco's LED Hi-Pro Lamps offer a 320° rotating EX39 base making the installation of these lamps easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique environment. The notable design of the expandable light panels, when used in its fully open operating position, provides a 180° beam angle that enables the user to focus the light distribution exactly where it is needed the most. The outstanding heat dissipation, the ballast bypass feature, and the integrated 4kV surge protection make these the perfect HID replacement for shoebox fixtures and commercial area lighting. An optional 10kV hardwire surge protector is available to provide an additional level of protection when needed.

This is Satco's LED expandable lamp, part number S28932R1 80W/LED/HID/SB/3CCT/EX39, consumes 60/70/80 selectable watts of 120 to 277 volt 50/60 Hz energy and is designed to replace up to 320 watt HID replacement bulbs and 400 watt incandescent bulbs. This step dimming LED light bulb, an LED Site, Roadway or Wallpack lighting retrofit option, will produce between 9,000-11,200 Lumens of either 3000K warm white, 4000K cool white or 5000K daylight color, has a CRI of 80 and a rated life of up to 50,000 hours. The physical dimensions of the Satco LED retrofit are 8.86" MOL by  8.9" MOD. These DLC listed Hi-Pro bulbs carry a 5 Year Limited Warranty.

Manufacturer Satco
MPN 80W/LED/HID/SB/3CCT/EX39
SKU S28932R1
UPC 045923298837
Lighting Technology LED
Wattage 60/70/80 Watts
Voltage 120-277V
Frequency 50/60Hz
Color Temperature (Kelvin) 3000/4000/5000K
Lumens 9,000/10,150/11,200 Lumens
Efficiency (Lumens Per Watt) Up to 150 LPW
Base EX39 Mogul Extended
Dimmable Yes, Step Dimming
Beam Angle 180 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Operating Position Universal
Housing Aluminum
Lens Polycarbonate
HID Equivalent 200/250/320 Watts
Incandescent Equivalent 400 Watts
Operating Temperature -30°C (-22°F) to 45°C (113°F)
Dimensions 8.86" MOL x 8.9" MOD
Certifications DLC Listed, Enclosed Fixture Rated, FCC Compliant
DLC Product ID S-ARHCWO
Environment Damp Location
Warranty 5 Year Limited
