The MICRO-DRJ LED transformer series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible.

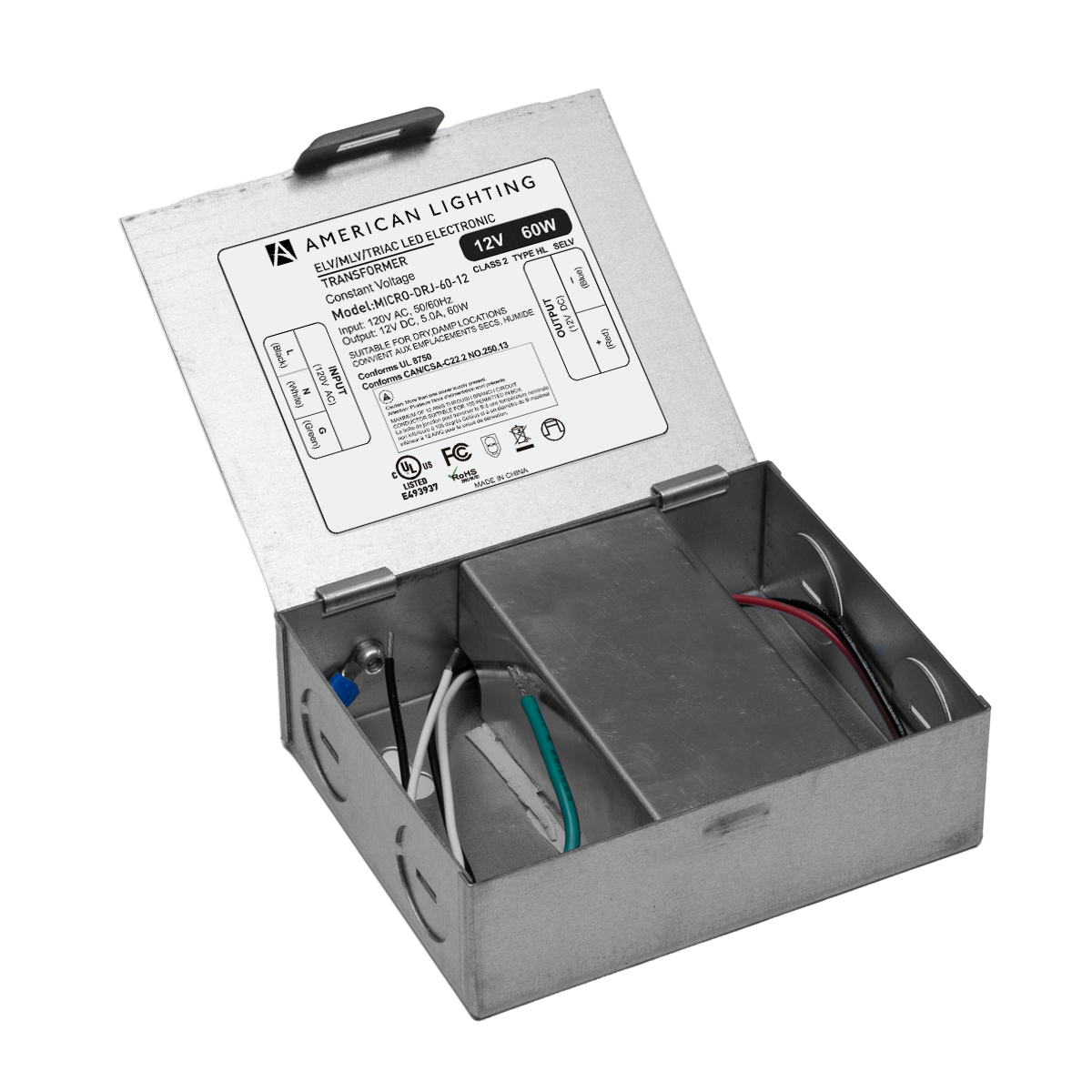

This compact 12VDC constant voltage hardwire transformer delivers reliable, dimmable performance with standard TRIAC, MLV, and ELV dimmers, making it a versatile choice for a wide range of LED lighting installations. The MICRO-DRJ comes with a junction box included, simplifying hardwire installation and keeping connections protected and code-compliant. Built-in short circuit and overload protections ensure long-term reliability, while the micro aluminum housing — measuring just 1.13" tall — keeps the footprint minimal without sacrificing performance. Free air convection cooling and PWM output with 20–100% load operation round out a design engineered for efficiency and ease of installation. The unit is Type HL and FCC compliant, cULus Listed, and rated for damp locations.

The MICRO-DRJ-60-12 operates on 120V input and supports a load range of 12 to 60 watts at a rated current of 5A, with an efficiency rating exceeding 88%. Dimming is fully supported across 0–100% phase dimming, MLV, ELV, and TRIAC protocols. Its compact dimensions of 4.17" L × 3.5" W × 1.13" H make it easy to conceal in tight spaces, and the American Lighting part number MICRO-DRJ-60-12 ensures straightforward reordering and compatibility verification.

American Lighting 60 Watt Micro-DRJ Dimmable 12VDC Power Supply Specification Sheet
