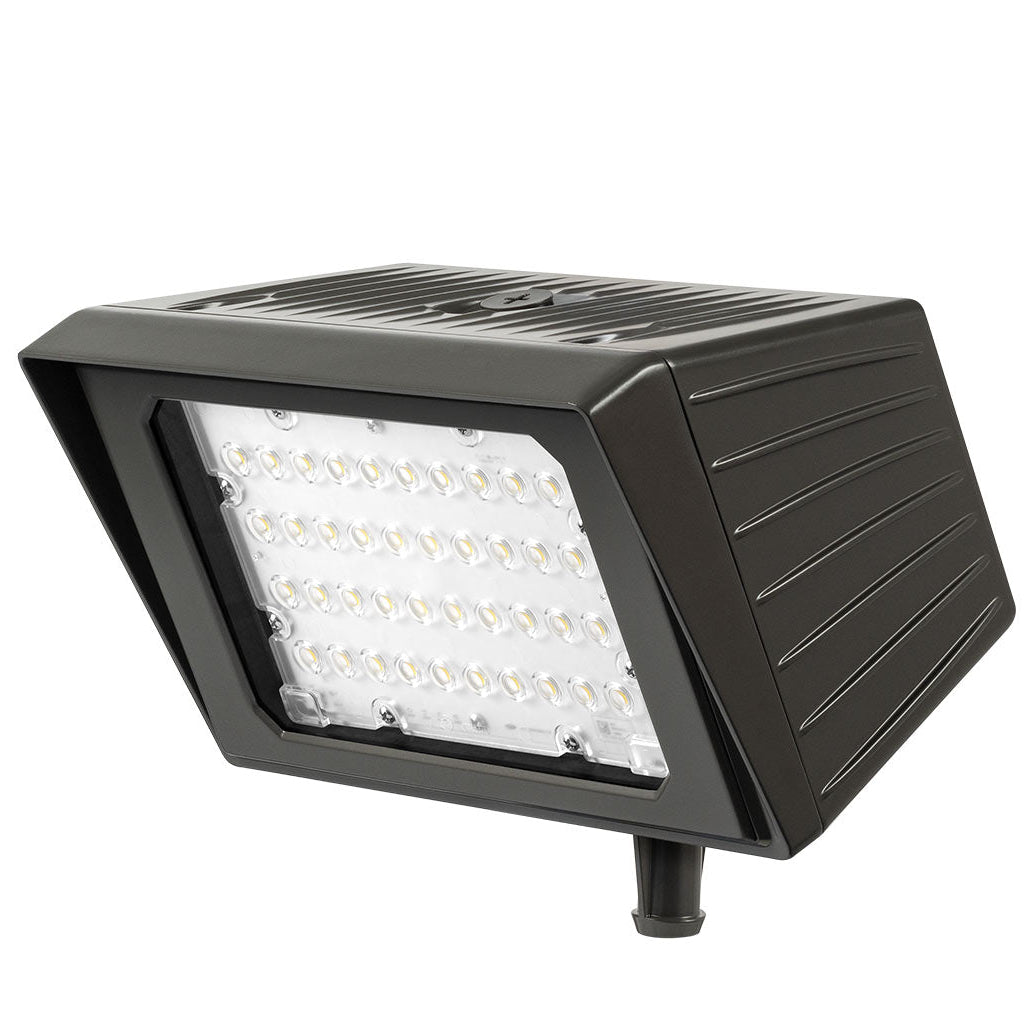

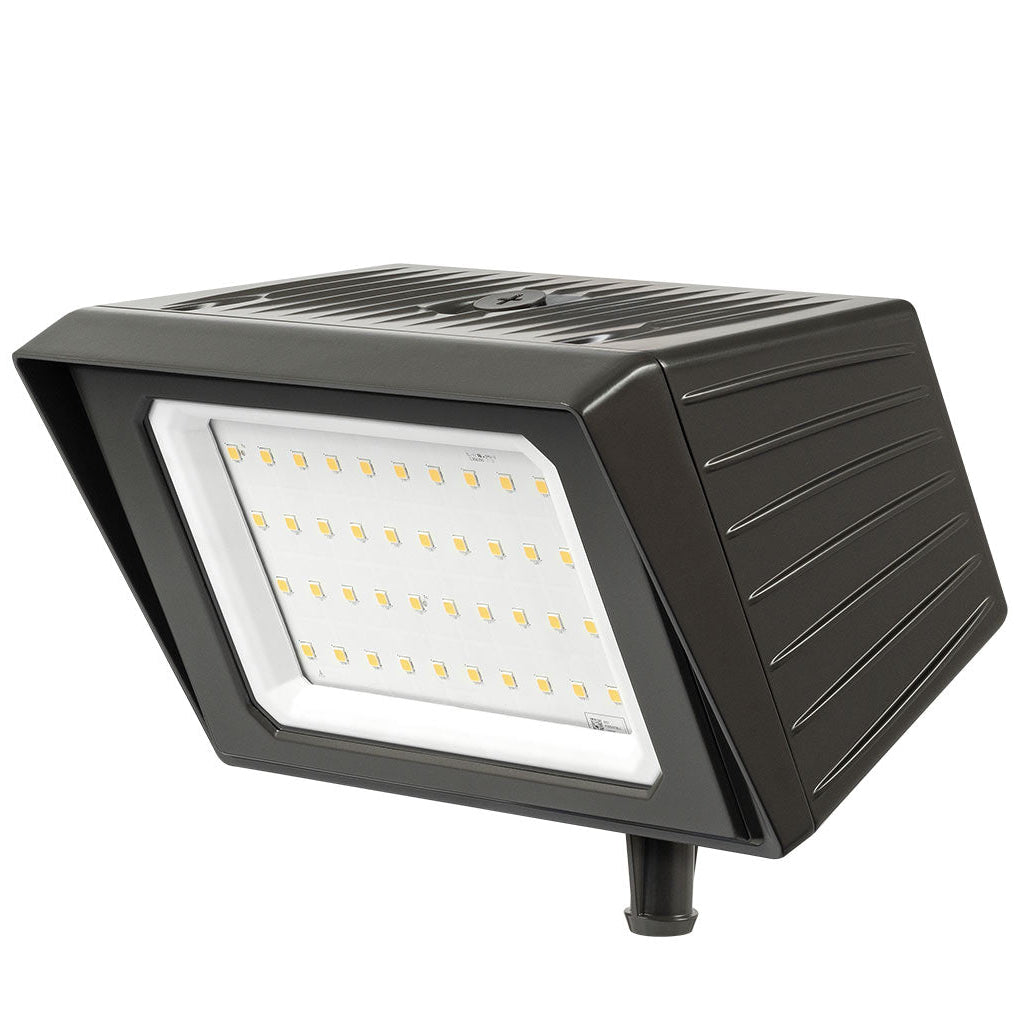

The Atlas Lighting Hawk Selectable LED Flood Light delivers exceptional performance and versatility for commercial and industrial outdoor lighting applications. Available with Precision NEMA 6x6 (XP) optics for high-intensity illumination or Extra Wide NEMA 7x7 (XW) light distribution for broad, even coverage, this flood light is ideal for building facades, signage, security lighting, and area illumination. Easy-access DIP switches allow users to select 62W, 94W, or 127W output with lumen packages ranging from 8,000 to 16,000 lumens, as well as 3000K, 4000K, or 5000K color temperatures for maximum application flexibility. Constructed with a 100% pure aluminum housing and proudly manufactured in the USA, it is available with a heavy-duty knuckle mount.
Engineered for long-lasting reliability, the Hawk features advanced thermal management that promotes cooler operation, increased light output, and an LED lifespan exceeding 200,000 hours. The XP optical system uses precision optical-grade acrylic lenses to maximize footcandles while reducing glare and wasted light, while the XW distribution provides smooth, uniform illumination for short setback applications such as wall washing and sign lighting. Operating on 120-277V with 0-10V dimming, the fixture is UL/cUL Listed for wet locations, DLC Premium qualified, and backed by a 5-year limited warranty, making it a dependable, energy-efficient solution for demanding outdoor lighting projects.
| Manufacturer | Atlas Lighting | |
| Light Distribution | NEMA 6x6 | NEMA 7x7 |
| MPN | HSXP68-16L | HSXW8-16L |
| SKU | HSXP68-16L | HSXW8-16L |
| UPC | 765364029318 | 765364029271 |
| DLC Product ID | PI0NY0OL | PYWAYVQP |
| Lighting Technology | LED | |
| Wattage | 62/94/127 Watts | |
| Voltage | 120-277V | |
| Frequency | 50-60 Hz | |
| Color Temperature (Kelvin) | 3000K/4000K/5000K | |
| Lumens | 8739-17365 Lumens | 9654-18730 Lumens |
| Efficiency (Lumens Per Watt) | 132-152 lm/W | 139-166 lm/W |
| Dimmable | Yes, 0-10V dimming | |
| Rated Life | 200,000 Hours | |
| CRI (Color Rendering Index) | >70 | |
| Finish Color | Bronze | |
| Housing | Die Cast Aluminum | |
| Mounting | Knuckle | |
| HID Equivalent | up to 400W MH | |
| Dimensions | 11.24" L x 11.00" W x 6.48" D | |
| Environment | Wet Location | |
| Certifications | cULus Listed, DLC Premium Listed, IP66, BAA, Made in USA | |
| Warranty | 5 Year Limited Warranty | |
