NOTE: THIS LAMP MAY NOT BE COMPATIBLE WITH ALL MAGNETIC BALLASTS. IF THE LAMP DOES NOT OPERATE CORRECTLY, THEN BYPASS THE BALLAST.

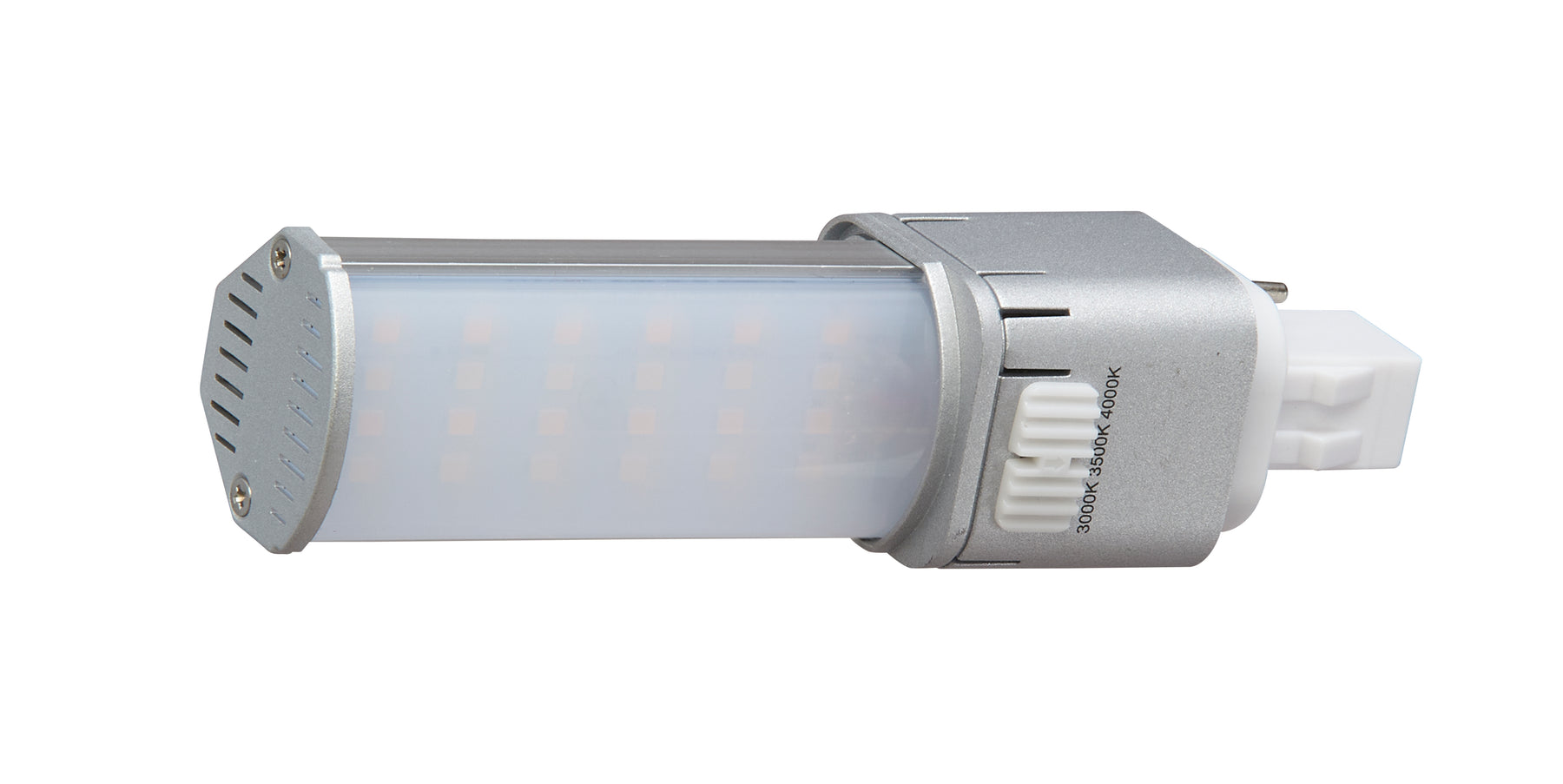

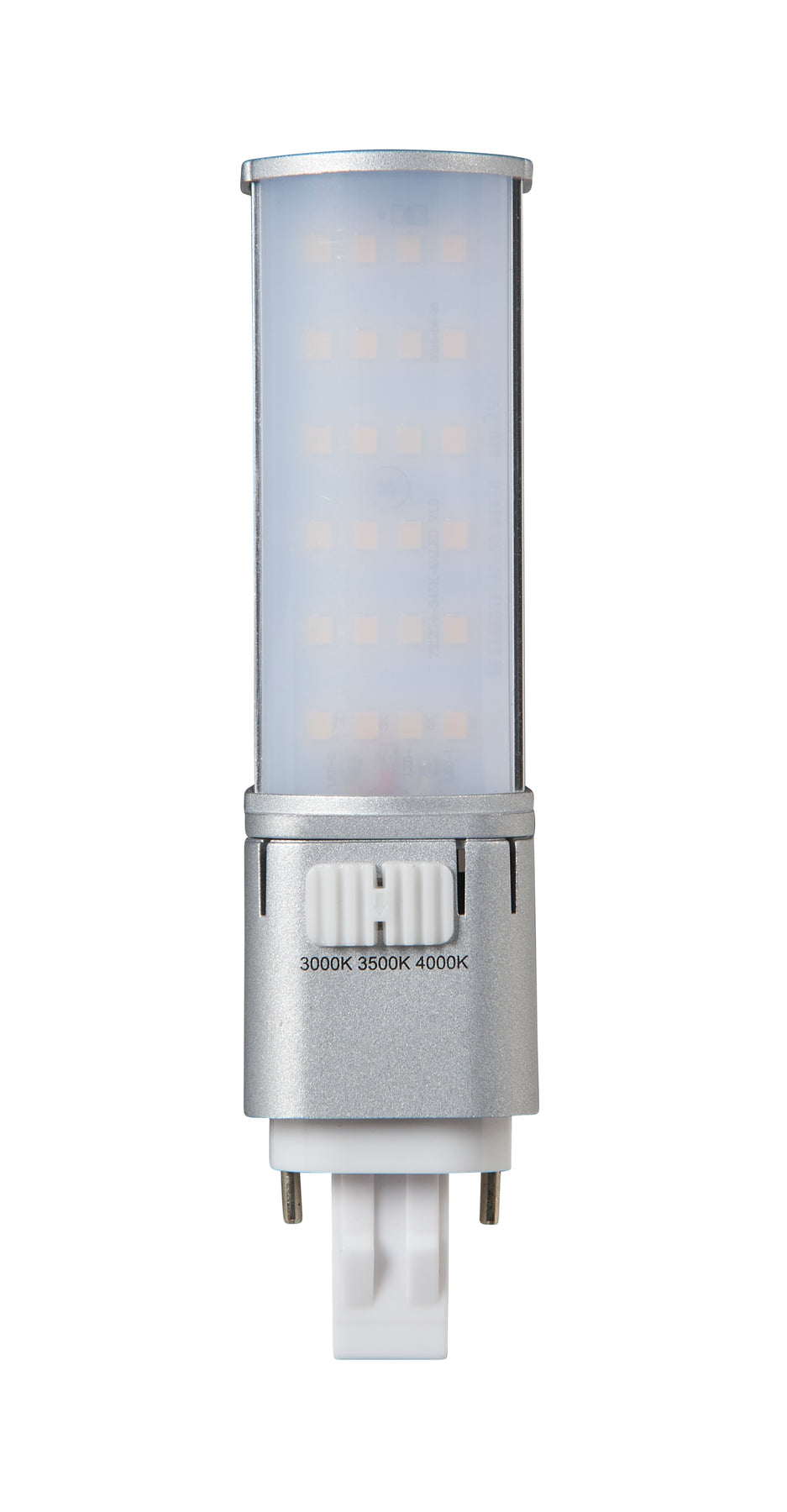

These Type A/B LED PL light bulbs have a 200 degree beam angle which easily integrates energy saving LED technology into your standard recessed lighting format. This bulb can operate off your existing magnetic ballast or you can bypass the ballast and operate off of your incoming 120-277V power. The LED-7312-FC1-G4 allows you to choose between 3000K Warm White, 3500K Bright White and 4000K Cool White color temperature and consume just 7 watts. cULus Listed, these LED PLs will produce 900-950 Lumens of light output, have a CRI of 80 and an average rated life of up to 50,000 hours. The physical dimensions of the Light Efficient Design LED PL retrofit are 5.4" maximum overall length (MOL) by 1.3" wide. These LED retrofit bulbs carry a 5 Year Warranty. Replaces 26 Watt 2-Pin fluorescent lamps.
The LED-7312-FC1-G4, 7 watt LED lamps are designed to retrofit existing fluorescent recessed can lighting installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. The bulb supports horizontal mounting, making it compatible with a wide range of fixture configurations without requiring additional hardware or adapters.
| Manufacturer | Light Efficient Design |
| MPN | LED-7312-FC1-G4 |
| SKU | LED-7312-FC1-G4 |
| UPC | 197810018896 |
| Lighting Technology | LED |
| Wattage | 7 Watts |
| Voltage | 120-277VAC Or Magnetic Ballasts |
| Color Temperature (Kelvin) | 3000K/3500K/4000K |
| Lumens | 900-950 Lumens |
| Efficiency (Lumens Per Watt) | 128-135 LPW |
| Ballast Operation | Type A/B Hybrid |
| Bulb Shape | PL |
| Base | GX23-2 |
| Beam Angle | 200º |
| Rated Life | 50,000 Hours |
| CRI (Color Rendering Index) | 80+ CRI |
| Mounting | Horizontal |
| Fluorescent Equivalent | 26 Watt 2-Pin CFL |
| Operating Temperature | -4°F to 113°F |
| Dimensions | 5.4" MOL x 1.3" MOD |
| Environment | Suitable for Damp Locations, Open/Semi-Enclosed Fixture Rated |
| Certifications | cULus |
| Warranty | 5 Years |
