Name: 700/800/900/1000 Watt LED 120-277V Gen 7 Sports Stadium Light Fixture 5000K
Brand: Westgate
SKU: SFX-G7-700-1000W-45D-50K
Price: 1846.01 USD
Availability: InStock

700/800/900/1000 Watt LED 120-277V Gen 7 Sports Stadium Light Fixture 5000K

DLC Listed, IP65, Wet Location Rated

Price

Color Temp

5000K Daylight

Finish Color

Black

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":49117567746292,"title":"5000K Daylight \/ Black","option1":"5000K Daylight","option2":"Black","option3":null,"sku":"SFX-G7-700-1000W-45D-50K","requires_shipping":true,"taxable":true,"featured_image":{"id":53621705081076,"product_id":9604055859444,"position":1,"created_at":"2026-08-11T15:56:37-04:00","updated_at":"2026-08-11T15:56:39-04:00","alt":null,"width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/SFX-G7-700-1000W-45D-50K.webp?v=1786478199","variant_ids":[49117567746292]},"available":true,"name":"700\/800\/900\/1000 Watt LED 120-277V Gen 7 Sports Stadium Light Fixture 5000K - 5000K Daylight \/ Black","public_title":"5000K Daylight \/ Black","options":["5000K Daylight","Black"],"price":184601,"weight":23201,"compare_at_price":null,"inventory_management":"shopify","barcode":"845060037739","featured_media":{"alt":null,"id":44633289556212,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/SFX-G7-700-1000W-45D-50K.webp?v=1786478199"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":49117567746292,"title":"5000K Daylight \/ Black","option1":"5000K Daylight","option2":"Black","option3":null,"sku":"SFX-G7-700-1000W-45D-50K","requires_shipping":true,"taxable":true,"featured_image":{"id":53621705081076,"product_id":9604055859444,"position":1,"created_at":"2026-08-11T15:56:37-04:00","updated_at":"2026-08-11T15:56:39-04:00","alt":null,"width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/SFX-G7-700-1000W-45D-50K.webp?v=1786478199","variant_ids":[49117567746292]},"available":true,"name":"700\/800\/900\/1000 Watt LED 120-277V Gen 7 Sports Stadium Light Fixture 5000K - 5000K Daylight \/ Black","public_title":"5000K Daylight \/ Black","options":["5000K Daylight","Black"],"price":184601,"weight":23201,"compare_at_price":null,"inventory_management":"shopify","barcode":"845060037739","featured_media":{"alt":null,"id":44633289556212,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/SFX-G7-700-1000W-45D-50K.webp?v=1786478199"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

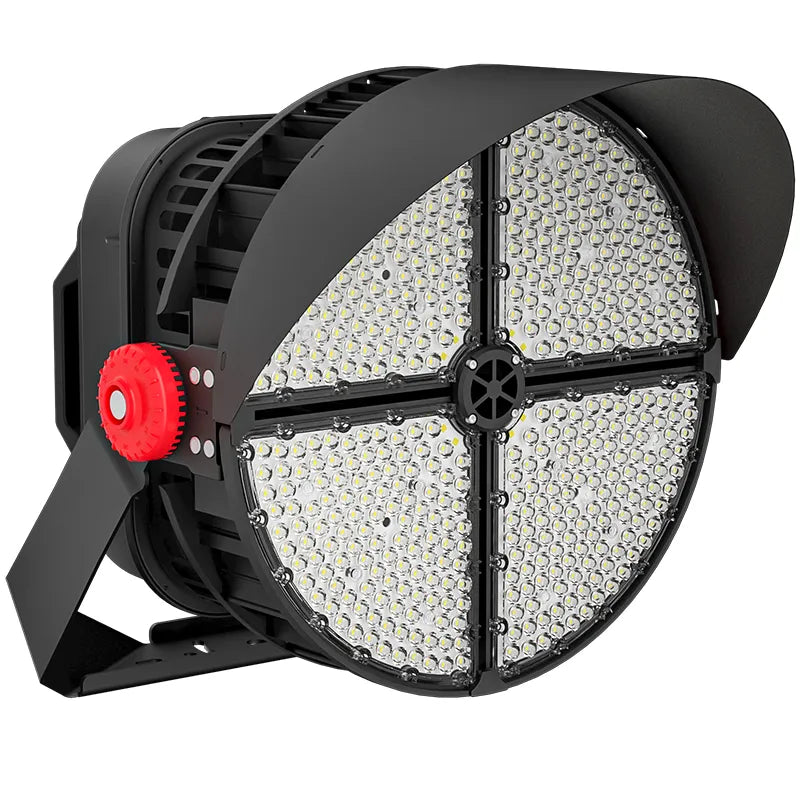

The Westgate Gen 7 Sports & Stadium LED Fixture (Part # SFX-G7-700-1000W-45D-50K) is engineered for demanding large-scale applications — from stadium fields and sports courts to parking lots, docks, railway yards, container facilities, trade shows, and architectural exterior lighting. Delivering 105,000 to 150,000 lumens at an impressive 150 LPW efficacy, this fixture provides powerful, uniform illumination across expansive areas with a focused 45° beam angle and a CRI of 84 or greater for accurate color rendering. DLC Listed (Product ID: S-JQKD7P), it meets the performance standards required for utility rebate eligibility.

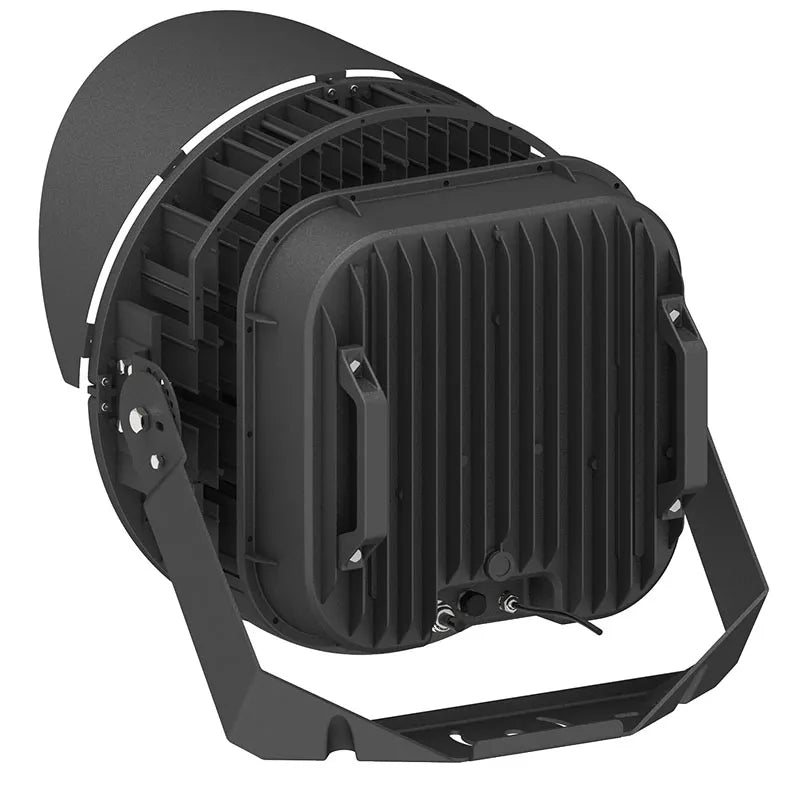

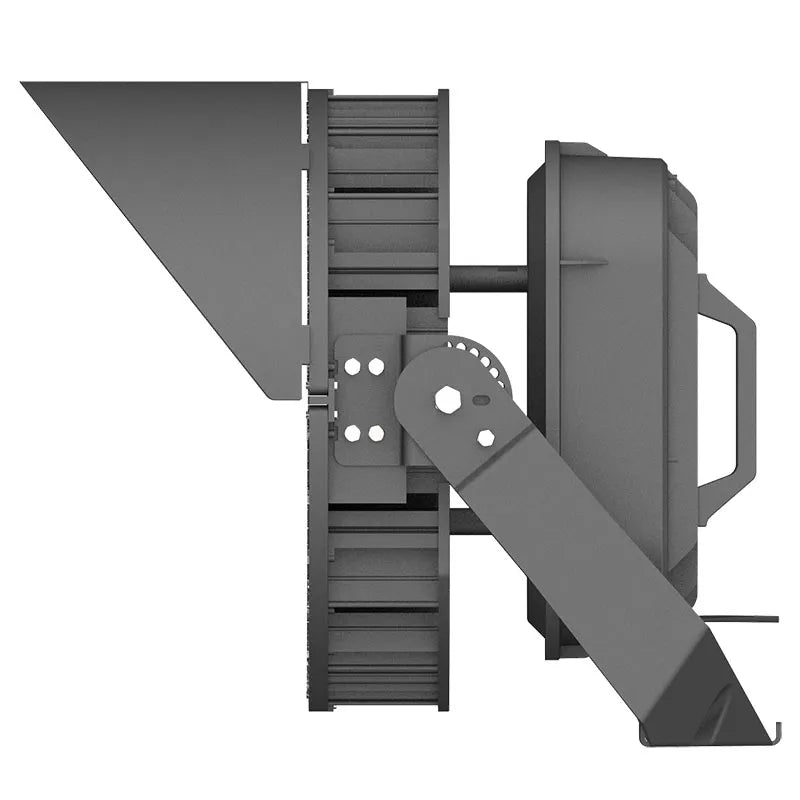

Built to last in the harshest environments, the fixture features a die-cast aluminum housing with a durable black powder coat finish, an IP65 wet location rating, and an operating temperature range of -40°F to 176°F. A 20KV lightning surge protection rating and a rated life of 70,000 hours ensure long-term reliability with minimal maintenance. The half shroud and U-mounting bracket are included, and the 3' SJTW 18/3 AWG cable simplifies installation. Measuring 25¾" H × 21¾" W × 24¼" D with an EPA of 1.8 sq. ft., it is backed by a 7-year warranty for complete peace of mind.

Specifications

Manufacturer	Westgate
MPN	SFX-G7-700-1000W-45D-50K
SKU	SFX-G7-700-1000W-45D-50K
UPC	845060037739
DLC Product ID	S-JQKD7P
Lighting Technology	LED
Wattage	700/800/900/1000 Watts
Voltage	120-277V
Surge Protection	20KV Lightning Surge Protection
Color Temperature (Kelvin)	5000K Daylight
Lumens	105,000/120,000/135,000/150,000 Lumens
Efficiency (Lumens Per Watt)	150 LPW
Beam Angle	45°
Rated Life	70,000 Hours
CRI (Color Rendering Index)	≥ 84
Finish Color	Black
Housing	Die-Cast Aluminum
Finish Treatment	Powder Coat Finish
Operating Temperature	-40°F to 176°F
Dimensions	25 3/4" H x 21 3/4" W x 24 1/4" D
Bug Rating	B5-U0-G4
Environment	Suitable for Wet Locations
Certifications	DLC Listed, IP65, UL
Warranty	7 Years

Documents

Westgate 700/800/900/1000 Watt Gen 7 Sports Stadium Light Fixture Specification Sheet

Westgate 700/800/900/1000 Watt Gen 7 Sports Stadium Light Fixture DLC Product Listing
