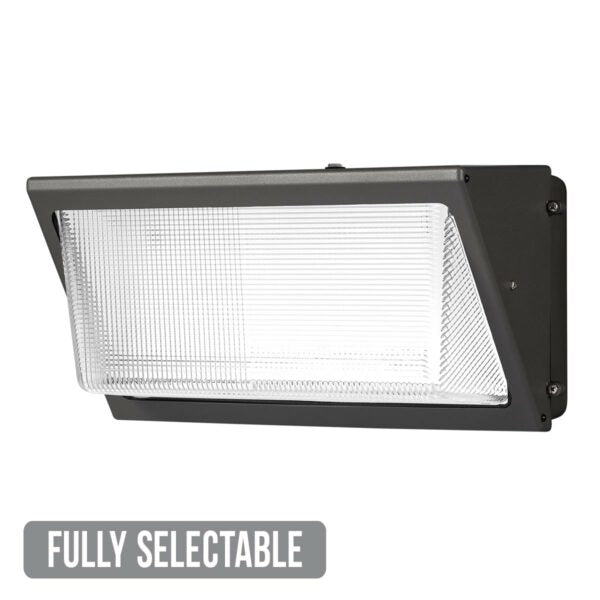

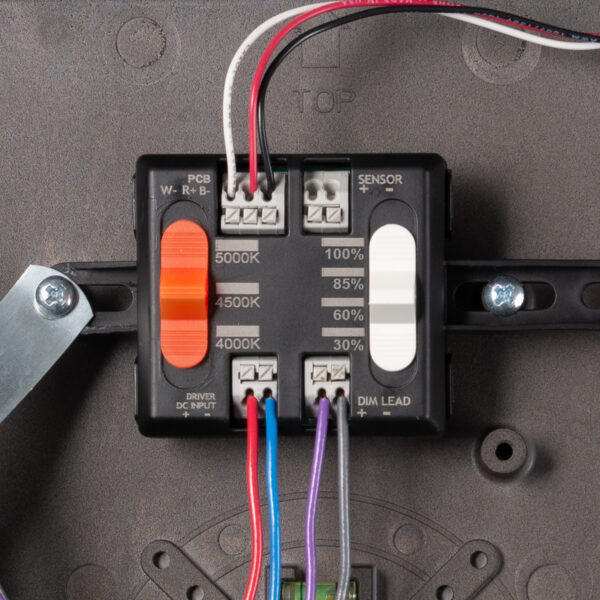

The Atlas Lighting Classic Series LED Large Wall Pack (Part # WLDS10-20L) delivers powerful, glare-free outdoor illumination in a familiar form factor that simplifies both new installations and retrofit upgrades. With selectable wattages of 73, 112 or 156 watts and field-adjustable color temperatures of 4000K, 4500K, or 5000K, a single fixture can replace up to 12 standard wall lights — dramatically reducing stocking complexity and giving contractors the flexibility to dial in the right output for any application.
Built for durability, the rugged die-cast aluminum housing provides proven environmental protection for the LED modules while maintaining the traditional fixture appearance that allows facilities to upgrade gradually without disrupting the overall aesthetic. The proprietary optical design positions LED modules to direct light forward and downward, producing a smooth, uniform ground-level light pattern while eliminating offensive glare. The high-efficiency lens assembly further targets illumination precisely where it's needed to satisfy demanding outdoor lighting requirements.

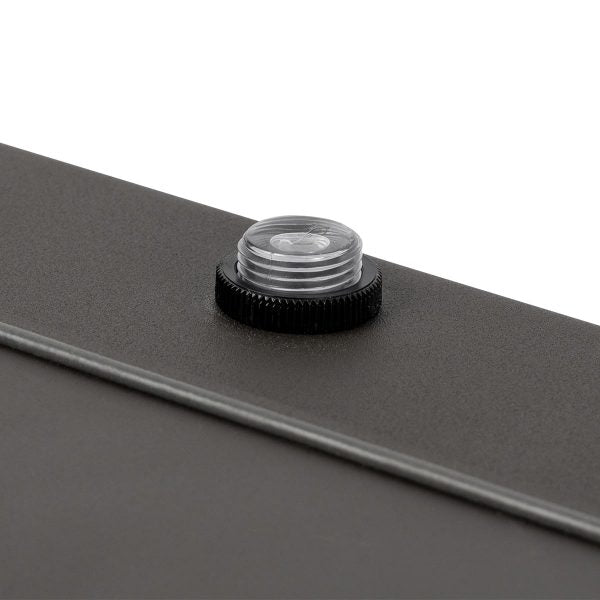

Rated for wet locations and DLC Listed, this wall pack is BAA Compliant and cULus certified, making it suitable for government and commercial projects. It operates on 120–277V with 0–10V dimming capability and comes with a 120–277V photocontrol installed. With a lifespan exceeding 200,000 hours, output ranging from 9,566 to 19,975 lumens at up to 138 LPW, 70 CRI, and the ability to replace up to 1000W metal halide, this fixture delivers long-term energy savings with minimal maintenance. All Atlas LED luminaires are tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards. Made in the USA. Backed by a 5-year warranty.
