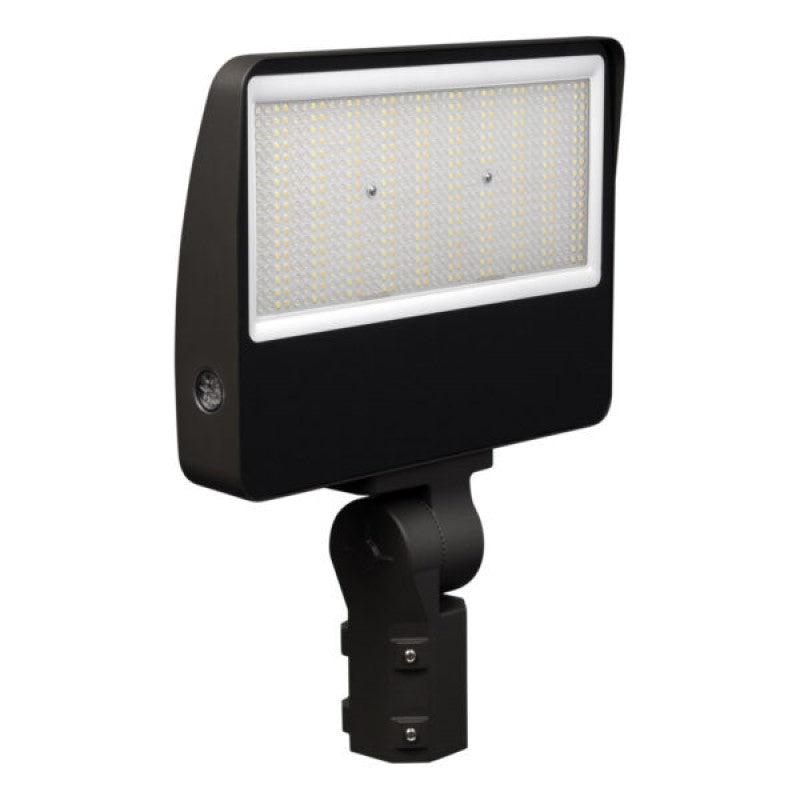

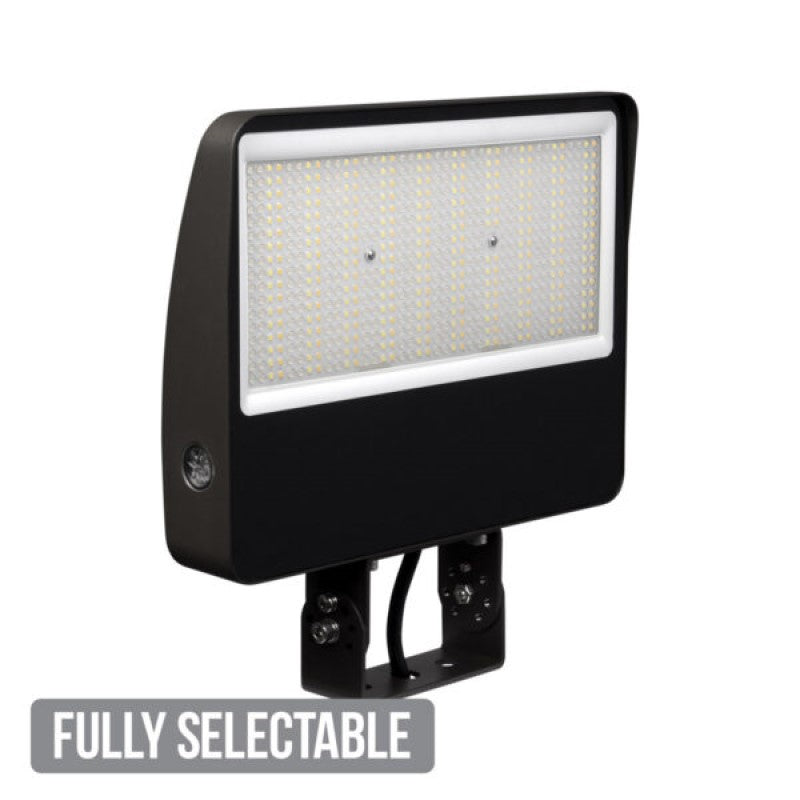

Name: 75/100/125/150 Watt 120-277V LED Field Configurable Large Flood Light with Slipfitter and Trunnion 3000K/4000K/5000K
Brand: Atlas Lighting
SKU: FCLF11-20L
Price: 198.46 USD
Availability: InStock

Green Electrical Supply 75/100/125/150 Watt 120-277V LED Field Configurable Large Flood Light with Slipfitter and Trunnion 3000K/4000K/5000K Selectable Bronze

Green Electrical Supply 75/100/125/150 Watt 120-277V LED Field Configurable Large Flood Light with Slipfitter and Trunnion 3000K/4000K/5000K

DLC Premium Listed, IP65, UL Certified, Wet Location Rated

Price

Color Temp

Selectable

Finish Color

Bronze

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":67989851865332,"title":"Selectable \/ Bronze","option1":"Selectable","option2":"Bronze","option3":null,"sku":"FCLF11-20L","requires_shipping":true,"taxable":true,"featured_image":{"id":56043020550388,"product_id":15471451570420,"position":1,"created_at":"2026-10-29T16:15:09-04:00","updated_at":"2026-10-29T16:15:11-04:00","alt":"Green Electrical Supply 75\/100\/125\/150 Watt 120-277V LED Field Configurable Large Flood Light with Slipfitter and Trunnion 3000K\/4000K\/5000K Selectable Bronze","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/FCLF11-20L.jpg?v=1793304911","variant_ids":[67989851865332]},"available":true,"name":"75\/100\/125\/150 Watt 120-277V LED Field Configurable Large Flood Light with Slipfitter and Trunnion 3000K\/4000K\/5000K - Selectable \/ Bronze","public_title":"Selectable \/ Bronze","options":["Selectable","Bronze"],"price":19846,"weight":5761,"compare_at_price":null,"inventory_management":"shopify","barcode":"765364071553","featured_media":{"alt":"Green Electrical Supply 75\/100\/125\/150 Watt 120-277V LED Field Configurable Large Flood Light with Slipfitter and Trunnion 3000K\/4000K\/5000K Selectable Bronze","id":47030596403444,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/FCLF11-20L.jpg?v=1793304911"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":67989851865332,"title":"Selectable \/ Bronze","option1":"Selectable","option2":"Bronze","option3":null,"sku":"FCLF11-20L","requires_shipping":true,"taxable":true,"featured_image":{"id":56043020550388,"product_id":15471451570420,"position":1,"created_at":"2026-10-29T16:15:09-04:00","updated_at":"2026-10-29T16:15:11-04:00","alt":"Green Electrical Supply 75\/100\/125\/150 Watt 120-277V LED Field Configurable Large Flood Light with Slipfitter and Trunnion 3000K\/4000K\/5000K Selectable Bronze","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/FCLF11-20L.jpg?v=1793304911","variant_ids":[67989851865332]},"available":true,"name":"75\/100\/125\/150 Watt 120-277V LED Field Configurable Large Flood Light with Slipfitter and Trunnion 3000K\/4000K\/5000K - Selectable \/ Bronze","public_title":"Selectable \/ Bronze","options":["Selectable","Bronze"],"price":19846,"weight":5761,"compare_at_price":null,"inventory_management":"shopify","barcode":"765364071553","featured_media":{"alt":"Green Electrical Supply 75\/100\/125\/150 Watt 120-277V LED Field Configurable Large Flood Light with Slipfitter and Trunnion 3000K\/4000K\/5000K Selectable Bronze","id":47030596403444,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/FCLF11-20L.jpg?v=1793304911"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

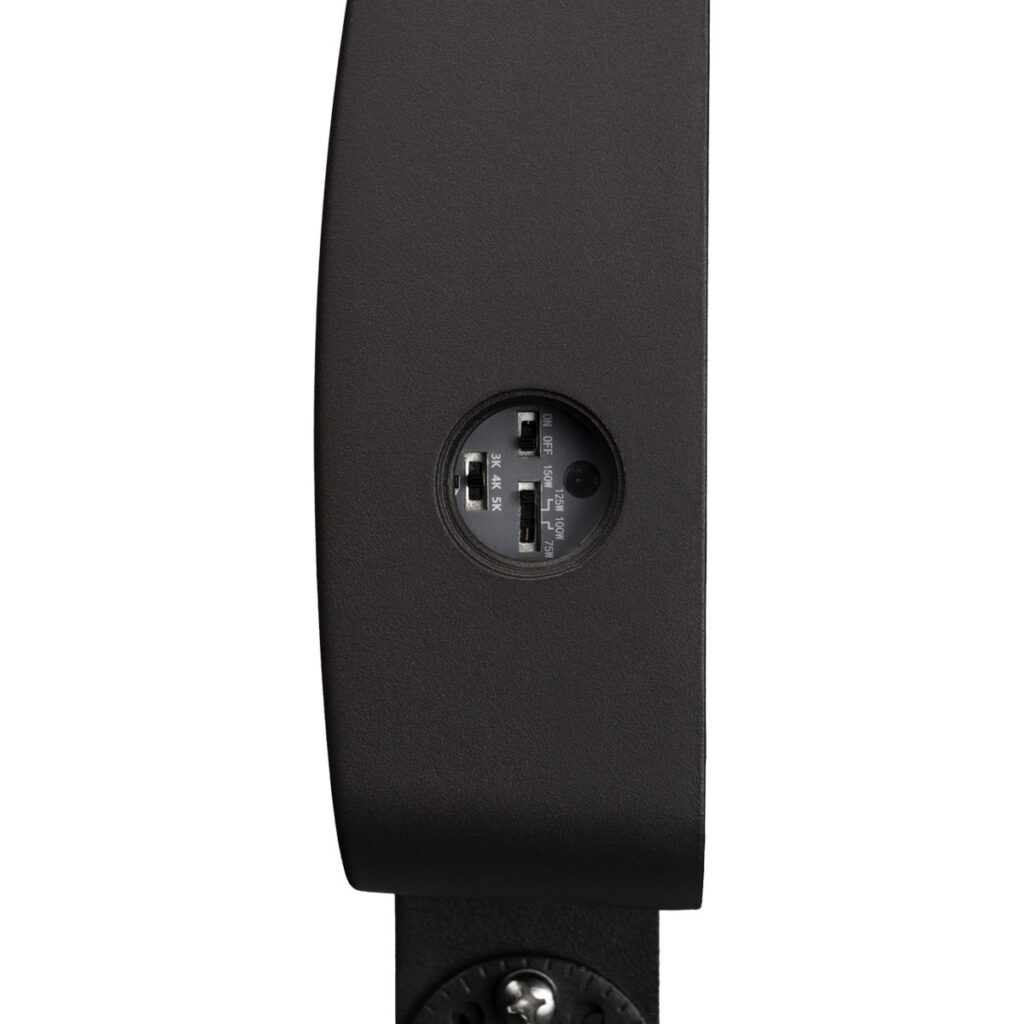

The Atlas Lighting FCLF11-20L field-configurable large LED flood light offers adjustable illumination for commercial and industrial applications. Select from 75, 100, 125, or 150 watts and 3000K, 4000K, or 5000K color temperatures to suit your installation. Operating on 120–277V, this compact fixture delivers 11,297–21,149 lumens with an efficacy range of 143–164 lumens per watt and an 80 CRI. The 75 watt setting replaces up to a 250/400 watt metal halide lamp, while the 100, 125, and 150 watt settings replace up to a 400 watt metal halide lamp.

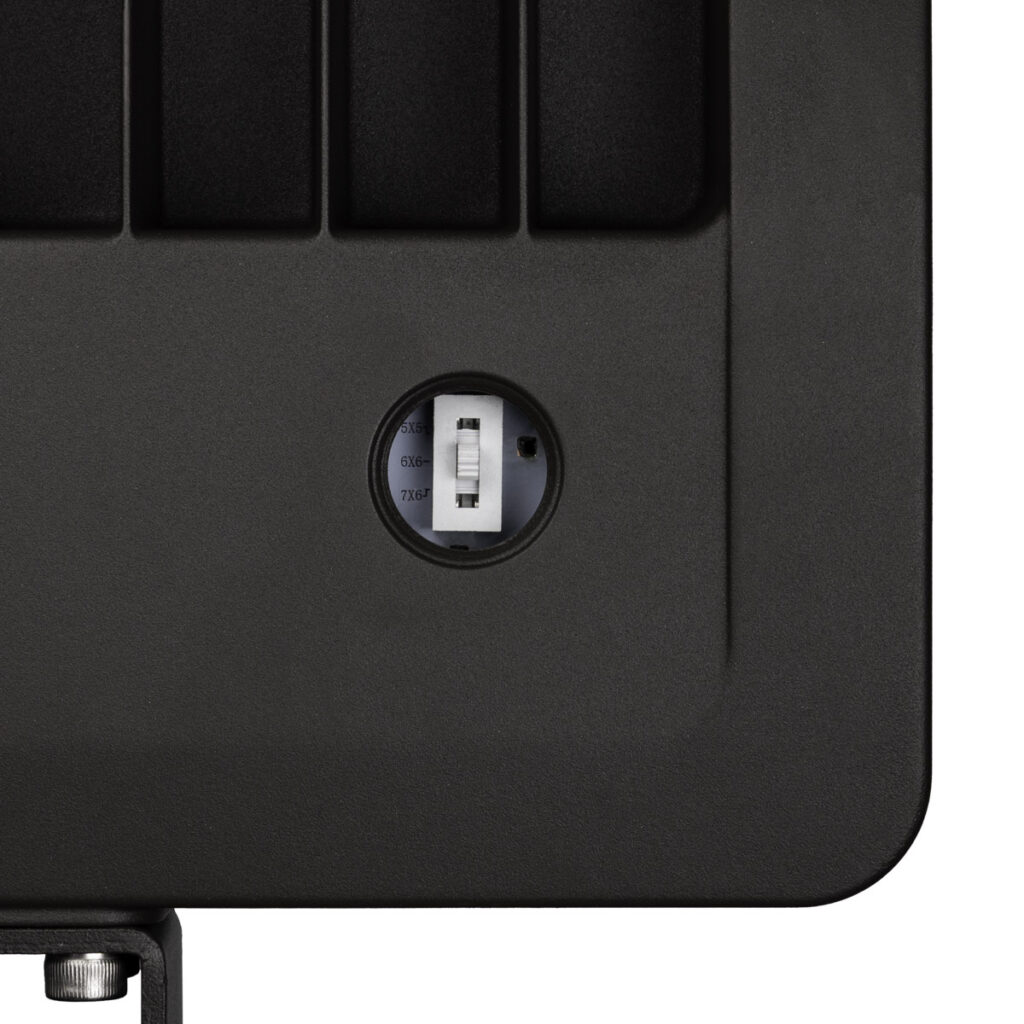

A die-cast aluminum housing helps maintain cooler operating temperatures to support light output and LED longevity. Both slipfitter and trunnion mounts are included, providing installation flexibility. The injection-molded acrylic optic offers NEMA 7x6, 6x6, and 5x5 flood distributions, allowing the light pattern to be configured for the application. Published lumen output is based on the 6x6 distribution; multiply lumens by 0.93 for the 7x6 distribution or by 0.94 for the 5x5 distribution.

Featuring 0–10V dimming and an internal on/off photocontrol, the FCLF11-20L supports adjustable light levels and automatic light control. Long-life LEDs provide 100,000 hours of operation while maintaining at least 70% of initial light output (L70). The fixture operates in temperatures from -40°C to +50°C (-40°F to +122°F), is certified to UL/cUL standards for wet locations, carries an IP65 rating, and is DLC Premium Listed. A five-year warranty provides added peace of mind.

The fixture measures 14.5 inches long by 2.625 inches wide, with an overall height of 18.625 inches with the slipfitter mount or 14.5 inches with the trunnion mount.

Specifications

Manufacturer	Atlas Lighting
MPN	FCLF11-20L
SKU	FCLF11-20L
UPC	765364071553
DLC Product ID	S-9HWR2V
Lighting Technology	LED
Wattage	75/100/125/150 Watts
Voltage	120-277V
Color Temperature (Kelvin)	3000K/4000K/5000K
Lumens	11,297–21,149 Lumens
Efficiency (Lumens Per Watt)	143-164 LPW
Dimmable	Yes, 0-10V
Rated Life	100,000 Hours (L70)
CRI (Color Rendering Index)	80 CRI
Finish Color	Bronze
Mounting	Slipfitter & Trunnion
Metal Halide Equivalent	75 Watt = 250/400 Watts, 100/125/150 Watt = 400 Watt
Dimensions	14.5" L x 2.625" W (18.625" H w/Slipfitter & 14.5" H w/Trunnion)
Environment	Wet Location
Certifications	cULus, DLC Premium Listed, IP65
Warranty	5 Years

Wattage	75 Watts
Color Temperature (Kelvin)	3000K Warm White	4000K Cool White	5000K Daylight
Lumens	11,297 Lumens	11,638 Lumens	11,734 Lumens
Efficiency (Lumens Per Watt)	155 LPW	164 LPW	163 LPW

Wattage	100 Watts
Color Temperature (Kelvin)	3000K Warm White	4000K Cool White	5000K Daylight
Lumens	14,469 Lumens	15,120 Lumens	15,081 Lumens
Efficiency (Lumens Per Watt)	151 LPW	162 LPW	159 LPW

Wattage	125 Watts
Color Temperature (Kelvin)	3000K Warm White	4000K Cool White	5000K Daylight
Lumens	17,187 Lumens	18,142 Lumens	18,058 Lumens
Efficiency (Lumens Per Watt)	146 LPW	160 LPW	155 LPW

Wattage	150 Watts
Color Temperature (Kelvin)	3000K Warm White	4000K Cool White	5000K Daylight
Lumens	19,802 Lumens	21,149 Lumens	20,760 Lumens
Efficiency (Lumens Per Watt)	143 LPW	158 LPW	151 LPW

Documents

Atlas 75/100/125/150 Watt 120-277V LED Field Configurable Large Flood Light Specification Sheet

Atlas 75/100/125/150 Watt 120-277V LED Field Configurable Large Flood Light Installation Instructions

Atlas 75/100/125/150 Watt 120-277V LED Field Configurable Large Flood Light DLC Product Listing
