Lightolier LED Flat Downlight dual select provides an easy and quick to install downlight solution without the traditional frame and reflector. The perfect solution for installation in low plenum and existing shallow space ceilings. The CCT selector and Lumen selector features make it easy to adjust both features at the time of installation avoiding extra stock.

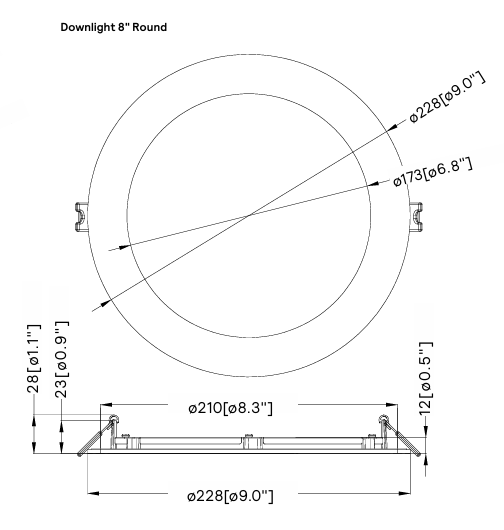

This 8-inch round fixture operates at 815 or 24 watts with field-selectable output of 1300 or 2000 lumens, making it easy to dial in the right light level at the time of installation. Five color temperature options — 2700K, 3000K, 3500K, 4000K, and 5000K — are selectable on-site, with default settings of 4000K and maximum available lumens. The fixture delivers a 90 CRI rating, a wide 109° beam angle, and a smooth, diffused light pattern through a high-quality plastic lens. It ships in a matte white finish, and a black trim (part # DSFD8RTBK) is available separately.
The FD28RSLMZ10SCTUW is built for straightforward installation. The aluminum flange features a powder-coat finish, and the extruded aluminum and steel junction box connects to the fixture via a locking power connector with a standard 14.96 in (38 cm) cable length. An installation template, foam gasket, and quick connectors are all included. The fixture supports 0-10V dimming and is compatible with UNV (0-10V) dimmers — refer to the dimmer compatibility list for specifics. The isolated Class 2 driver is dedicated to a single LED module and cannot be shared.
Rated for wet locations (covered ceiling only) and IC-rated for direct contact with thermal insulation, this downlight is suited for a wide range of ceiling conditions. It operates across a temperature range of -30°C to 40°C and features AirSeal technology for minimal air leakage. Compliance credentials include RoHS, FCC, ETL listing to UL 1598, ENERGY STAR® certification, and Title 24 (JA8) compliance. Expected lifetime is 50,000 hours, backed by a 5-year warranty.
