8 Inch 18 Watt Commercial Smooth LED Slim Downlight 2700/3000/3500/4000/5000K

Halco Lighting Technologies SKU: 89170
Halco Lighting Technologies 8 Inch 18 Watt Commercial Smooth LED Slim Downlight 2700/3000/3500/4000/5000K

8 Inch 18 Watt Commercial Smooth LED Slim Downlight 2700/3000/3500/4000/5000K

Halco Lighting Technologies SKU: 89170
  • Energy Star, JA8 Compliant, Title 24 Compliant
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

The Halco ProLED Selectable Slim Downlight Series provides a high performing, ultra-slim, modern solution for new construction and retrofit downlighting projects. Select between three lumen outputs and five color temperatures. The flat, frosted lensed fixtures can me dimmed using standard Triac, ELV or 0-10V dimming driver. The Commercial Slim Downlight family of fixtures are designed with the installer and end user in mind. Spring clips with remote mounted driver box eliminate the need for additional housings. A perfect choice for modern residential, commercial, educational or hospitality applications.

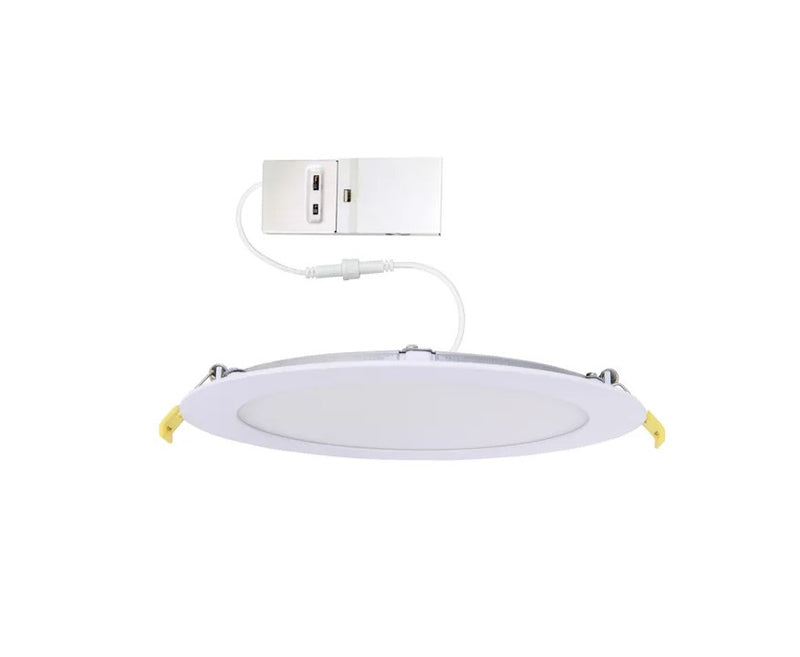

This is the Halco ProLED CSDL-8-LS-CS-ST-DDV, a dimmable 8 inch LED canless wafer downlight. Halco's commercial LED Downlights are ultra-efficient, super-easy and very affordable. These LED downlight kits provide between 1,579-1,776 lumens of either 2700K, 3000K, 3500K, 4000K or 5000K brilliant illumination. These dedicated 120-277 volt downlights meet ENERGY STAR requirements, as well as being Wet Location Rated.

Manufacturer Halco Lighting Technologies
MPN CSDL-8-LS-CS-ST-DDV
SKU 89170
UPC 807154891702
Lighting Technology LED
Wattage 18 Watts
Voltage 120-277V
Frequency 50/60Hz
Color Temperature (Kelvin) 2700K Warm White 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 1,579 Lumens 1,706 Lumens 1,754 Lumens 1,776 Lumens 1,745 Lumens
Efficiency (Lumens Per Watt) 91 LPW 101 LPW 103 LPW 105 LPW 102 LPW
Dimmable Yes, TRIAC/ELV and 0-10V Dimming
Beam Angle 110 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 90 CRI
Power Factor >0.9
Housing Aluminum
Lens Frosted PMMA Diffuser
Fixture Dimensions 9" Diameter x 1-1/16" H
Driver Dimensions 6" x 3-1/8" x 1-3/8"
Certifications Energy Star, Title 24 Compliant, JA8 Compliant
Environment Wet Location
Warranty 5 Year Limited



Halco Commercial LED Slim Downlight Specification Sheet

Halco Commercial LED Slim Downlight Installation Instructions
