8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K

Satco SKU: TH752
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K
8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K

8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head 2700K/3000K/3500K/4000K/5000K

Satco SKU: TH752
  • ETL Certified, JA8 Compliant, Title 24 Compliant
/
Color Temp
Finish Color
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

SATCO|NUVO LED Track Heads combine refined design with outstanding versatility for contemporary spaces. These sleek, low-profile fixtures feature 5 CCT selectability (2700K–5000K) plus Dim to Warm technology (3000K–2000K), delivering adaptable color tuning with the warm, inviting glow of incandescent light as they dim. Available in H-style and J-style configurations, with round or square housings and finishes in white, black, or brushed nickel, they offer 36° and 48° beam angles for tailored illumination. An adjustable head allows precise horizontal and vertical aiming, while the prismatic lens enhances beam quality. Ideal for restaurants, hospitality, offices, kitchens, retail, and more.

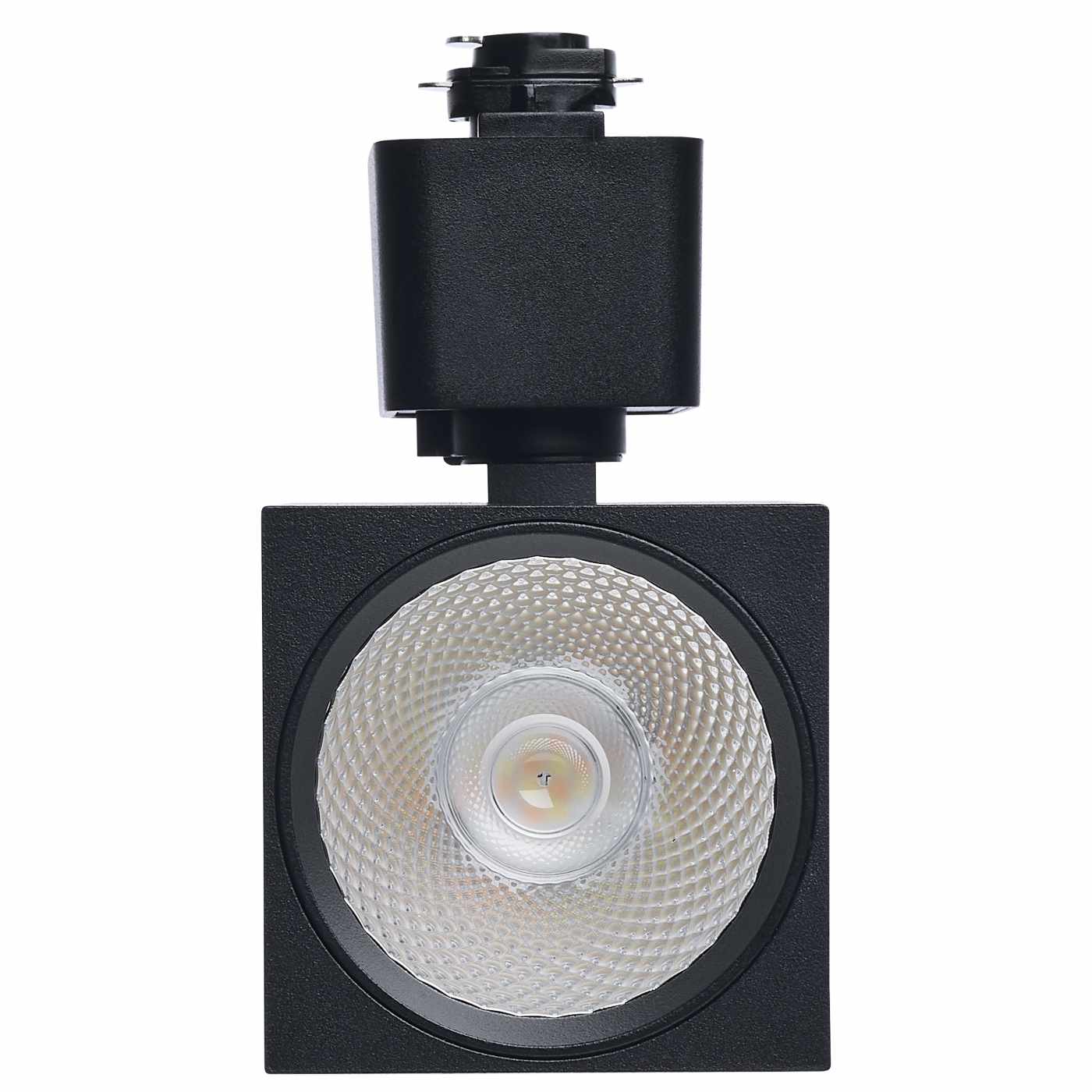

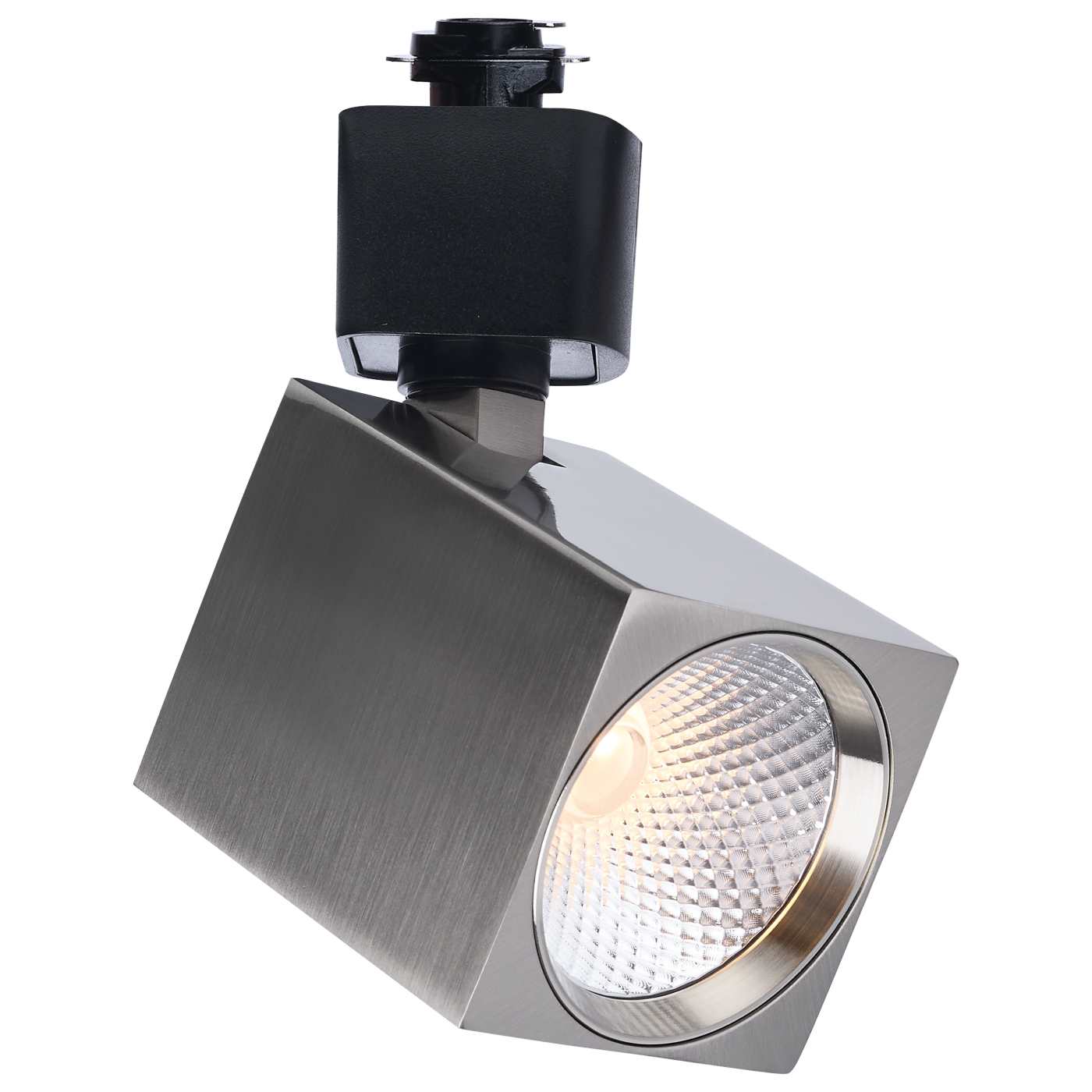

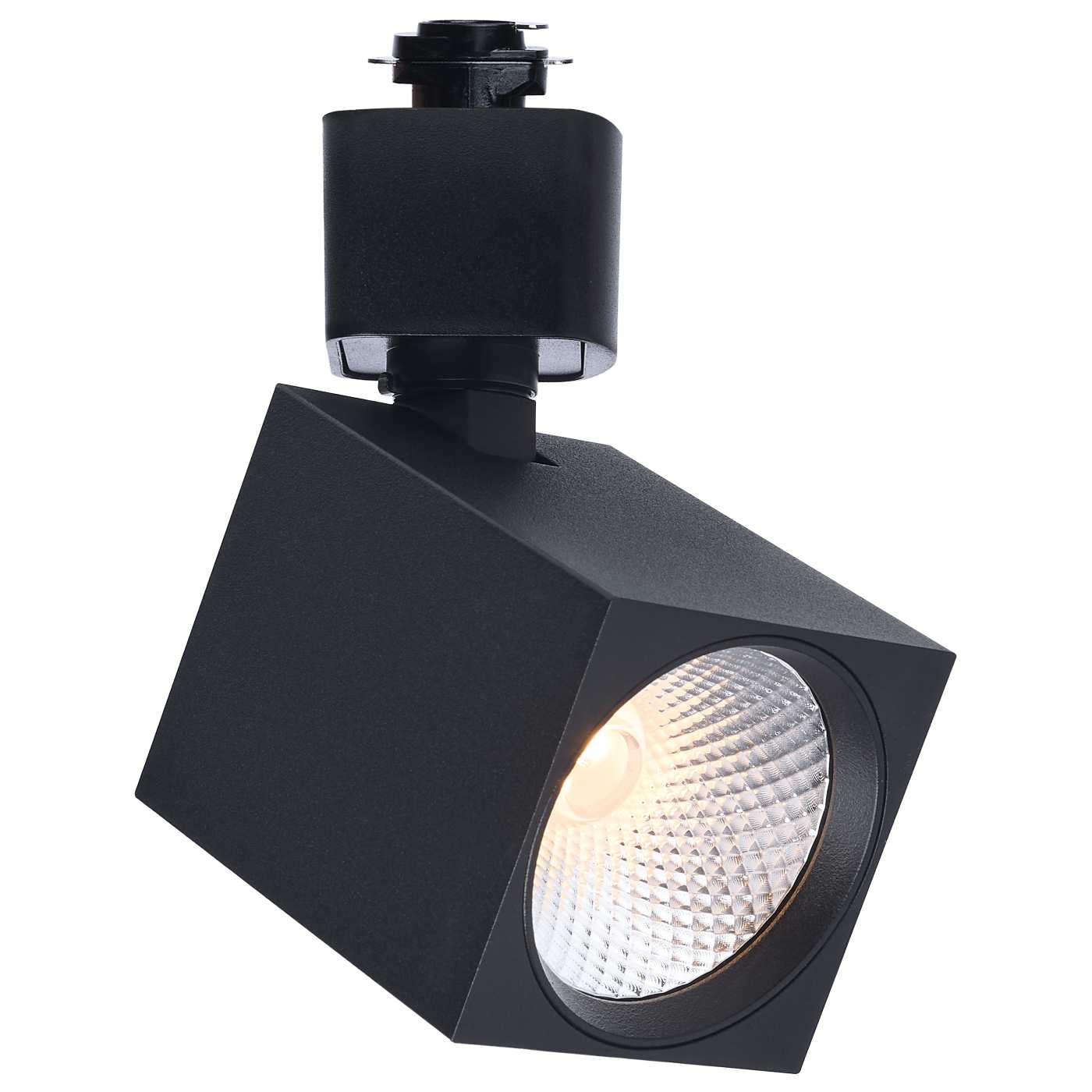

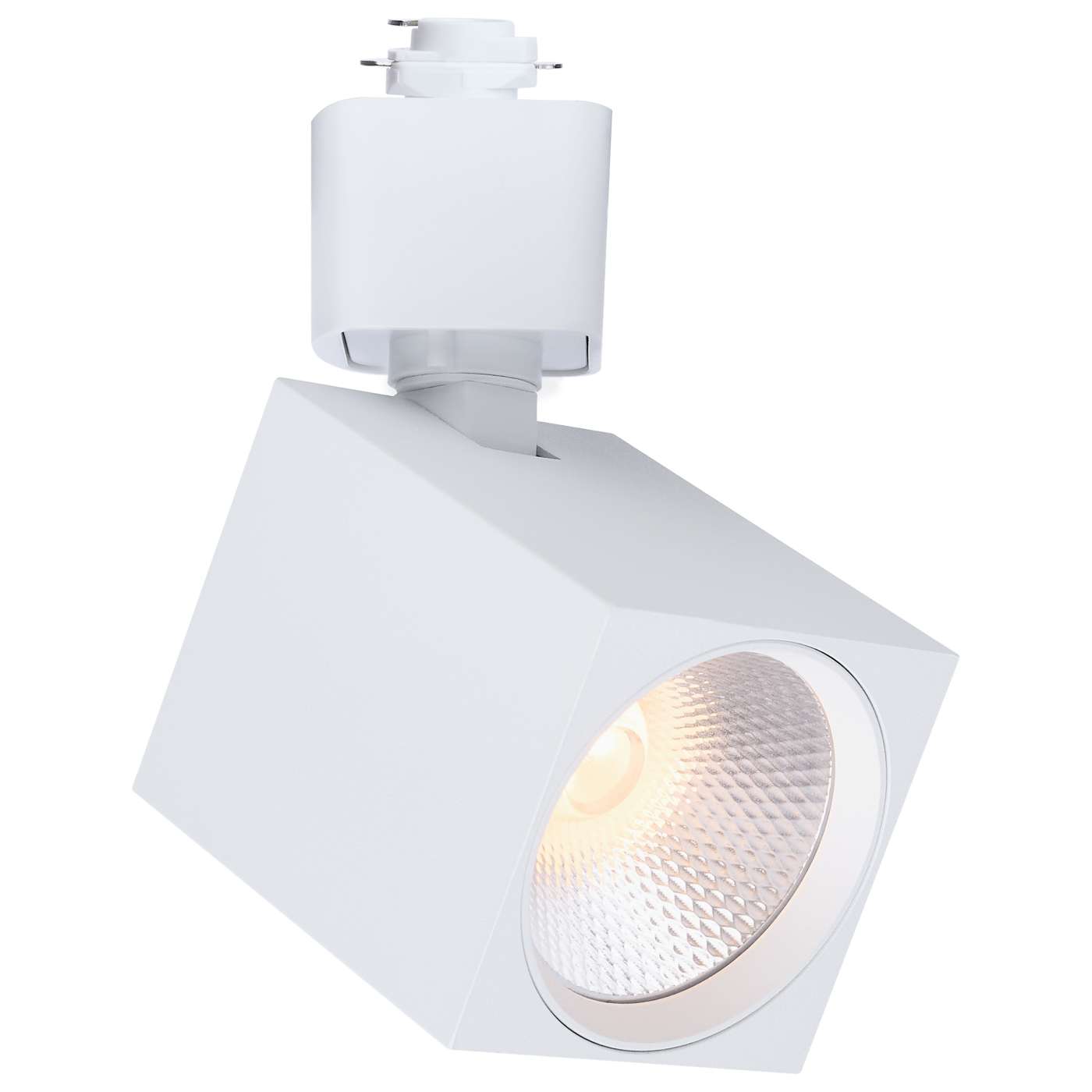

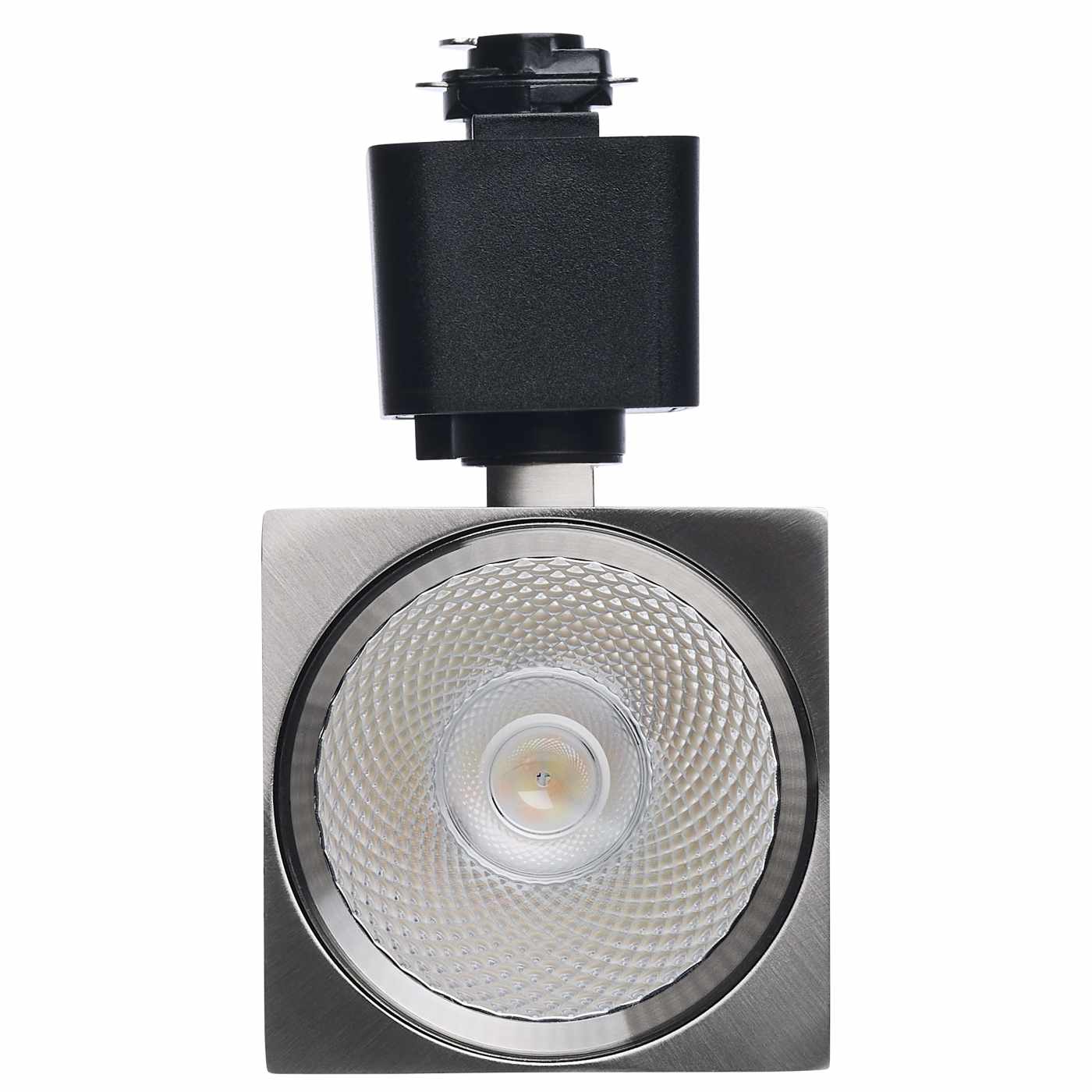

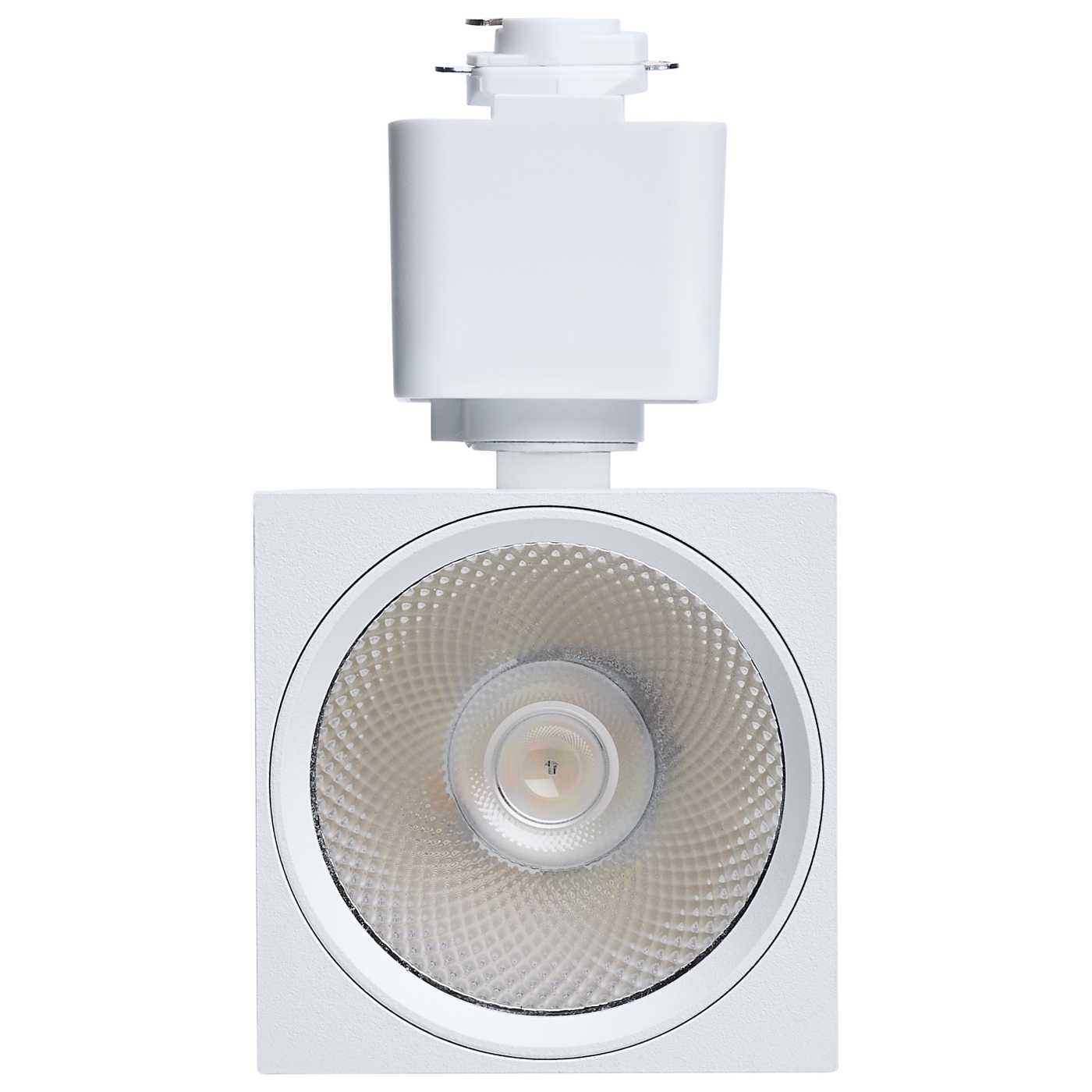

The Satco H Style Square 8 Watt LED track heads are available in black (TH752), brushed nickel (TH753) or white (TH751). The 8-watt track lighting heads produce 500-600 lumens of 2700K/3000K/3500K/4000K/5000K and Dim to Warm selectable color temperature with a 90 CRI.  These fixtures are dimmable, have 36-degree beam angle and carry a 3 year limited warranty.

Specifications
Manufacturer Satco
Finish Color Black Brushed Nickel White
MPN TH752 TH753 TH751
SKU TH752 TH753 TH751
UPC 045923412219 045923412226 045923412202
Lighting Technology LED
Wattage 8 Watts
Voltage 120V
Color Temperature (Kelvin) 2700K/3000K/3500K/4000K/5000K & Dim to Warm 3000K-2700K Selectable
Lumens 500-600 Lumens
Efficiency (Lumens Per Watt) 63-75 LPW
Dimmable Phase-Cut Dimmable
Beam Angle 36 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 90 CRI
Housing Aluminum
Lens Polycarbonate
Operating Temperature -4F to +104F (-20C to +40C)
Dimensions 2.95" L x 2.68" W x 5.31" H
Environment Indoor Dry Location
Certifications cETLus, JA8 Compliant, Title 24 Compliant, FCC, RoHS
Warranty 3 year Warranty
Documents

Satco 8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head Specification Sheet - Black

Satco 8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head Specification Sheet - Brushed Nickel

Satco 8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head Specification Sheet - White

Satco 8 Watt 36 Degree Square LED H-Style Dim to Warm Track Head Intsallation Instructions
