80/100/120 Watt LED Selectable Slim Wall Pack 3000/4000/5000K

Keystone Technologies SKU: KT-WPLED120PS-L4-8CSB-VDIM
Keystone Technologies 80/100/120 Watt LED Selectable Slim Wall Pack 3000/4000/5000K Selectable

80/100/120 Watt LED Selectable Slim Wall Pack 3000/4000/5000K

Keystone Technologies SKU: KT-WPLED120PS-L4-8CSB-VDIM
  • DLC Listed, TAA Compliant
Regular price $207.61
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

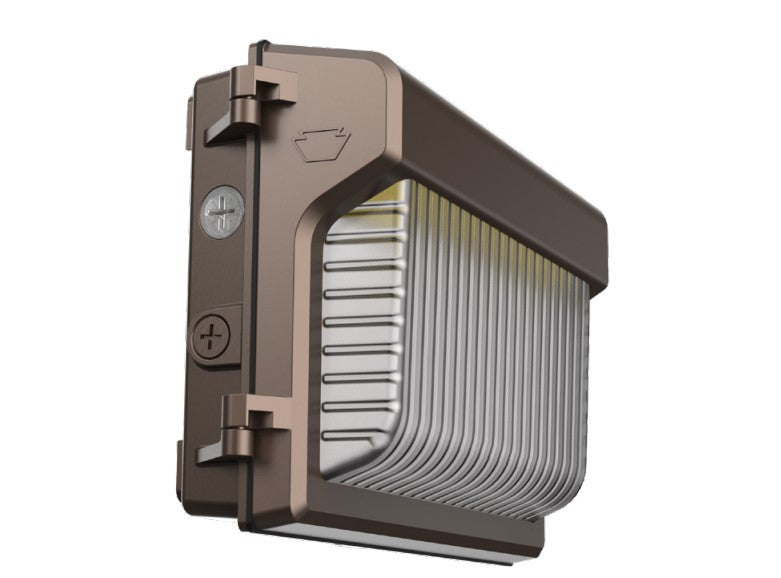

Keystone Techonologies' XFit Traditional-Slim LED Wall Pack features robust lighting output capabilities – up to 17,000-plus lumens – in an updated, modern design. It keeps the same footprint as Traditional Wall Packs, so there’s no need to repaint or redo the area around the installation, and it’s equipped with an easily accessible driver for simple maintenance. With Keystone Power and Color Select technology for field-adjustable outputs, and a pre-installed photocell for daylight sensing, the Slim Wall Pack offers customizable features to go with its powerful, uniform light distribution. It’s the perfect fit for upgrading legacy wall packs.

The Keystone KT-WPLED120PS-L4-8CSB-VDIM selectable slim LED wall pack has a die-cast aluminum housing with (5) 1/2" threaded conduit hubs. There is (1) located on the back and (1) on all four sides of the fixture. It consumes 80/100/120 watts of 120-277V energy and delivers between 11,280-17,640 lumens of your choice of either 3000K, 4000K or 5000K LED light output. This LED wall pack includes a built in dusk-to-dawn photocell placed behind a translucent 3/4" threaded plug that has an anti-yellowing agent. Typical applications for this color select wall pack would include: perimeters, pathways, loading docks, and other general security lighting requirements. This DLC Listed fixture is suitable for wet locations and carries a 5 year warranty.

Manufacturer Keystone Technologies
MPN KT-WPLED120PS-L4-8CSB-VDIM
SKU KT-WPLED120PS-L4-8CSB-VDIM
UPC 843654155555
Lighting Technology LED
Voltage 120-277V
Dimmable Yes, 0-10V Dimming
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.95
THD (Total Harmonic Distortion) <20%
Finish Color Bronze
Lens Glass
Metal Halide Equivalent 400 Watts
Operating Temperature -40ºC/-40ºF to 50ºC/122ºF
Dimensions 17.87" x 9.29" x 4.72"
Certifications DLC Listed, IP65, TAA Compliant
DLC Product ID S-1L09M4
Environment Wet Location
Warranty 5 Year Standard



Wattage 80 Watt
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 11,280 Lumens 11,520 Lumens 11,440 Lumens
Efficiency (Lumens Per Watt) 141 LPW 144 LPW 143 LPW



Wattage 100 Watt
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 13,900 Lumens 14,300 Lumens 13,900 Lumens
Efficiency (Lumens Per Watt) 139 LPW 143 LPW 139 LPW



Wattage 120 Watt
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 17,040 Lumens 17,640 Lumens 16,920 Lumens
Efficiency (Lumens Per Watt) 142 LPW 147 LPW 141 LPW
