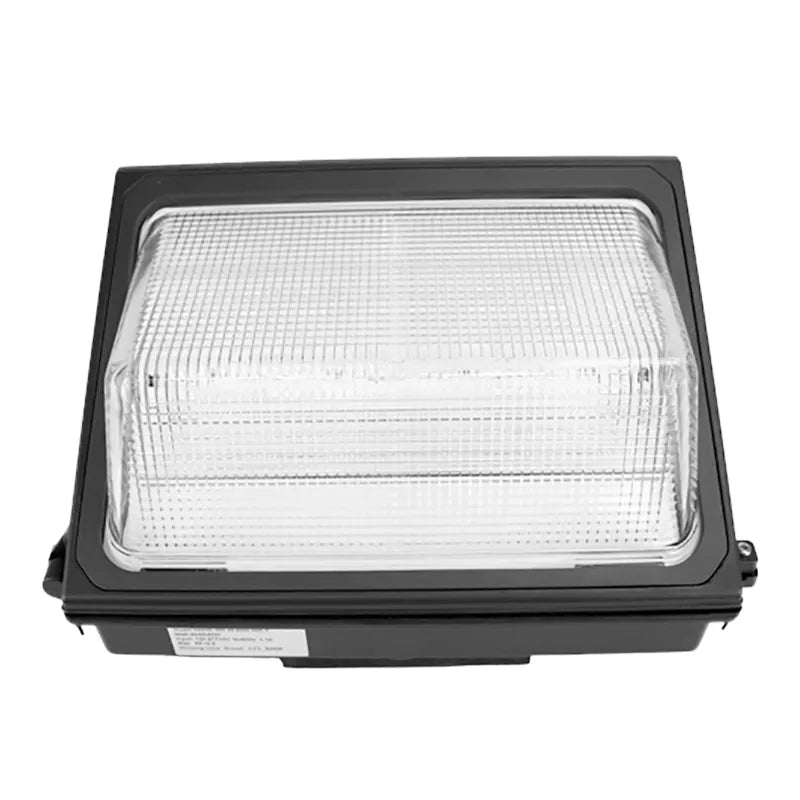

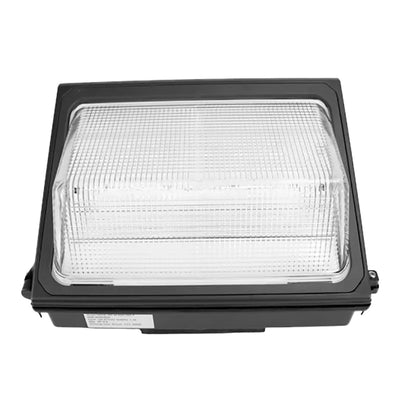

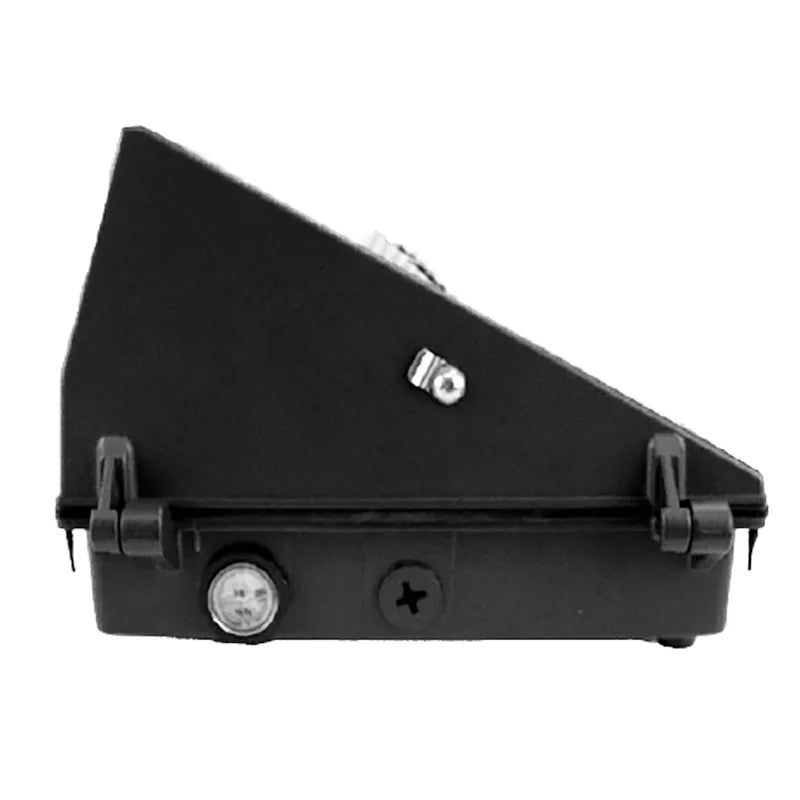

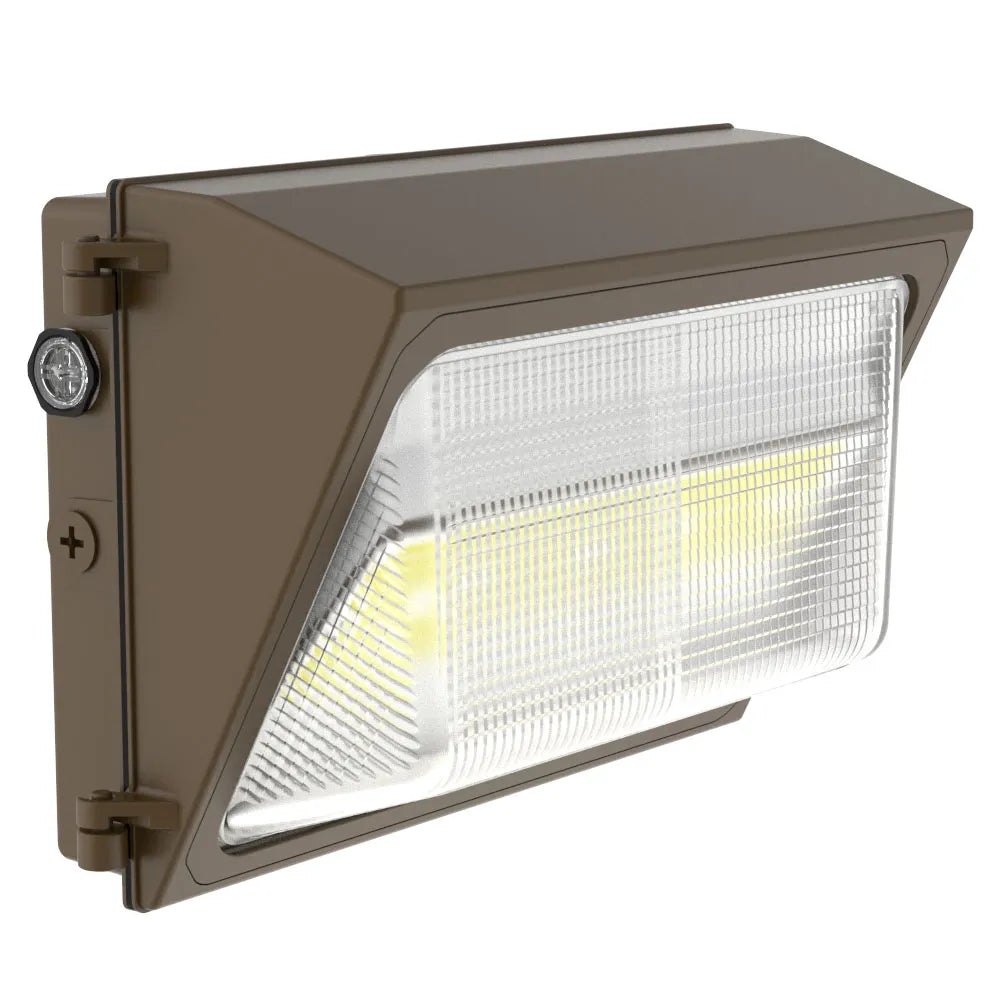

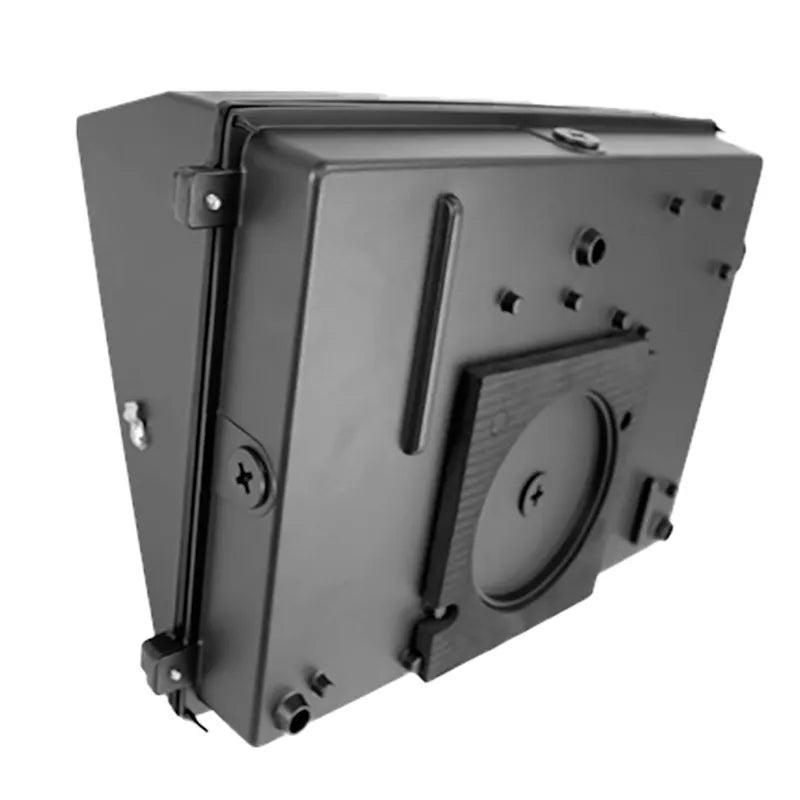

The LED Traditional Wall Pack Light Fixture, part number WMXE-MD-80-120W-50K-P, from Westgate's WMXE Builder Series offers efficient lighting at 140 lumens per watt. Choose from the selectable 80/100/120 watts of power and generate 11,200/14,000/16,800 lumens in 5000K daylight color temperature. Complete with 0-10V dimming, this Westgate wall pack offers a 7 year warranty and is rated for 70,000 hours.
Replace your HID wall pack with the same footprint and enjoy superior energy savings. The prismatic borosilicate glass lens provides efficient light distribution, while the ADC12 aluminum heat sink ensures durability. With wet location rating and outdoor powder coating, this fixture is perfect for any outdoor setting.
Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas.
Manufacturer | Westgate |
MPN | WMXE-MD-80-120W-50K-P |
SKU | WMXE-MD-80-120W-50K-P |
UPC | 845060087376 |
Lighting Technology | LED |
Wattage | 80/100/120 Watts |
Voltage | 120-277V |
Input Current | 1.0A |
Frequency | 50/60Hz |
Color Temperature (Kelvin) | 5000K Daylight |
Lumens | 11,200/14,000/16,800 Lumens |
Efficiency (Lumens Per Watt) | 140 LPW |
Dimmable | Yes, 0-10V Dimming |
Rated Life | 70,000 Hours |
CRI (Color Rendering Index) | 70 CRI |
Power Factor | >0.9 |
Housing | Aluminum |
Lens | Prismatic Borosilicate Glass |
Operating Temperature | -40°F to 104°F |
Dimensions | 15-1/4” W x 9-1/2” H x 7-1/2” D |
Certifications | IP65 Rated |
Environment | Wet Location |
Warranty | 7 Year Standard |
