Name: 80/100/150 Watt Series B LED Acorn Area Light 3000K/4000K/5000K
Brand: Westgate
SKU: GPA-B32-80-150W-MCTP-BK
Price: 615.23 USD
Availability: InStock

Westgate 80/100/150 Watt Series B LED Acorn Area Light 3000K/4000K/5000K

IP66, Wet Location Rated

Price

Color Temp

Selectable

Finish Color

Black

Quantity

Poles Sold Separately

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":48371935969524,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"GPA-B32-80-150W-MCTP-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":52257685504244,"product_id":9484113182964,"position":1,"created_at":"2026-06-02T15:48:40-04:00","updated_at":"2026-06-02T15:48:41-04:00","alt":"Westgate 80\/100\/150 Watt Series B LED Acorn Area Light 3000K\/4000K\/5000K","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_GPA-B32-80-150W-MCTP-BK2.webp?v=1780429721","variant_ids":[48371935969524]},"available":true,"name":"80\/100\/150 Watt Series B LED Acorn Area Light 3000K\/4000K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":61523,"weight":6214,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332026","featured_media":{"alt":"Westgate 80\/100\/150 Watt Series B LED Acorn Area Light 3000K\/4000K\/5000K","id":43291615887604,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_GPA-B32-80-150W-MCTP-BK2.webp?v=1780429721"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":48371935969524,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"GPA-B32-80-150W-MCTP-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":52257685504244,"product_id":9484113182964,"position":1,"created_at":"2026-06-02T15:48:40-04:00","updated_at":"2026-06-02T15:48:41-04:00","alt":"Westgate 80\/100\/150 Watt Series B LED Acorn Area Light 3000K\/4000K\/5000K","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_GPA-B32-80-150W-MCTP-BK2.webp?v=1780429721","variant_ids":[48371935969524]},"available":true,"name":"80\/100\/150 Watt Series B LED Acorn Area Light 3000K\/4000K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":61523,"weight":6214,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332026","featured_media":{"alt":"Westgate 80\/100\/150 Watt Series B LED Acorn Area Light 3000K\/4000K\/5000K","id":43291615887604,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_GPA-B32-80-150W-MCTP-BK2.webp?v=1780429721"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Video
Request A Quote

Details

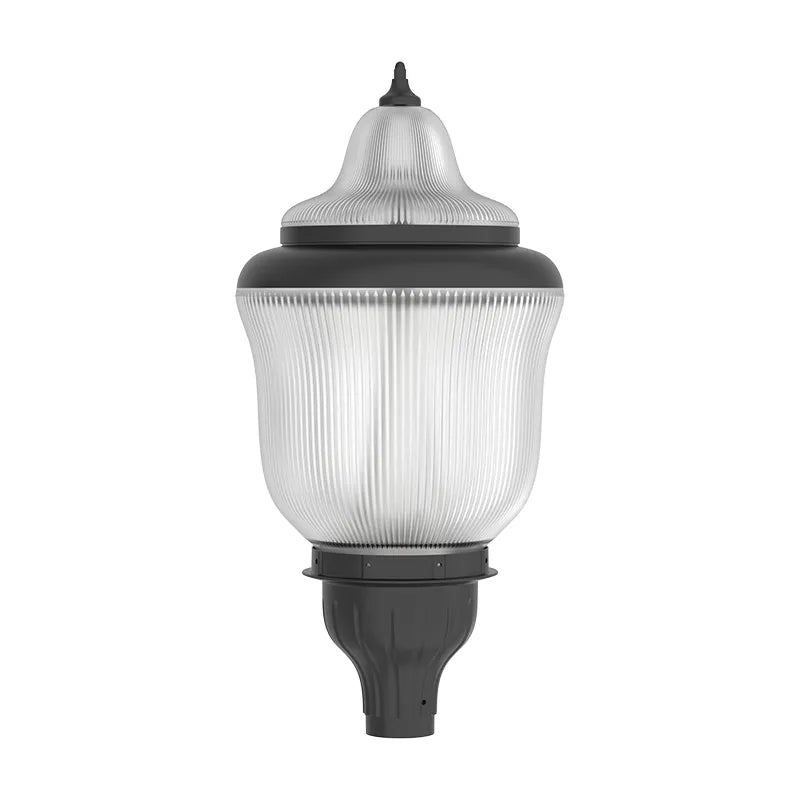

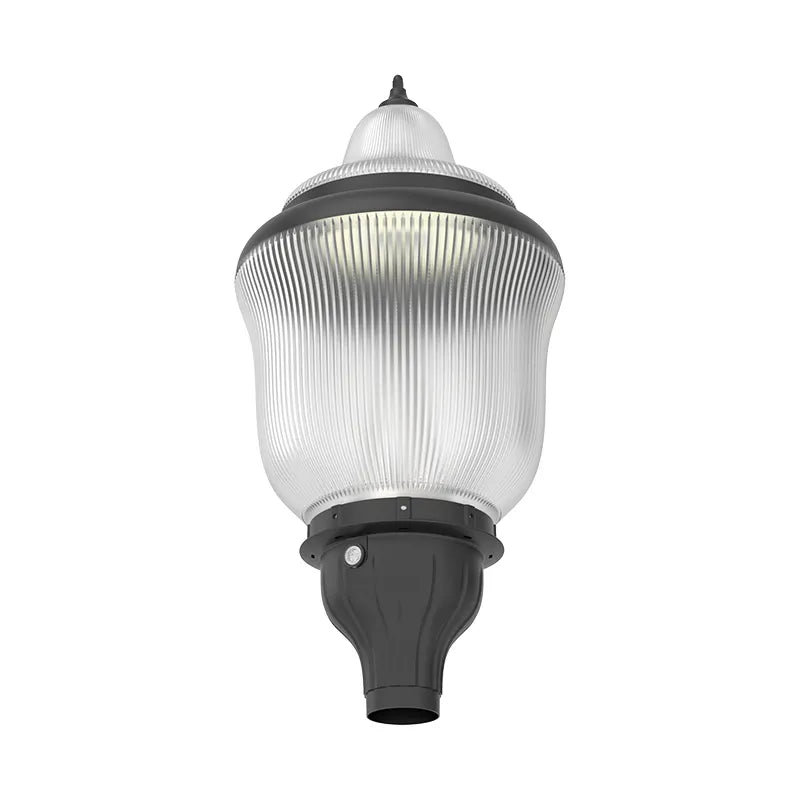

The Westgate GPA-B32-80-150W-MCTP-BK Series B LED Acorn Area Light combines timeless decorative styling with advanced LED performance, making it an ideal solution for pedestrian pathways, parks, campuses, streetscapes, and public gathering areas. Featuring selectable 80W, 100W, or 150W operation with adjustable 3000K, 4000K, and 5000K color temperatures, this fixture delivers up to 20,250 lumens of efficient illumination. Constructed with a durable black aluminum housing and a high-transmittance polycarbonate globe that is anti-UV and fire-resistant, it operates on 100-277V power and provides a full 360° beam angle for uniform area lighting.

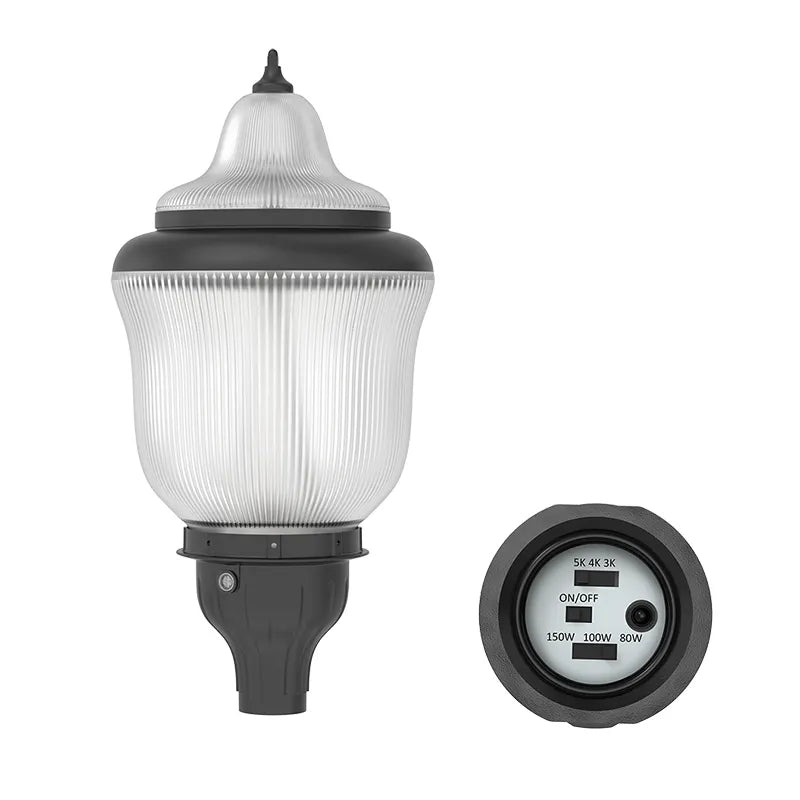

Designed for versatility and long-term reliability, the fixture includes a DC button photocell with an ON/OFF switch and an integrated uplight feature that continuously consumes 10W; when the uplight is switched off, the power is redirected to the downlight for increased output. The GPA-B32 mounts to any standard 3" OD pole or pipe, including Westgate D1 Series decorative poles to complete a full post-top lighting solution. Suitable for wet-location installations, rated for 50,000 hours of service life and backed by a 5-year warranty, this LED acorn area light preserves the classic architectural appeal of traditional acorn fixtures while delivering the energy efficiency, safety, and performance required for modern outdoor lighting applications.

Specifications

Manufacturer	Westgate
MPN	GPA-B32-80-150W-MCTP-BK
SKU	GPA-B32-80-150W-MCTP-BK
UPC	840378332026
Lighting Technology	LED
Wattage	80/100/150 Watt
Voltage	100-277V
Color Temperature (Kelvin)	3000K/4000K/5000K
Lumens	10,800/13,500/20,250 Lumens
Efficiency (Lumens Per Watt)	135 LPW
Sensor	DC Button Photocell with ON/OFF Switch
Beam Angle	360 Degrees
Rated Life	50,000 Hours
CRI (Color Rendering Index)	>70 CRI
Power Factor	>0.9
THD (Total Harmonic Distortion)	<20%
Finish Color	Black
Finish	Powder Coated
Housing	Aluminum
Lens	High Light Transmittance Polycarbonate, anti-UV, Fire Resistant
Mounting	Fits on 3" OD Pipes and Poles
Operating Temperature	-40°C to 40°C (-40°F to 104°F)
Dimensions	3.46" W x 32.72" H x 16" D
Environment	Wet Location Rated
Certifications	UL Listed, IP66
Warranty	5 Year Warranty

Documents

Westgate Watt and Color Selectable LED Acorn Area Light Specification Sheet

Westgate Watt and Color Selectable LED Acorn Area Light Installation Instructions
