The Westgate LAX-LG-90-150W-MCTPD-PSR is a high-performance, compact LED area light engineered for demanding commercial and industrial outdoor environments. Designed as a versatile solution for parking lots, roadways, campuses, retail developments, industrial parks, and pedestrian pathways, this fixture delivers exceptional energy efficiency with an efficacy of up to 170 LM/W. Its selectable wattage (90/120/150 Watt) and selectable CCT (3000K/4000K/5000K) allow a single fixture to serve a wide range of project requirements, while the field-adjustable T2/T3/T4/T5 beam distribution optics provide precise photometric control without the need for multiple SKUs on hand.
On the electrical side, the fixture operates on 120–277VAC at 50/60Hz and features an integrated LED driver with 0–10V dimming capability and 10kV surge protection. The integrated 7-pin NEMA socket makes the fixture sensor-ready out of the box, supporting easy photocell and motion sensor integration for smart lighting control applications. The unit is rated for operating temperatures from -40°F to 122°F, ensuring reliable performance in extreme climates.

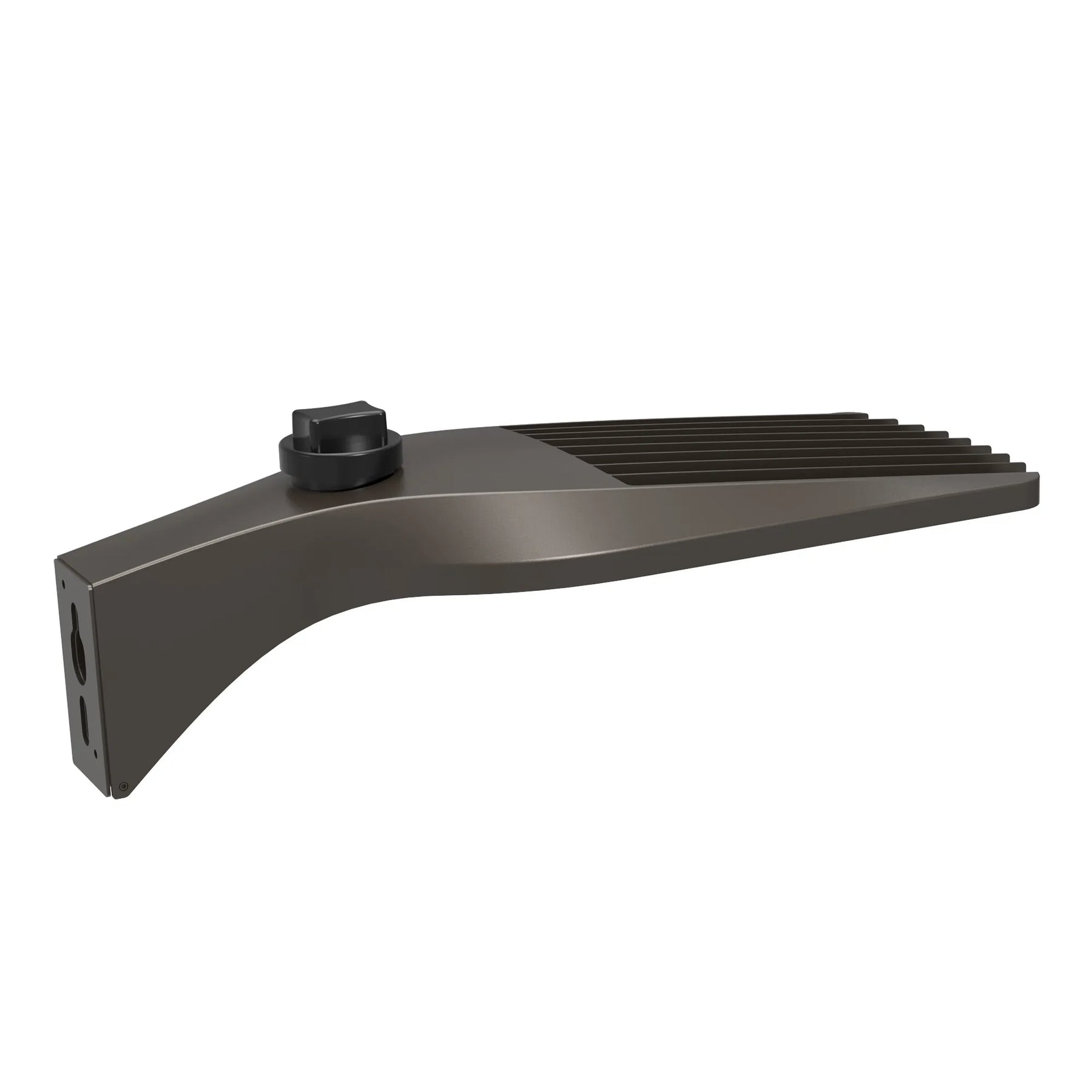

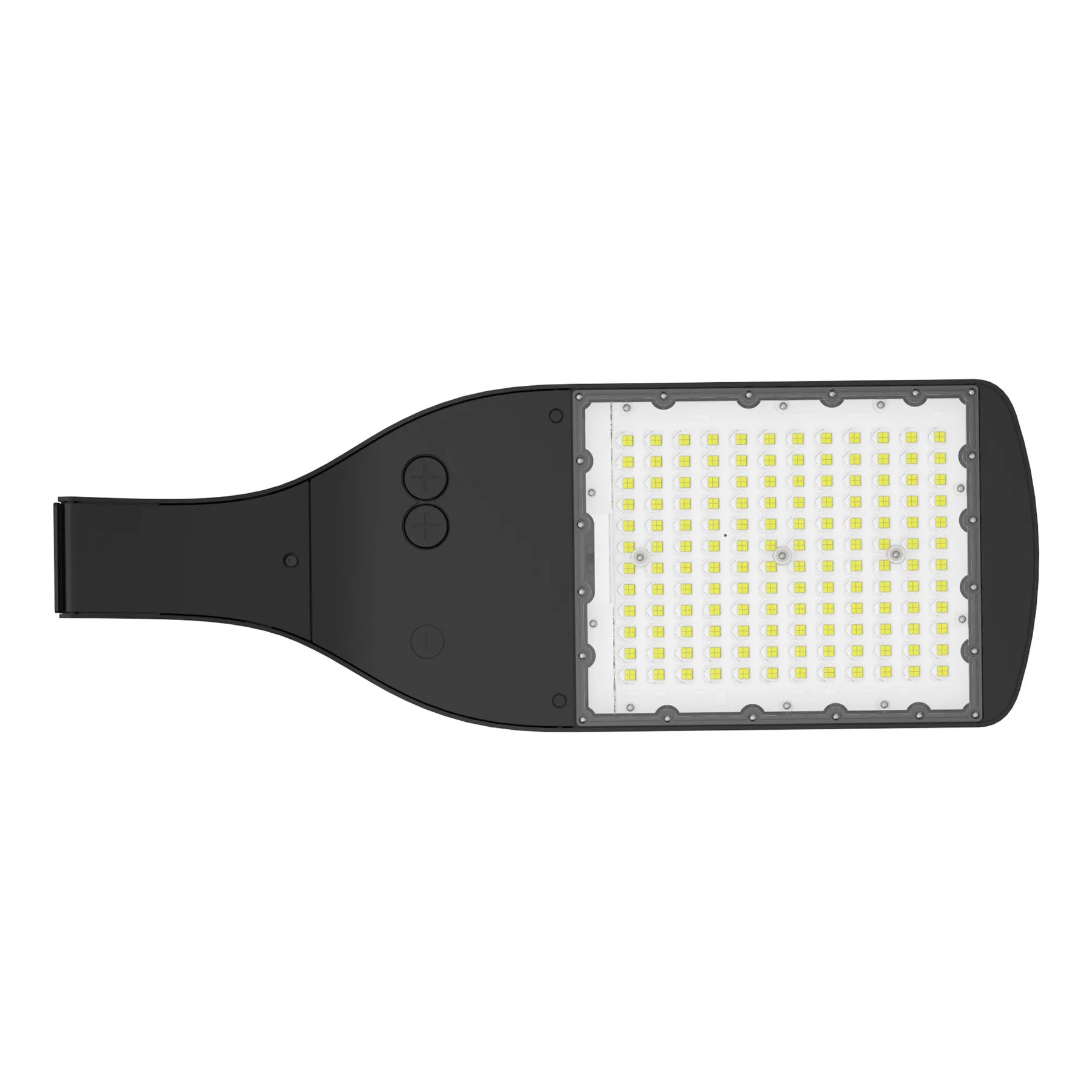

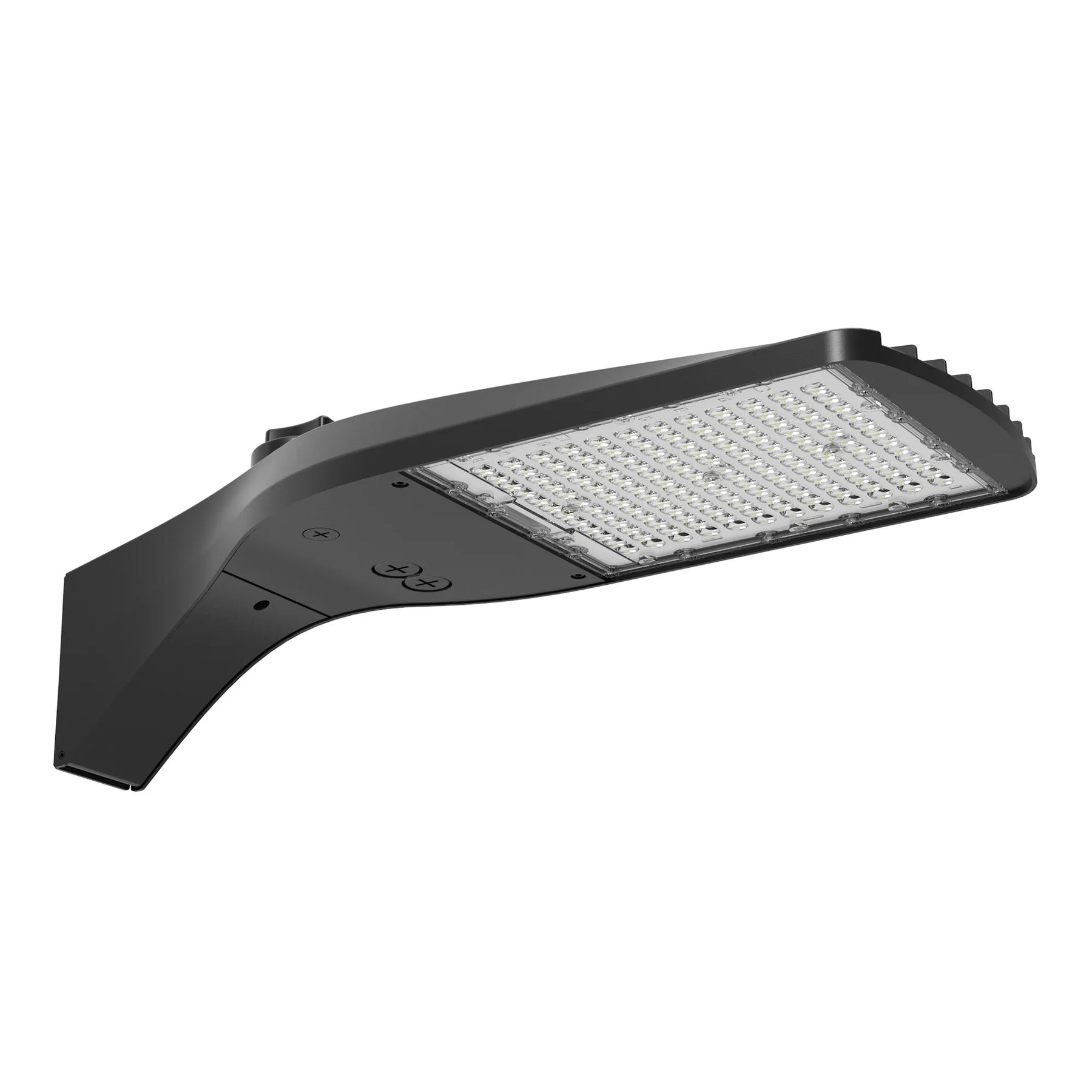

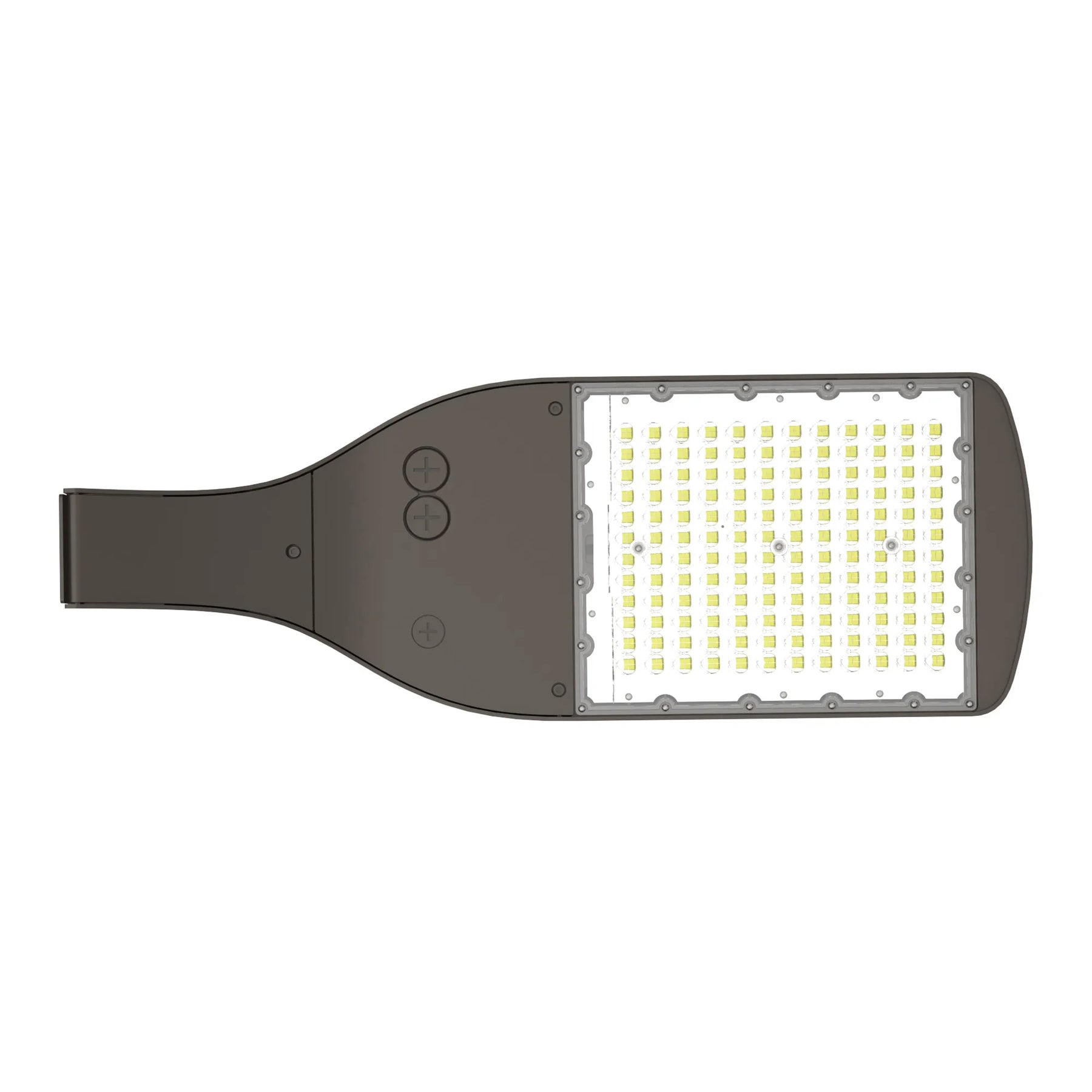

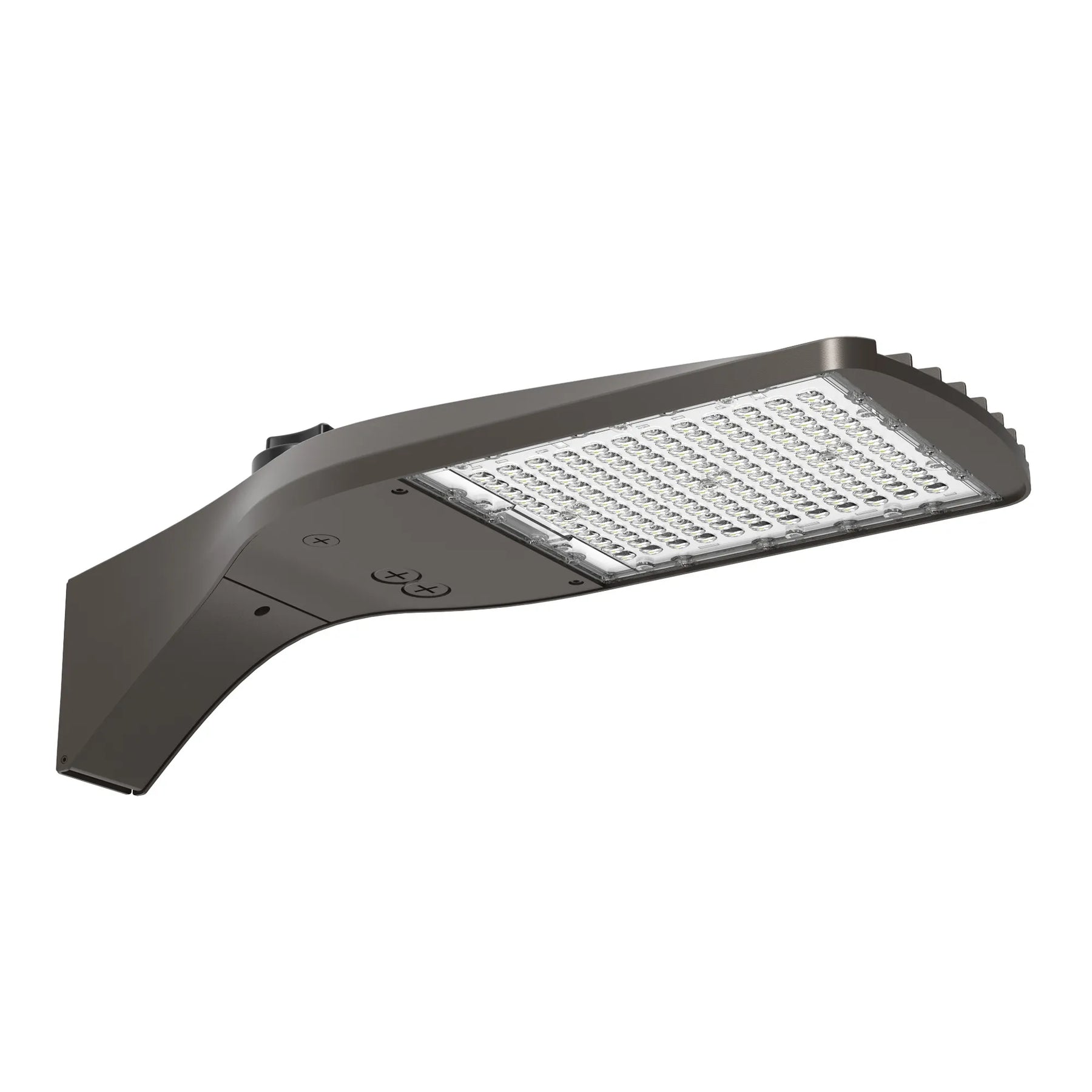

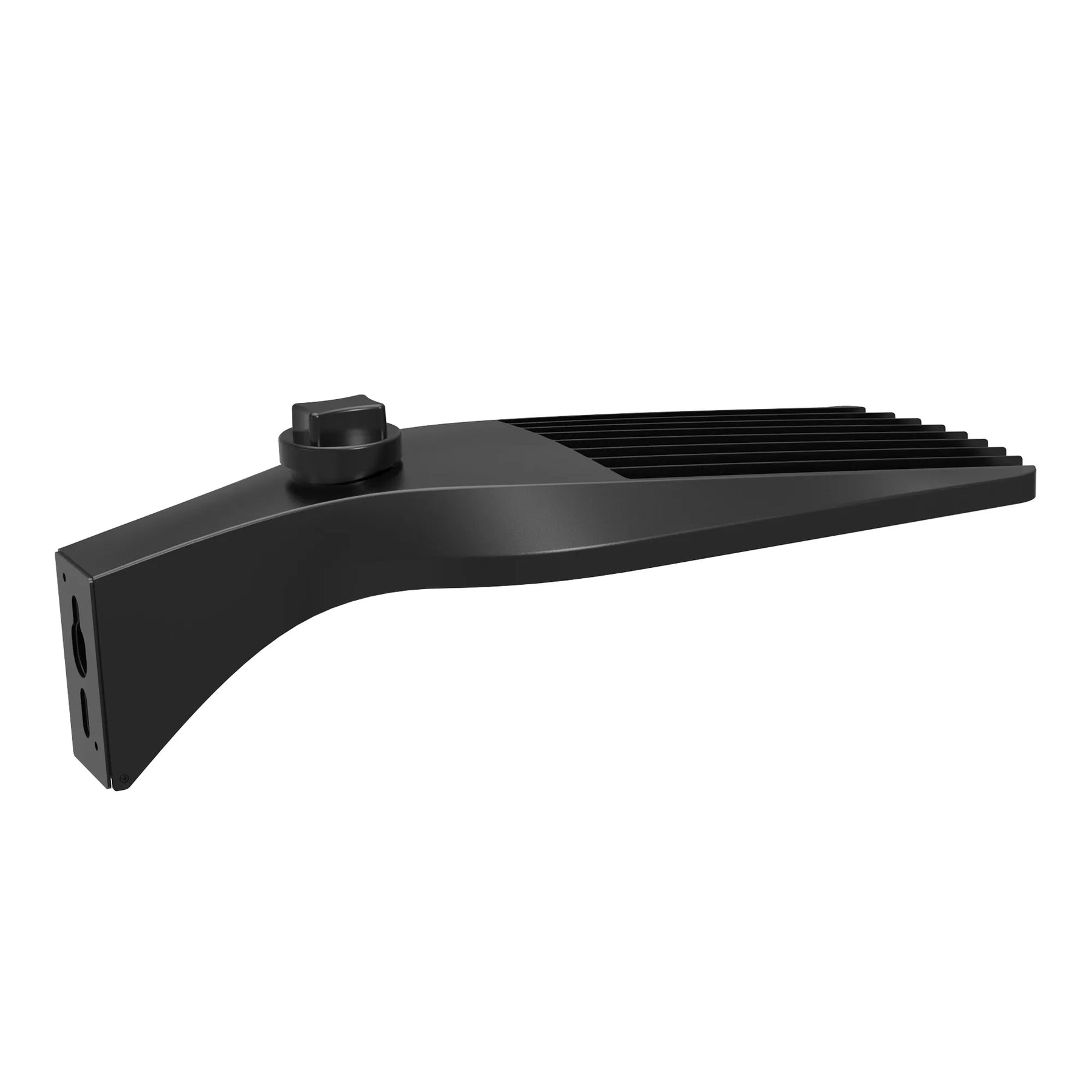

Mechanically, the LAX-LG-90-150W-MCTPD-PSR features a die-cast aluminum housing with an integrated heat sink for superior thermal management, and is IP65 rated for full wet location use. Its compact, lightweight profile - measuring 26.25" x 9.63" x 2.58" with an EPA of 0.26 at 0° tilt - reduces pole stress and simplifies installation. The fixture is available in Black (LAX-LG-90-150W-MCTPD-PSR-BK) and Bronze (LAX-LG-90-150W-MCTPD-PSR) finishes.
Delivering lumen outputs of 15,300/20,400/25,500 lumens across its three wattage settings with a CRI of 80, this fixture provides consistent, high-quality illumination across all applications. It is DLC Premium listed and UL listed, meeting the compliance requirements for utility rebate programs and commercial specifications. Whether retrofitting HID fixtures or specifying new construction, the LAX-LG-90-150W-MCTPD-PSR offers the flexibility, durability, and performance that modern outdoor lighting projects demand.
Accessories (Sold Separately)
LAX LG Glare Shield
LAX Series Round-Pole Adapter
