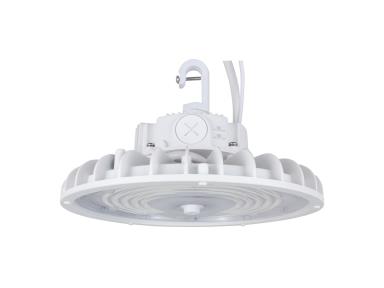

The Round Eco Pendant High Bay Gen 2 is a Color and Wattage Selectable, sleek, price-effective lighting solution for warehouses, retail and big box stores, gymnasiums, and other industrial and commercial locations with open ceilings. Compact in design, yet mighty in output and durability, the pendant produces uniform illumination with DLC Premium listed performance that exceeds 135 lm/W. The product comes integrated with a sensor port for easy in-field plug and play sensor installation, compatible with Maxlite c-Max system (DLC NLC qualified), making it attractive for large utility rebates.
This item is the Maxlite BPHE2-U090WCS (108637) wattage and color selectable UFO LED High Bay fixture consumes 90/120/150 watts of 120-277 volt energy. They generate between 12,150-20,250 lumens (135 lumens per watt), have a rated lumen maintenance of 100,000 hours based on L70 lumen depreciation, a selectable color temperature of either 3500K Bright White, 4000K Cool White or 5000K Daylight and a CRI of 80. The round lights are DLC Premium Listed. These LED Eco Pendant lights have a 0-10V dimmable configuration. This Maxlite LED high bay fixtures carry a 10 year standard warranty.
Manufacturer | MaxLite |
MPN | BPHE2-U090WCS |
SKU | 108637 |
UPC | 767627033247 |
Lighting Technology | LED |
Voltage | 120-277V |
Dimmable | Yes, 0-10V Dimming |
Rated Life | 100,000 Hours |
CRI (Color Rendering Index) | 80 CRI |
Finish Color | White |
Finish | Polyester Powder Coat |
Housing | Die Cast Aluminum |
Lens | Polycarbonate |
Operating Temperature | -20°C to 50°C |
Dimensions | 11.81" Diameter x 4.4" H |
Certifications | DLC Premium, IP65 Rated, NSF Listed |
DLC Product ID | S-B6QJ7O |
Environment | Wet Location |
Warranty | 10 Year Standard |
Wattage | 90 Watts | ||
Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
Lumens | 12,150 Lumens | 13,320 Lumens | 12,600 Lumens |
Efficiency (Lumens Per Watt) | 135 LPW | 148 LPW | 140 LPW |
Wattage | 120 Watts | ||
Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
Lumens | 16,200 Lumens | 17,760 Lumens | 16,800 Lumens |
Efficiency (Lumens Per Watt) | 135 LPW | 148 LPW | 140 LPW |
Wattage | 150 Watts | ||
Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
Lumens | 20,250 Lumens | 22,200 Lumens | 21,000 Lumens |
Efficiency (Lumens Per Watt) | 135 LPW | 148 LPW | 140 LPW |
