Name: 96 Watt SWITCHLD 24VDC Driver and Dimmer 2 in 1 Switch with Tunable CCT Gen 2
Brand: GM Lighting
SKU: SWDC96W24VAL
Price: 282.6 USD
Availability: InStock

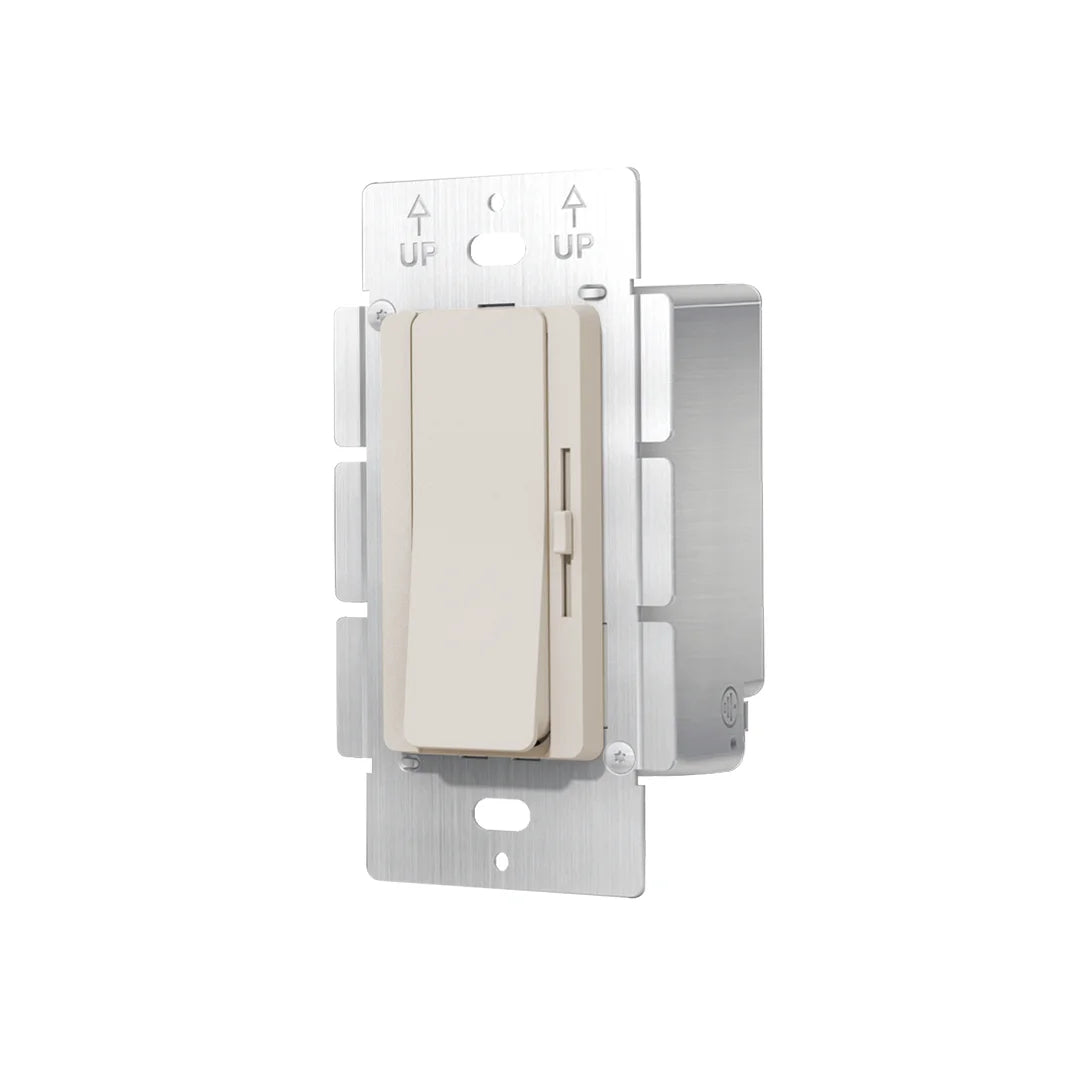

GM Lighting 60 Watt SWITCHLD 24VDC All In One Wall Dimmer and Driver Gen 2 Almond

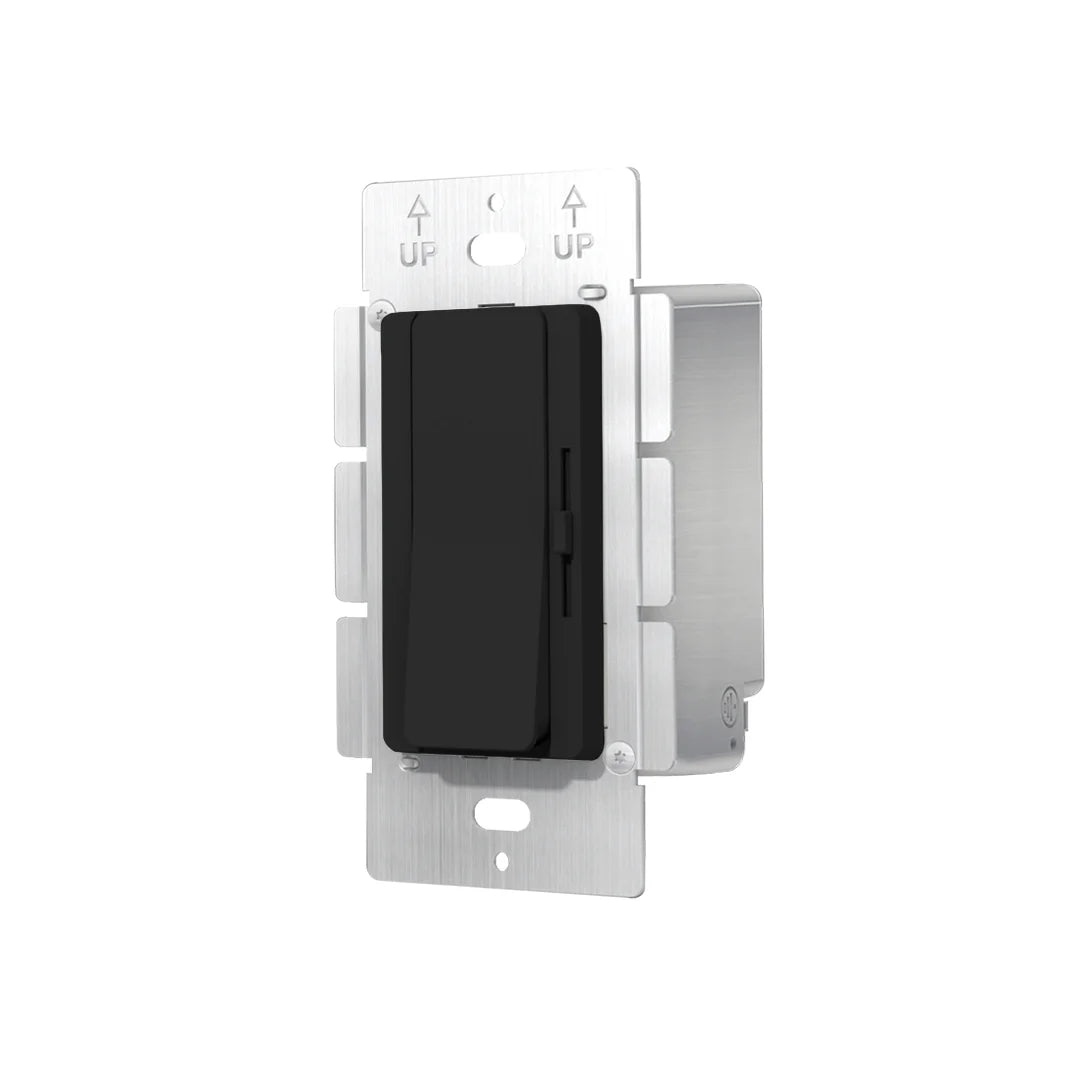

GM Lighting 60 Watt SWITCHLD 24VDC All In One Wall Dimmer and Driver Gen 2 Black

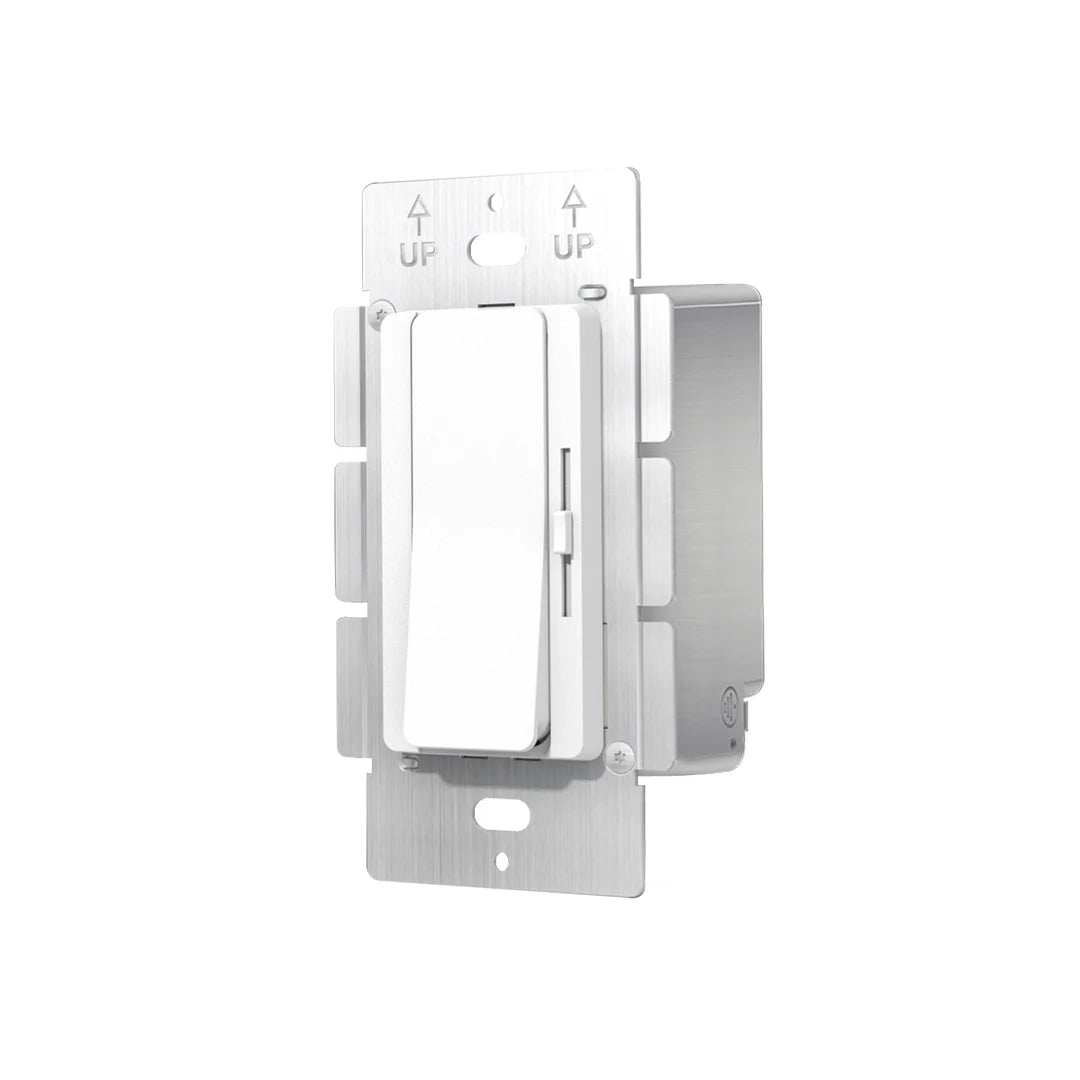

GM Lighting 60 Watt SWITCHLD 24VDC All In One Wall Dimmer and Driver Gen 2 White

Damp Location Rated, IP20, JA8 Compliant, Title 24 Compliant

Price

Finish Color

Almond

Black

White

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":48852727693556,"title":"Almond","option1":"Almond","option2":null,"option3":null,"sku":"SWDC96W24VAL","requires_shipping":true,"taxable":true,"featured_image":{"id":53310801182964,"product_id":9551600419060,"position":1,"created_at":"2026-07-10T16:32:38-04:00","updated_at":"2026-07-10T16:32:39-04:00","alt":"GM Lighting 60 Watt SWITCHLD 24VDC All In One Wall Dimmer and Driver Gen 2 Almond","width":1080,"height":1080,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/SWITCHLD_Almond.webp?v=1783715559","variant_ids":[48852727693556]},"available":true,"name":"96 Watt SWITCHLD 24VDC Driver and Dimmer 2 in 1 Switch with Tunable CCT Gen 2 - Almond","public_title":"Almond","options":["Almond"],"price":28260,"weight":318,"compare_at_price":null,"inventory_management":"shopify","barcode":"849951025706","featured_media":{"alt":"GM Lighting 60 Watt SWITCHLD 24VDC All In One Wall Dimmer and Driver Gen 2 Almond","id":44328120942836,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/SWITCHLD_Almond.webp?v=1783715559"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48852727726324,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"SWDC96W24VBK","requires_shipping":true,"taxable":true,"featured_image":{"id":53310801281268,"product_id":9551600419060,"position":2,"created_at":"2026-07-10T16:32:50-04:00","updated_at":"2026-07-10T16:32:52-04:00","alt":"GM Lighting 60 Watt SWITCHLD 24VDC All In One Wall Dimmer and Driver Gen 2 Black","width":1080,"height":1080,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/SWITCHLD_Black.webp?v=1783715572","variant_ids":[48852727726324]},"available":true,"name":"96 Watt SWITCHLD 24VDC Driver and Dimmer 2 in 1 Switch with Tunable CCT Gen 2 - Black","public_title":"Black","options":["Black"],"price":28260,"weight":318,"compare_at_price":null,"inventory_management":"shopify","barcode":"849951025683","featured_media":{"alt":"GM Lighting 60 Watt SWITCHLD 24VDC All In One Wall Dimmer and Driver Gen 2 Black","id":44328121041140,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/SWITCHLD_Black.webp?v=1783715572"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48852727759092,"title":"White","option1":"White","option2":null,"option3":null,"sku":"SWDC96W24VWH","requires_shipping":true,"taxable":true,"featured_image":{"id":53310801314036,"product_id":9551600419060,"position":3,"created_at":"2026-07-10T16:32:52-04:00","updated_at":"2026-07-10T16:32:54-04:00","alt":"GM Lighting 60 Watt SWITCHLD 24VDC All In One Wall Dimmer and Driver Gen 2 White","width":1080,"height":1080,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/SWITCHLD_White.webp?v=1783715574","variant_ids":[48852727759092]},"available":true,"name":"96 Watt SWITCHLD 24VDC Driver and Dimmer 2 in 1 Switch with Tunable CCT Gen 2 - White","public_title":"White","options":["White"],"price":28260,"weight":318,"compare_at_price":null,"inventory_management":"shopify","barcode":"849951025294","featured_media":{"alt":"GM Lighting 60 Watt SWITCHLD 24VDC All In One Wall Dimmer and Driver Gen 2 White","id":44328121073908,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/SWITCHLD_White.webp?v=1783715574"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Details
Specifications
Documents
Request A Quote

Details

The GM Lighting SwitchLD (SWDC96W24V(xx)) is a 96 watt, 24VDC driver and dimmer combined into a single, modern wall switch unit. Designed to simplify installation, it eliminates the compatibility issues that arise when pairing separate drivers and dimmer switches — delivering power, dimming, and CCT color tuning all from one compact, single-gang device powered directly from 120VAC.

Offering smooth, deep dimming from 100% down to 0.3%, the SwitchLD works with 2-channel/3-wire CCT tunable LED sources and supports both single-pole and 3-way wiring configurations. Its 16kHz PWM dual-output channels ensure flicker-free performance, while the integrated power supply achieves 91% efficiency and a 0.99 power factor at rated load. Available switch plate colors include Almond, Black, and White, and the plates are compatible with standard Decorator Wall Plates.

The SwitchLD is UL listed for the US and Canada (UL 8750, CSA C22.2 No. 250.13), rated IP20 for indoor dry and damp locations, and complies with Title 24 (JA8) requirements when paired with compatible GM Lighting Title 24 certified LED sources. Additional certifications include FCC 47 CFR Part 15 Class B, RoHS, and SELV. Rated for 30,000 hours at 90°C case temperature, this switch is built for long-term reliability in residential and commercial applications.

Specifications

Manufacturer	GM Lighting
Finish Color	Almond	Black	White
MPN	SWDC96W24VAL	SWDC96W24VBK	SWDC96W24VWH
SKU	SWDC96W24VAL	SWDC96W24VBK	SWDC96W24VWH
UPC	849951025706	849951025683	849951025294
Lighting Technology	LED
Wattage	96 Watts
Input Voltage	120VAC
Output Voltage	24VDC
Max Input Current	0.9A @120V
Output Current	Max 4A
Dimmable	Yes, 100% to 0.3%
Rated Life	30,000 hrs @ 90°C case temp
Power Factor (50%-100% load)	0.99
Efficiency @120V (50%-100% load)	91%
THD (100% load)	≤10%
Housing (Case)	Polycarbonate, Aluminum
Operating Temperature	-40°F to +140°F (-40°C to +60°C)
Max Case Temp	90°C
Dimensions	2.035”D x 2.126”W x 4.134”H
Environment	Dry and Damp Location
Certifications	Class P, IP20, UL, RoHS, SELV, Title 24 (JA8)
Warranty	5 Years

Documents

GM Lighting 96 Watt SWITCHLD 24VDC Driver and Dimmer 2 in 1 Switch with Tunable CCT Specification Sheet
