Get the best LED drivers from Magnitude Lighting and experience their advanced technology that produces the highest efficiency ratings in the industry. With headquarters in Orange County, they provide top-quality products, fast fulfillment, and top-notch customer support.
Magnitude Lighting brings you their SoliDrive Series of constant voltage dimmable Class 2 LED Drivers. These drivers are either UL Listed or UL recognized and IP65 rated, suitable for both indoor and outdoor applications. This driver is dimmable (0-10V) flicker free down to 1% and includes a UL listed enclosure with a built-in junction box. The SoliDrive series is designed for commercial, industrial, and residential applications. These drivers have a wide range of wattages and current outputs to meet numerous applications. The Magnitude magnetic LED drivers are compact in size, allowing them to fit into your application.

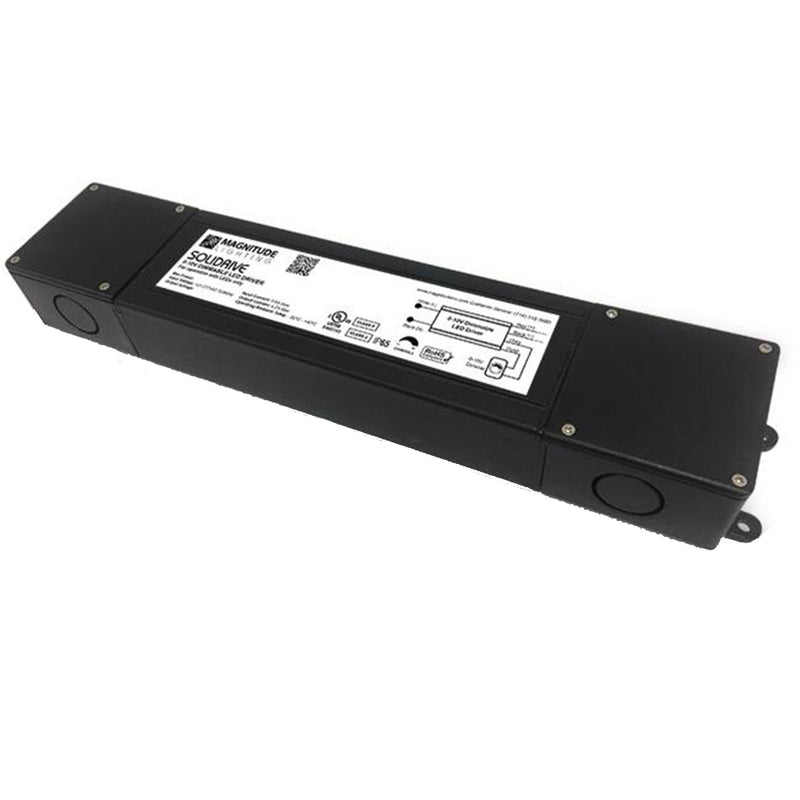

The CVD50L12DC LED driver by Magnitude Lighting, with a 50 watt maximum output power and 4200mA output current, is a reliable choice for constant voltage input (12V) LED systems. This dimmable driver is equipped with over temperature, over load, and short circuit protections, and has a universal input voltage of 120-277V. Additionally, it is IP66 rated, UL 8750 Approved, and Class 2, Class P rated, providing a 5-year warranty for added peace of mind. Experience smooth, flicker-free linear dimming down to 1% with most LED's and a wide range of compatible dimmers.
| Manufacturer | Magnitude Lighting |
| MPN | CVD50L12DC |
| SKU | CVD50L12DC |
| UPC | 810020792201 |
| Lighting Technology | LED |
| Driver | Constant Voltage |
| Output Current | 4.2A (4200mA) |
| Input Current | 0.96A |
| Output Wattage | 50 Watt |
| Input Voltage | 120-277V |
| Output Voltage | 12VDC |
| Power Factor | >.95 |
| THD (Total Harmonic Distortion) Power | 20% |
| Efficiency | 80% |
| Dimming | 0-10V Dimming |
| Max Case Temperature | 80°C |
| Operating Temperature | -25°C to 40°C |
| Rated Life | 50,000 Hours |
| Dimensions | 11.4" L x 2.36" W x 1.4" H |
| Certifications | Class 2, Class P, UL Listed |
| Environment | Dry or Damp Location |
| Warranty | 5 Year |
