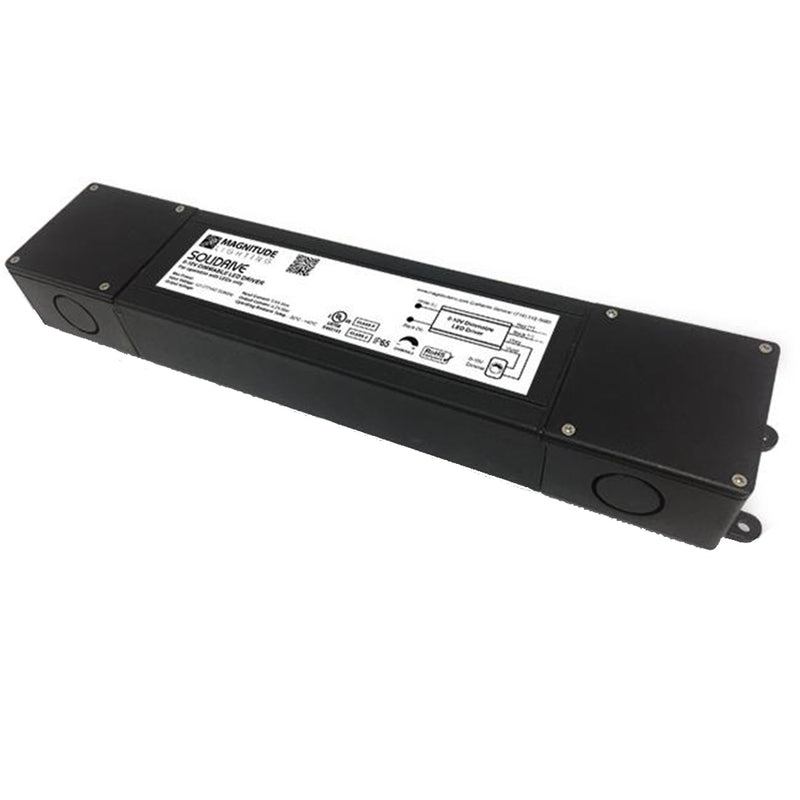

CVN96L24DC 96 Watt LED 4100mA Constant Voltage Driver With Junction Box

Magnitude Lighting SKU: CVN96L24DC
Magnitude Lighting CVN96L24DC 96 Watt LED 4100mA Constant Voltage Driver With Junction Box

CVN96L24DC 96 Watt LED 4100mA Constant Voltage Driver With Junction Box

Magnitude Lighting SKU: CVN96L24DC
  • IP66
Regular price $114.47
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

LED Driver Cross Reference:
Universal L24V100UNV-Q
Fulham THCV1UNV024V-100L

Magnitude Lighting has been transforming LED lighting with advanced LED drivers since 2008. With their breakthrough technologies, they are able to yield the highest efficiency ratings in the industry. Headquartered in Orange County, Magnitude Lighting have been able to maintain advanced manufacturing facilities and customer support facilities in North America in order to deliver the highest product quality, fastest fulfillment, and superior customer support. We recommend you try out Magnitude Lighting LED drivers today - you will not be disappointed.

Magnitude Lighting brings you their SoliDrive Series of constant voltage non-dimmable Class 2 LED Drivers. These drivers are either UL Listed or UL recognized and IP65 rated, which makes them suitable for both indoor and outdoor applications. This driver is NOT dimmable but does include an UL listed enclosure with a built-in junction box. The SoliDrive series of drivers are designed for commercial, industrial, and residential applications. These drivers have a wide range of wattages and current outputs to meet numerous applications. The Magnitude magnetic LED drivers are compact in size, allowing them to fit into your application.

This item is the Magnitude Lighting low voltage power supply part number CVN96L24DC. This driver has a universal input voltage of 120-277V and includes Auto Reset for over temperature, over load, and short circuit protection. As always, a 5 year warranty is standard on all of Magnitude's products. The output current is 4100mA output with a max output power of 96 watts. This driver will operate any LED series of parallel string of LEDs designed for constant voltage input of 24V. It is IP66 rated and UL 8750 Approved, and Class 2, Class P rated.

Manufacturer Magnitude Lighting
UPC 810020792102
Lighting Technology LED
Driver Constant Voltage
Output Current 4.1A (4100mA)
Input Current 0.96A
Output Wattage 96 Watt
Input Voltage 120-277VAC
Output Voltage 24VDC
Frequency 50/60Hz
Power Factor >.95
THD (Total Harmonic Distortion) Power <20%
Efficiency 84%
Max Case Temperature 80°C
Operating Temperature -25°C to 40°C
Rated Life 50,000 Hours
Dimensions 11.4" L x 2.36" W x 1.4" H
Certifications Class P, RoHS Compliant, FCC
Environment Dry and Damp Location
Warranty 5 Year
