EK4136S Stem Mount 120-277V Electronic Photocontrol

Intermatic SKU: EK4136S
Intermatic EK4136S Stem Mount 120-277V Electronic Photocontrol

EK4136S Stem Mount 120-277V Electronic Photocontrol

Intermatic SKU: EK4136S
Regular price $23.86
/
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

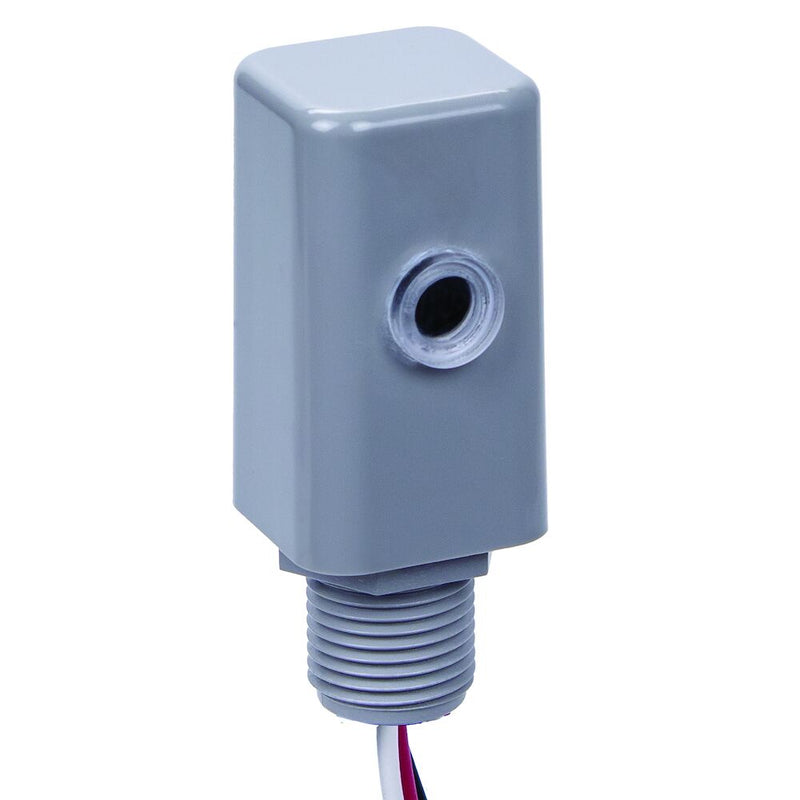

Nightfox electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. The EK4136S Stem Mount 120-277 Electronic Photocontrol is an ideal choice for single or multifixture HID and LED installations. It features a non-drift silicon light sensor with an IR filter, a DC relay with zero-crossing circuitry for extended life, and a 1⁄2"-14 NPSM threaded stem to fit standard outlet boxes and wall packs with a minimum hole size of 7/8 inch diameter. It has a fail-ON mode, exceeds 10,000 ON/OFF switching cycles, and has a 15 year design life. The photocell sensor is located on the side of the photocontrol

Manufacturer Intermatic
MPN EK4136S
SKU EK4136S
UPC 078275146297
Application Compatibilities LED; HID; Incandescent
Input Voltage 120-277 VAC
Frequency 50/60Hz
Sensor Time Delay Instant On; 2 Seconds to 5 Seconds Off
Activation On 1.5FC
Activation Off 4.5FC
Housing Polycarbonate
Ballast Fluorescent Range 1800 VA
Tungsten Range 1000 Watts
Rated Life 15 Years
Rated Operations 10,000
Operating Temperature -40°C to 70°C
Dimensions 2.25" H x 1.3125 W x 1.25" Depth
Wire Lead Length 6 Inches
Maximum Wire Size #18 AWG
Certifications cULus, Title 20, RoHS Compliant
Environment Outdoor
Warranty 8 Year Limited

Specification Sheet

Installation Instructions
