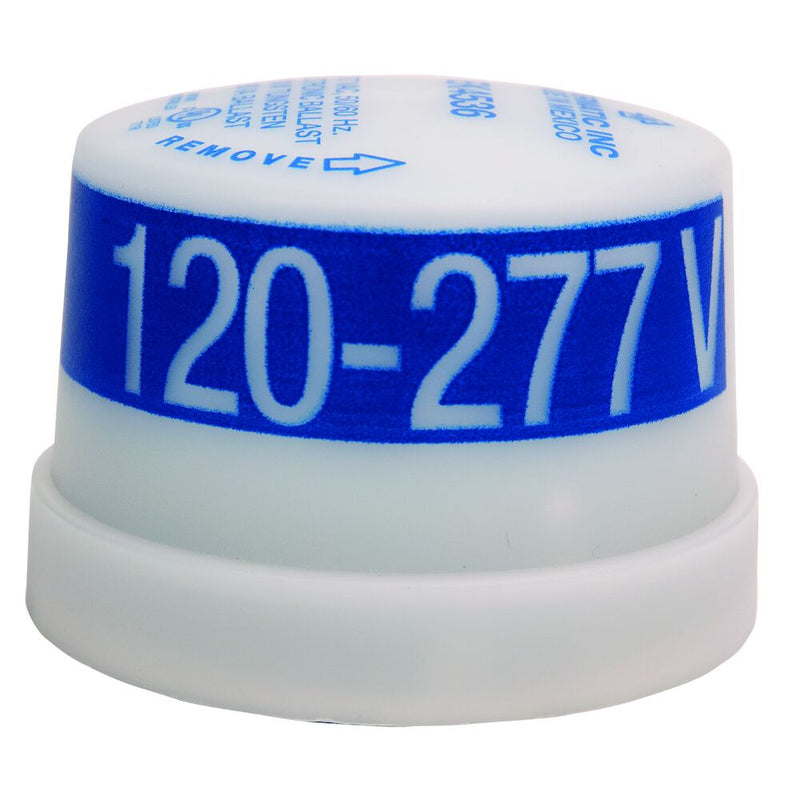

EK4536 Select Grade Locking Type 120-277V Electronic Photocontrol

Intermatic SKU: EK4536
Intermatic EK4536 Select Grade Locking Type 120-277V Electronic Photocontrol

EK4536 Select Grade Locking Type 120-277V Electronic Photocontrol

Intermatic SKU: EK4536
Regular price $18.93
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

The EK4536 select grade locking type electronic photocontrol by Intermatic is designed for reliable long-term use with LED and induction fixtures. Its non-drift silicon light sensor and IR filter are built to last and conformal coated PCB ensures maximum protection. With more than 10,000 ON/OFF switching cycles, this device is perfect for single or multi-fixture HID and LED installations up to 1,650 watts at 277VAC.

The EK4536 offers reliable performance and safety features, with a 8 year limited warranty and a silicon diode photocell type. Its locking type photocontrol style is suitable for a variety of applications, including HID, incandescent, and LED, and its polypropylene housing material ensures durability and stability.

Manufacturer Intermatic
MPN EK4536
SKU EK4536
UPC 078275130173
Application Compatibilities LED; Incandescent; HID
Input Voltage 120-277 VAC
Operating Voltage 102-305 VAC
Frequency 50/60Hz
Sensor Time Delay Instant On; 2 Seconds to 5 Seconds Off
Activation On 1.5FC
Activation Off 2.25FC
Housing Polypropylene
Magnetic Ballast Range 1800 VA
Tungsten Range 1000 Watts
Electronic Ballast Load Ratings Ranges 6 A
Rated Life 15 Years
Operating Temperature -40°C to 70°C
Dimensions 2.75" H x 3.375" Diameter
Certifications cULus, Title 20, RoHS Compliant
Environment Outdoor
Warranty 8 Year Limited
