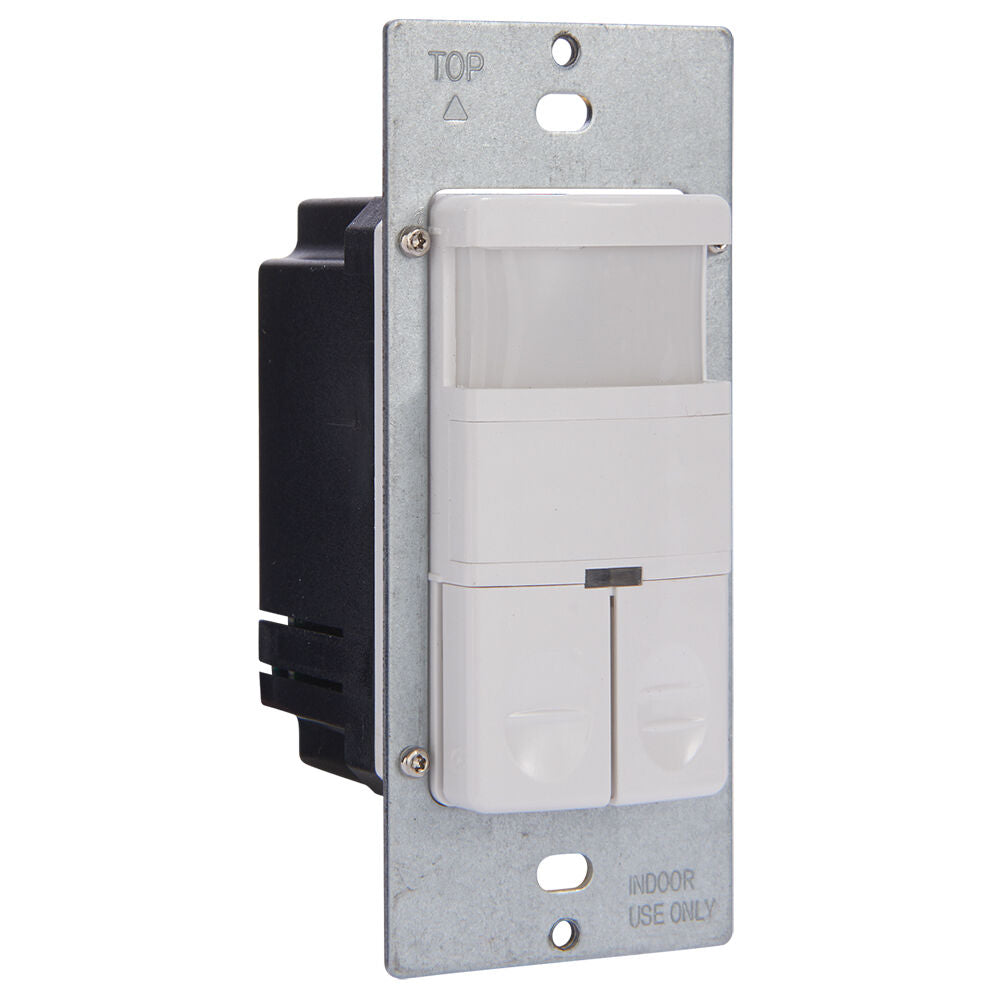

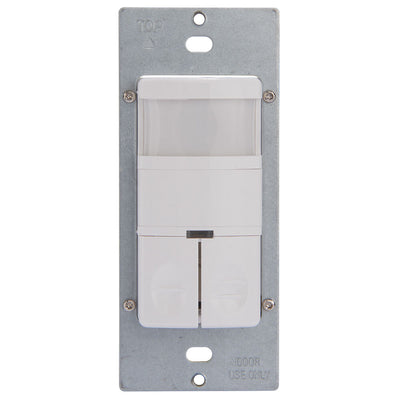

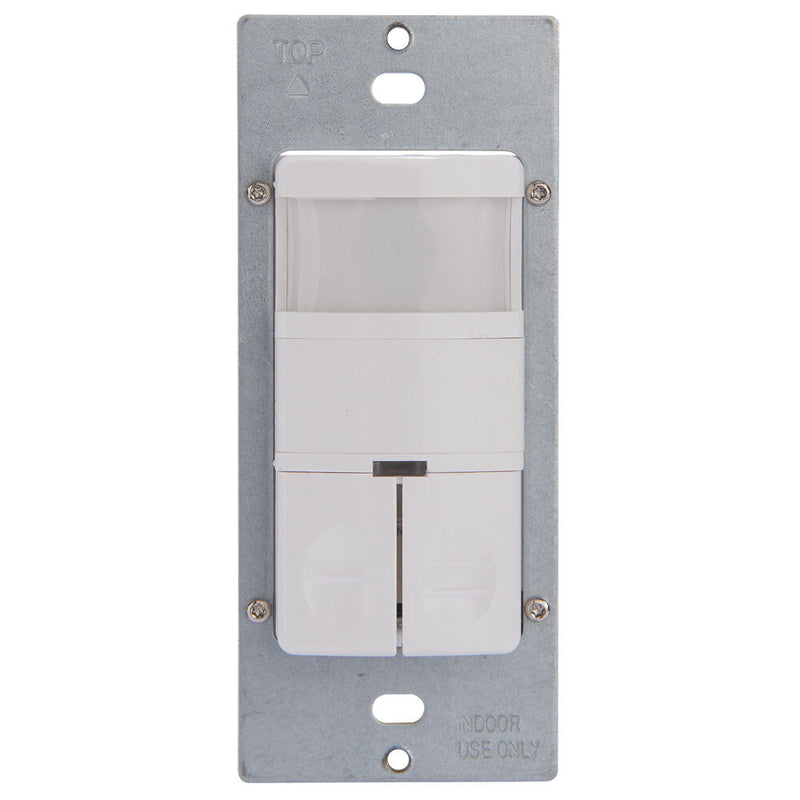

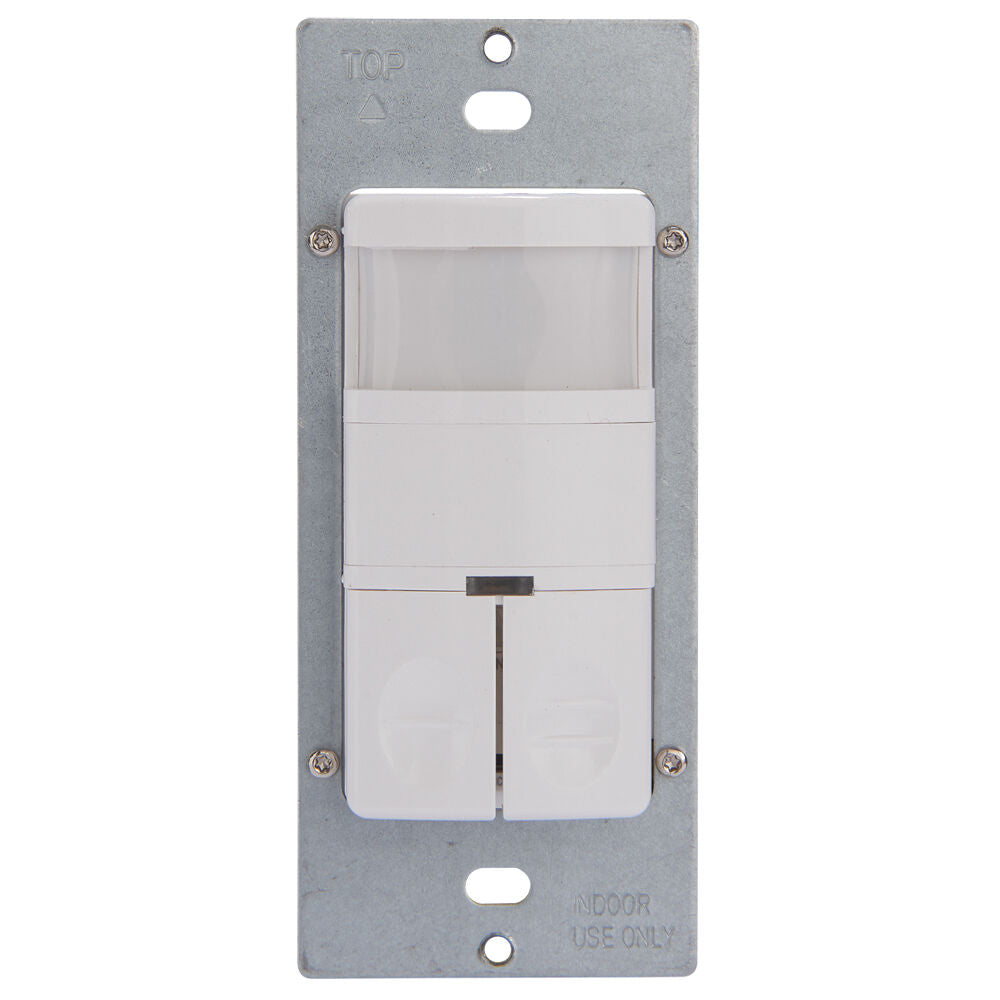

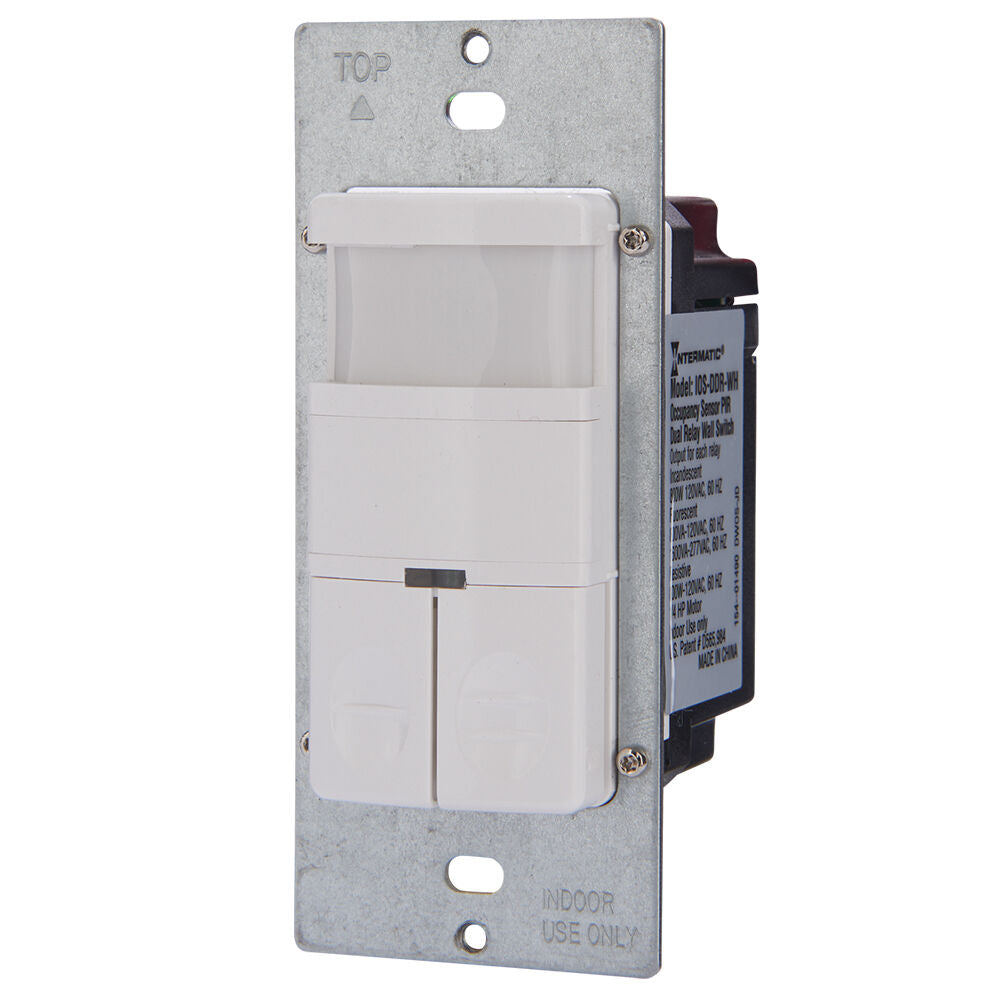

IOS-DDR-WH Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor

Intermatic SKU: IOS-DDR-WH
Intermatic IOS-DDR-WH Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor
Intermatic IOS-DDR-WH Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor
Intermatic IOS-DDR-WH Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor
Intermatic IOS-DDR-WH Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor
Intermatic IOS-DDR-WH Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor
Intermatic IOS-DDR-WH Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor
Intermatic IOS-DDR-WH Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor
Intermatic IOS-DDR-WH Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor

IOS-DDR-WH Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor

Intermatic SKU: IOS-DDR-WH
/
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The IOS-DDR has two relays (equal to Dual Load Switch). Since this device responds to temperature changes, care should be taken when mounting the device. DO NOT mount directly above a heat source, in a location where hot or cold drafts will blow directly on the sensor, or where unintended motion will be within sensor’s field-of-view.

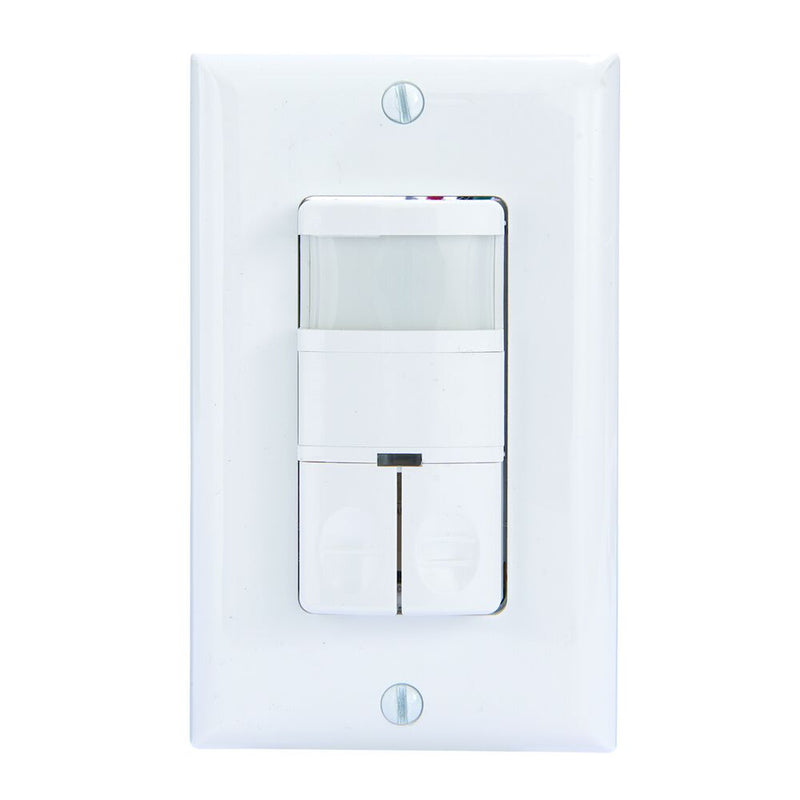

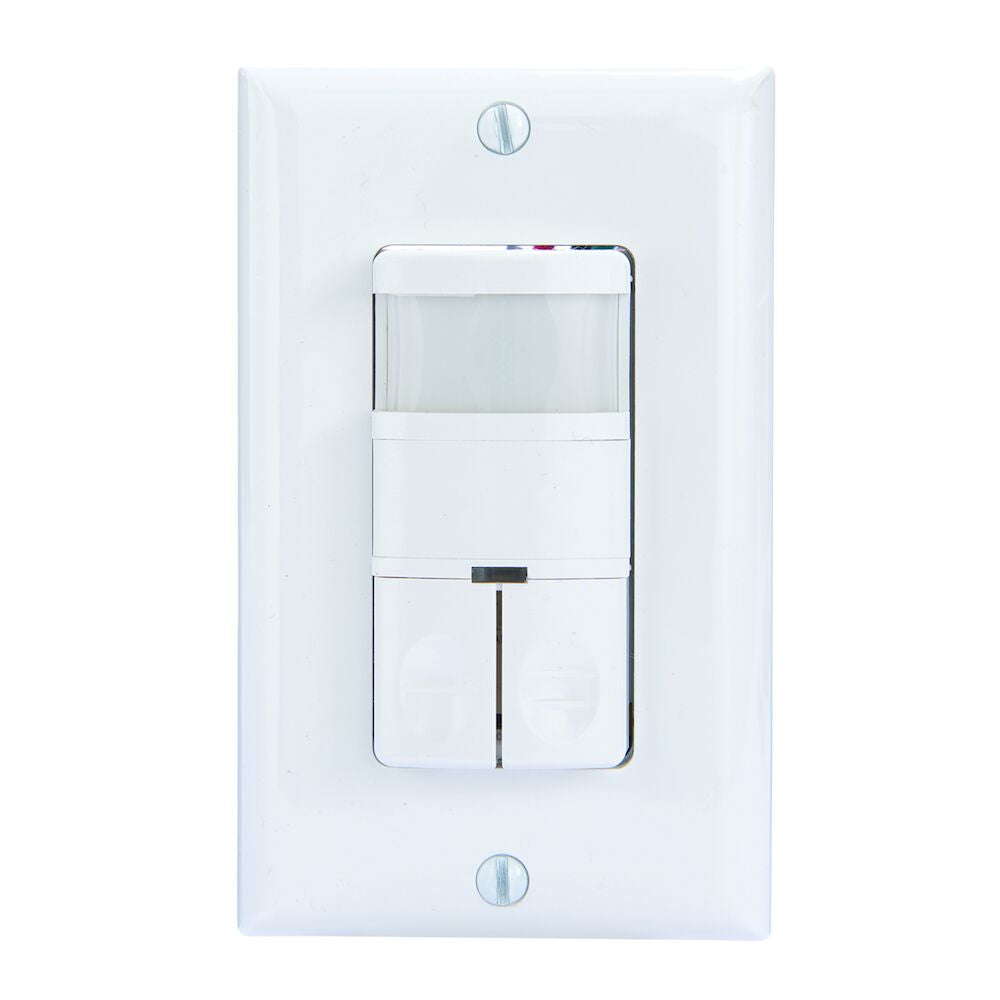

Decorative Face Plate Included

Manufacturer Intermatic
MPN IOS-DDR-WH
SKU IOS-DDR-WH
UPC 078275125568
Lighting Technology Incandescent; Fluorescent; CFL; LED
Input Voltage Range 120/277 VAC
Frequency 50/60Hz
Sensor Technology PIR (Passive Infrared)
PIR Coverage Area 1200 Square Feet
PIR Coverage Pattern 180 Degrees
Neutral Connection Required Yes
Mounting In-Wall
Maximum Mounting Height 4ft
Occupancy Sensor Power Type Line Voltage
Number of Circuits 2
Tungsten Range 800 Watts
Resistive Load Ratings Ranges 800 Watts
Motor Load Ratings Ranges 1/4 HP
Electronic Ballast Load Ratings Ranges 800 VA,120/125 VAC; 1600 VA, 277 VAC
Adjustable Time Delay Minimum 15 Seconds
Adjustable Time Delay Maximum 30 Minutes
Adjustable Light Level Minimum 30 lux
Adjustable Light Level Maximum Daylight
Operating Temperature 32°F (0°C) to 131°F (55°C)
Dimensions 2.625" H x 1.3125" W x 1.75" Depth
Certifications cULus, Title 20
Warranty 5 Year Limited



Intermatic IOS-DDR-WH In-Wall PIR Occupancy/Vacancy Sensor Specification Sheet

Intermatic IOS-DDR-WH In-Wall PIR Occupancy/Vacancy Sensor Installation Instructions



 
