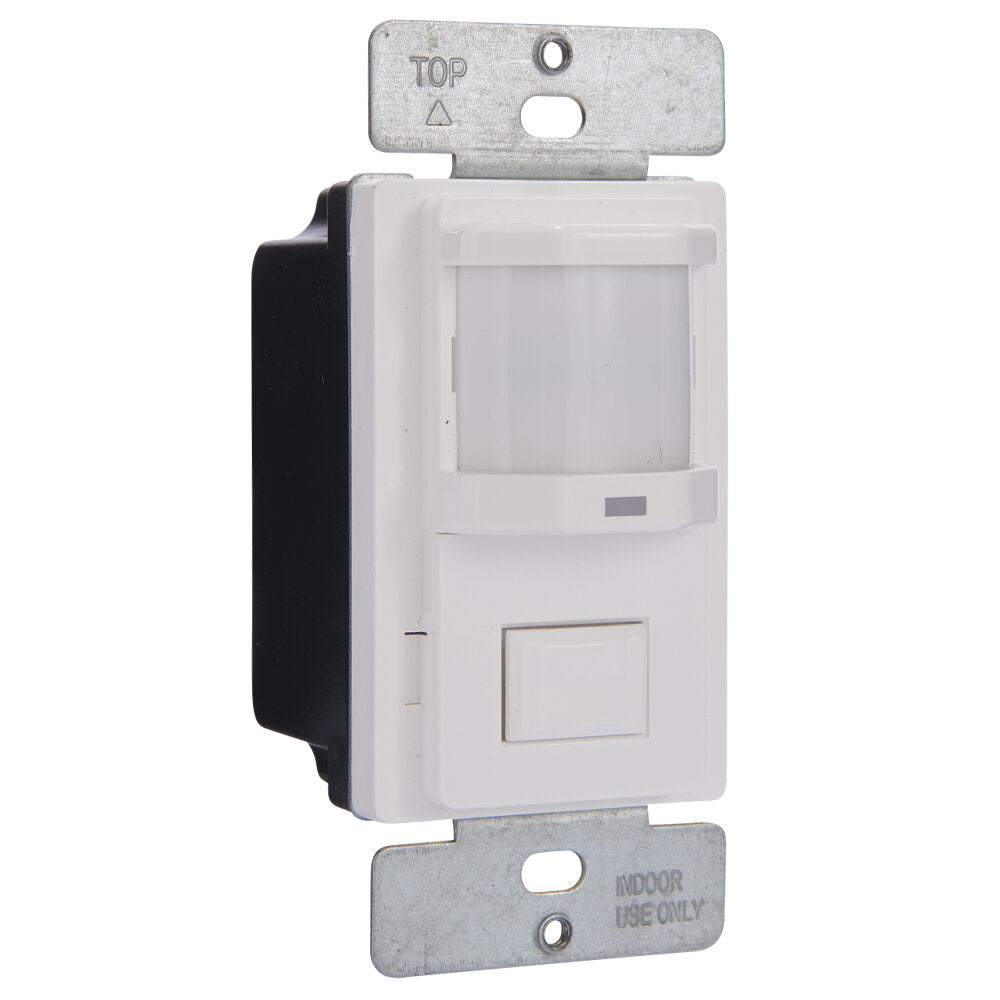

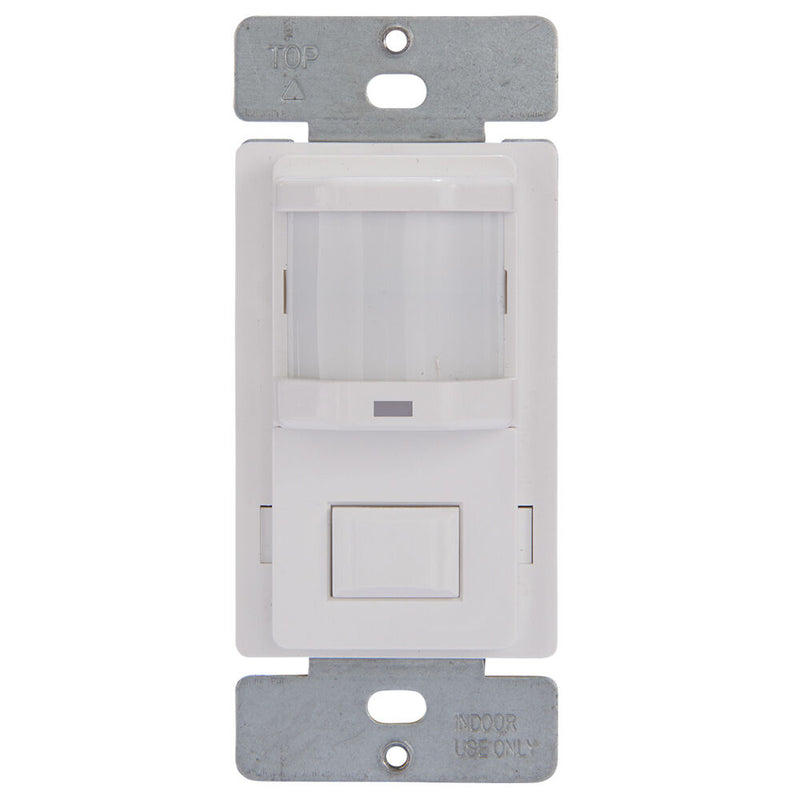

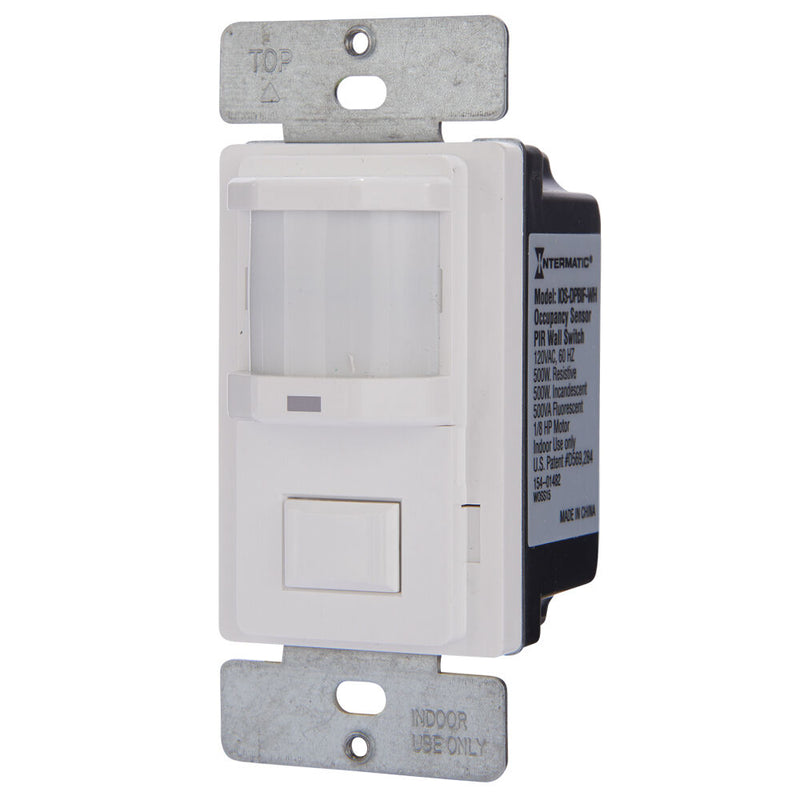

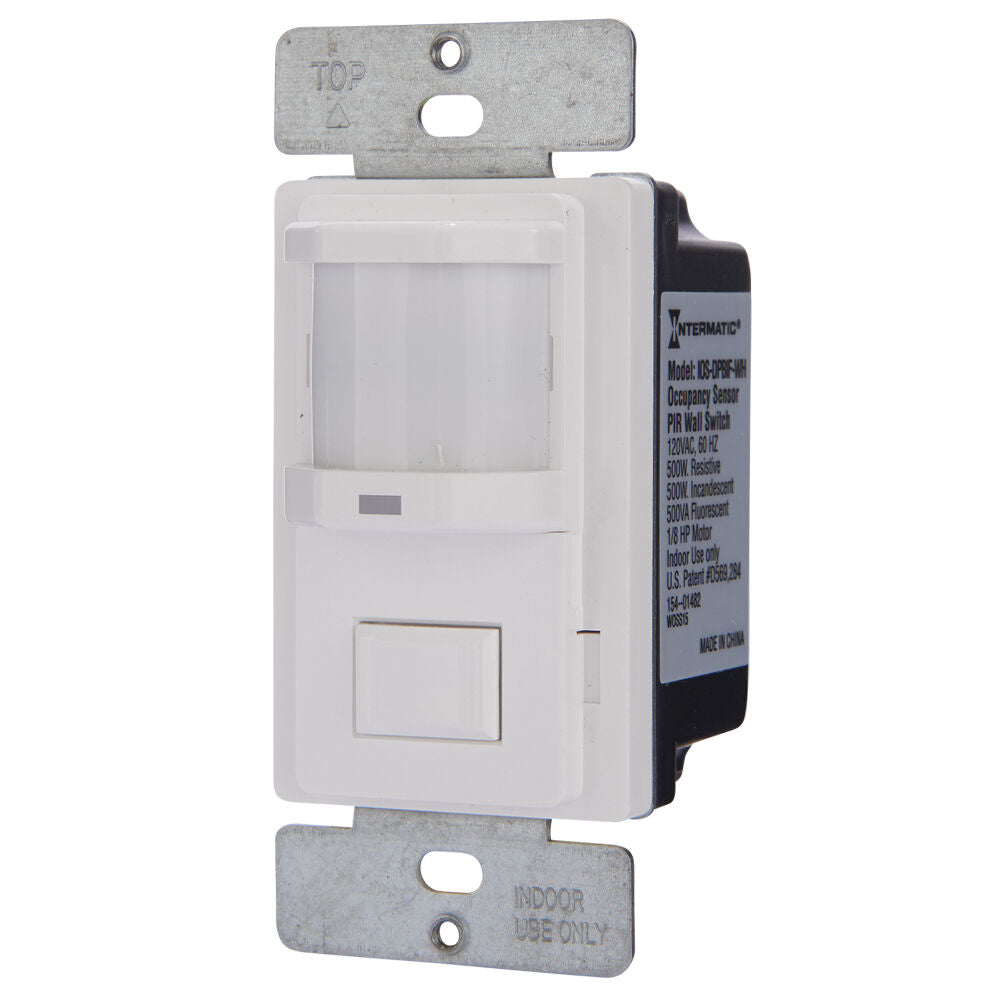

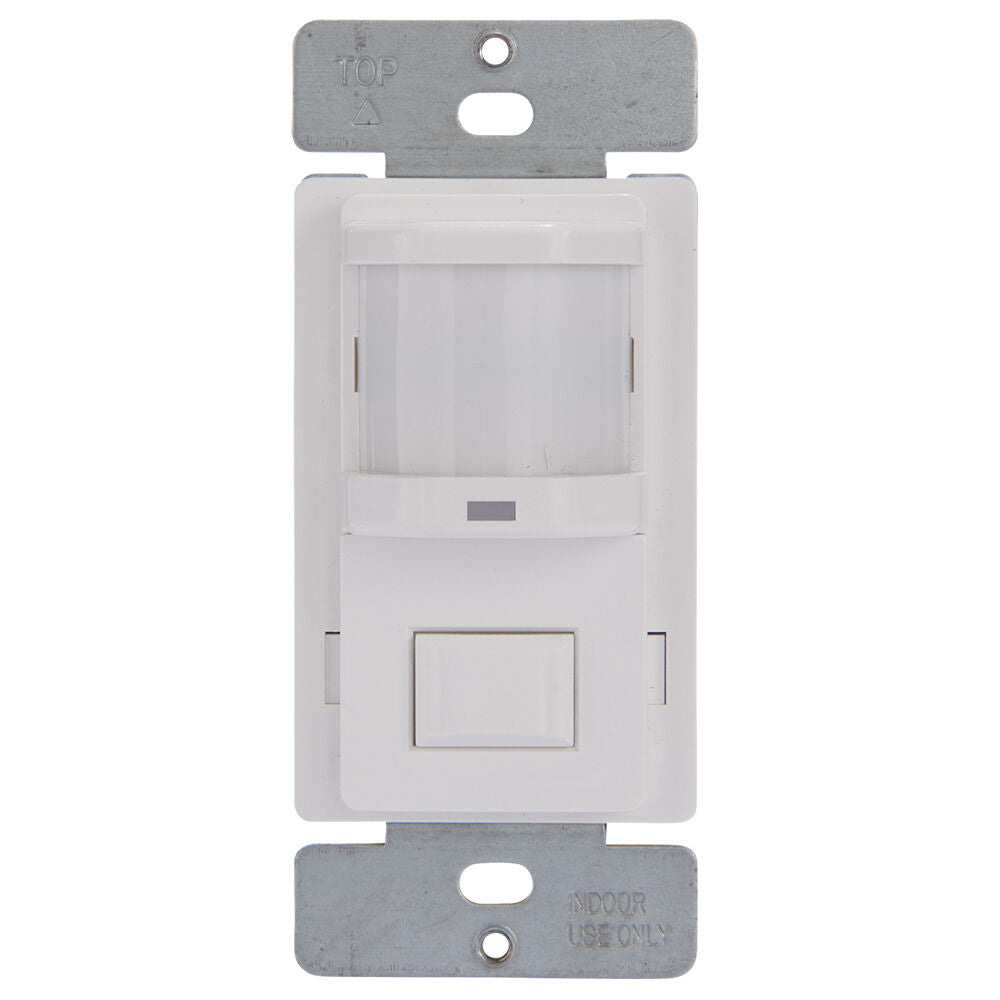

IOS-DPBIMF-WH Residential In-Wall Push Button PIR Occupancy Sensor - No Neutral Required

Intermatic SKU: IOS-DPBIMF-WH
Intermatic IOS-DPBIMF-WH Residential In-Wall Push Button PIR Occupancy Sensor - No Neutral Required
Intermatic IOS-DPBIMF-WH Residential In-Wall Push Button PIR Occupancy Sensor - No Neutral Required
Intermatic IOS-DPBIMF-WH Residential In-Wall Push Button PIR Occupancy Sensor - No Neutral Required
Intermatic IOS-DPBIMF-WH Residential In-Wall Push Button PIR Occupancy Sensor - No Neutral Required
Intermatic IOS-DPBIMF-WH Residential In-Wall Push Button PIR Occupancy Sensor - No Neutral Required
Intermatic IOS-DPBIMF-WH Residential In-Wall Push Button PIR Occupancy Sensor - No Neutral Required
Intermatic IOS-DPBIMF-WH Residential In-Wall Push Button PIR Occupancy Sensor - No Neutral Required
Intermatic IOS-DPBIMF-WH Residential In-Wall Push Button PIR Occupancy Sensor - No Neutral Required

IOS-DPBIMF-WH Residential In-Wall Push Button PIR Occupancy Sensor - No Neutral Required

Intermatic SKU: IOS-DPBIMF-WH
/
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.

Since this device responds to temperature changes, care should be taken when mounting the device. DO NOT mount directly above a heat source, in a location where hot or cold drafts will blow directly on the sensor, or where unintended motion will be within sensor’s field-of-view.

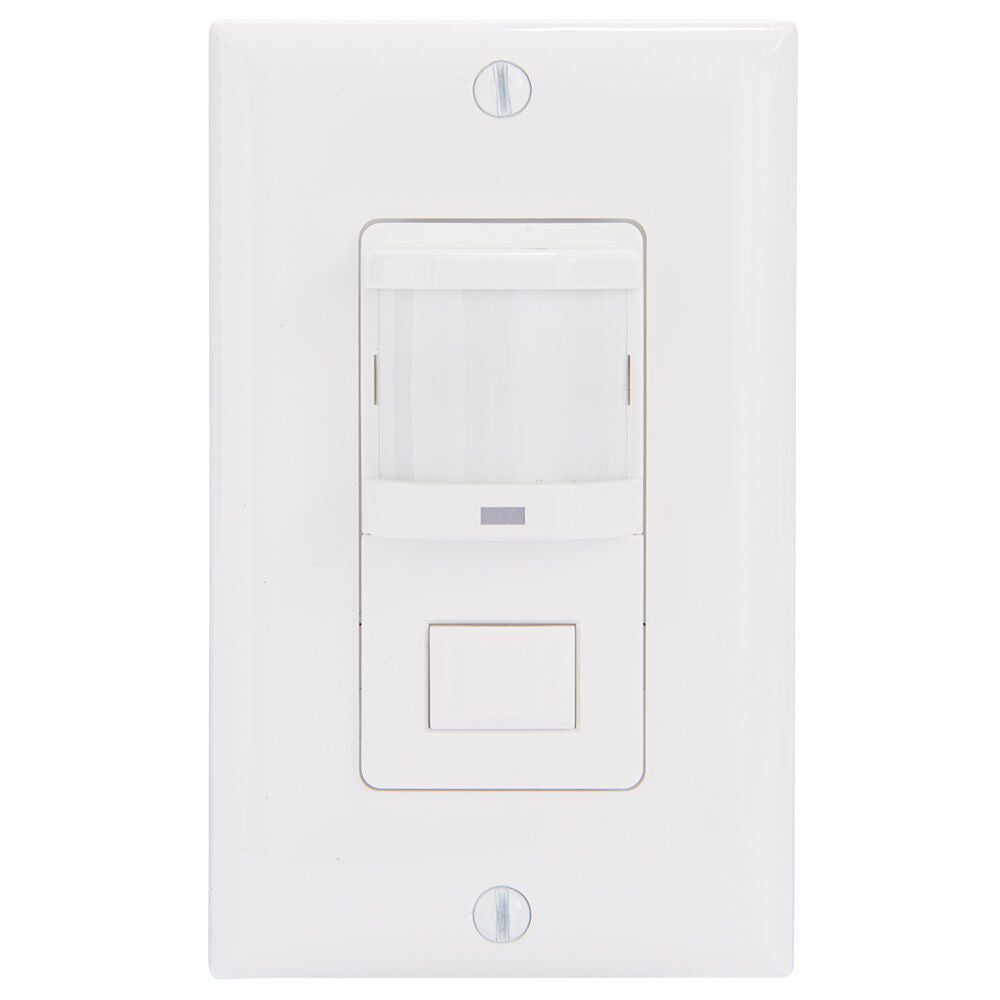

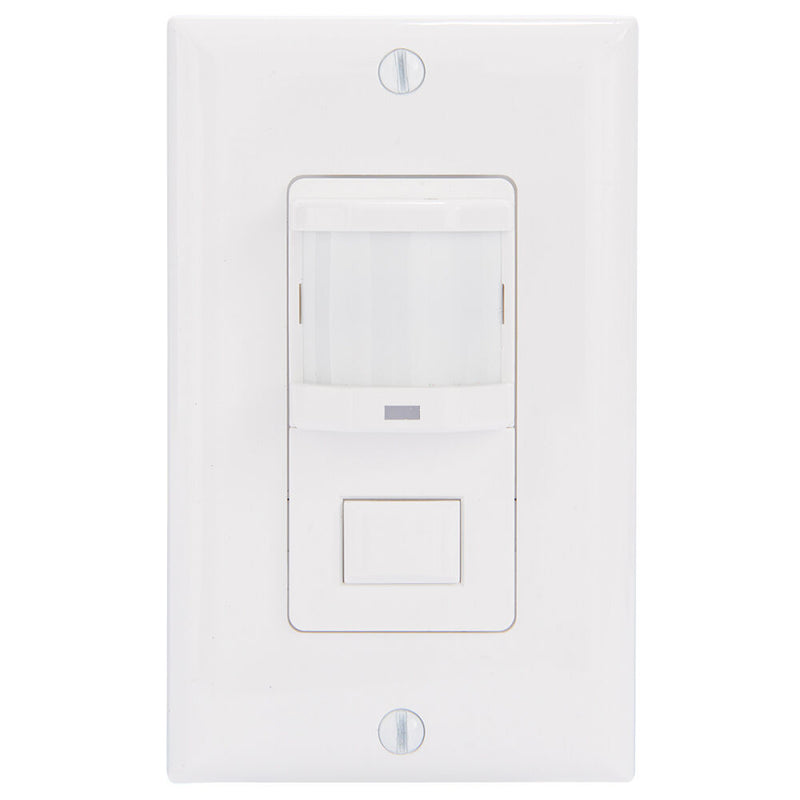

Decorative Face Plate Included

Manufacturer Intermatic
MPN IOS-DPBIMF-WH
SKU IOS-DPBIMF-WH
UPC 078275125315
Lighting Technology Incandescent; Fluorescent; CFL
Input Voltage Range 120V
Frequency 50/60Hz
Sensor Technology PIR (Passive Infrared)
PIR Coverage Area 980 Square Feet
PIR Coverage Pattern 150 Degrees
Neutral Connection Required No
Mounting In-Wall
Maximum Mounting Height 4ft
Occupancy Sensor Power Type Line Voltage
Tungsten Range 800 Watts
Resistive Load Ratings Ranges 800 Watts
Motor Load Ratings Ranges 1/4 HP
Electronic Ballast Load Ratings Ranges 800 VA
Adjustable Time Delay Minimum 15 Seconds
Adjustable Time Delay Maximum 30 Minutes
Adjustable Light Level Minimum 30 lux
Adjustable Light Level Maximum Daylight
Operating Temperature 32°F (0°C) to 131°F (55°C)
Dimensions 2.75" H x 1.4375" W x 1.625" Depth
Certifications cULus, Title 20
Warranty 2 Year Limited



Specification Sheet

Installation Instructions
