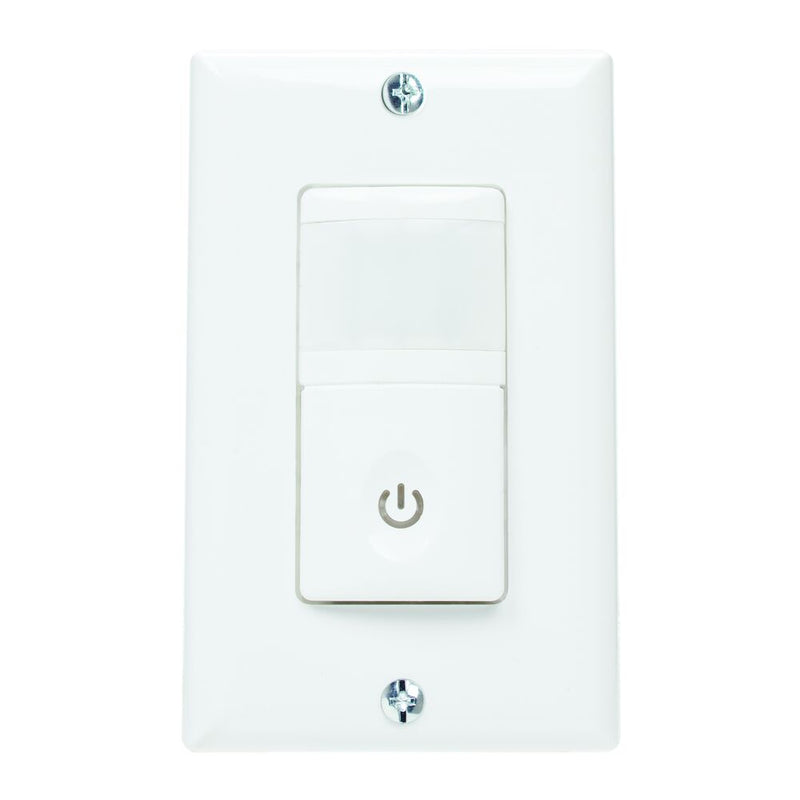

IOS-DPBV-WH Residential In-Wall PIR Vacancy Sensor

Intermatic SKU: IOS-DPBV-WH
Intermatic IOS-DPBV-WH Residential In-Wall PIR Vacancy Sensor

IOS-DPBV-WH Residential In-Wall PIR Vacancy Sensor

Intermatic SKU: IOS-DPBV-WH
Regular price $25.73
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. Once the sensor switch is manually turned ON, it can turn a load ON and hold it as long as the sensor detects any motion. After no motion is detected for the set time delay, the load is turned OFF automatically. The sensor switch has one relay (equal to single pole switch); no minimum load requirements.

Since this device responds to temperature changes, care should be taken when mounting the device. DO NOT mount directly above a heat source, in a location where hot or cold drafts will blow directly on the sensor, or where unintended motion will be within sensor’s field-of-view.

Decorative Face Plate Included

Manufacturer Intermatic
UPC 078275149076
Lighting Technology Incandescent; Fluorescent; CFL
Input Voltage Range 120V
Frequency 60Hz
Sensor Technology PIR (Passive Infrared)
PIR Coverage Area 980 Square Feet
PIR Coverage Pattern 180 Degrees
Neutral Connection Required Yes
Mounting In-Wall
Maximum Mounting Height 4ft
Occupancy Sensor Power Type Line Voltage
Tungsten Range 800 Watts
Resistive Load Ratings Ranges 5A
Motor Load Ratings Ranges 1/4 HP
Electronic Ballast Load Ratings Ranges 800 VA
Adjustable Time Delay Minimum 15 Seconds
Adjustable Time Delay Maximum 20 Minutes
Adjustable Light Level Minimum 25FC
Adjustable Light Level Maximum Daylight
Operating Temperature 32°F (0°C) to 131°F (55°C)
Dimensions 2.75" H x 1.456" W x 1.625" Depth
Certifications cULus, Title 20
Warranty 2 Year Limited
