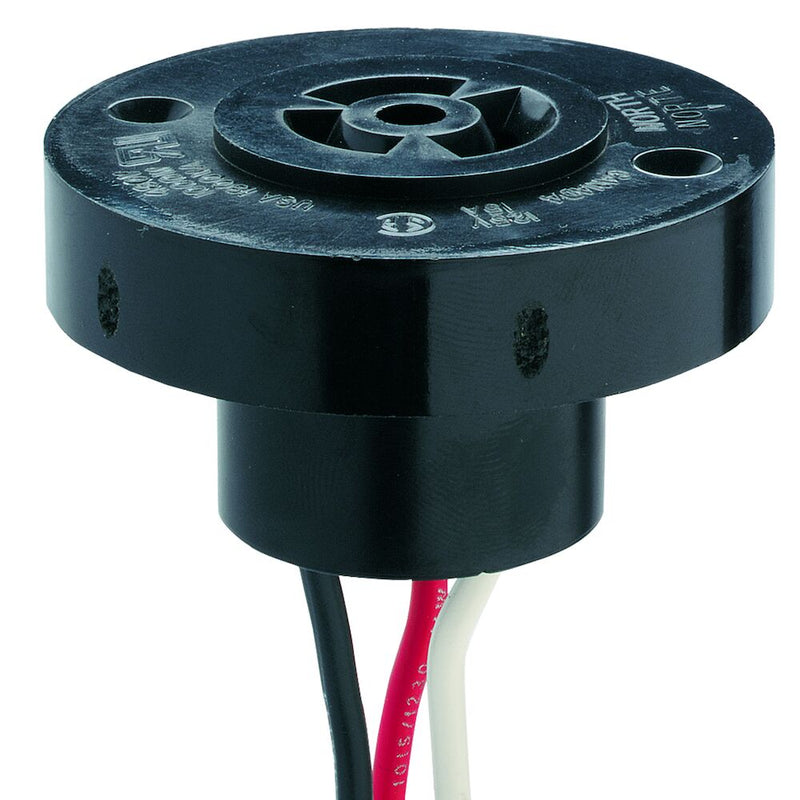

K121 3 Pin Locking Type 9 Inch Lead Receptacle

Intermatic SKU: K121
Intermatic K121 3 Pin Locking Type 9 Inch Lead Receptacle

K121 3 Pin Locking Type 9 Inch Lead Receptacle

Intermatic SKU: K121
Regular price $15.49
/
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

The K121 NEMA receptacles provide the connector interface for locking type photocontrols. They can be installed in the light fixture itself (K121), or attached externally with the use of a mounting bracket (K122). NEMA receptacle with 3-prong sockets and carries a 1 year limited warranty.

Manufacturer Intermatic
MPN K121
SKU K121
UPC 078275045408
Finish Color Black
Base Material
Phenolic
Power Contacts Material
Brass/Phosphor Bronze
Gasket
(Integrated) Thermal Elastomer
Wire Leads
#14 AWG
Operating Temperature -40°C to 80°C
Dimensions 1.52" H x 2.55" Diameter
Certifications RoHS Compliant
Warranty
1 Year Limited
