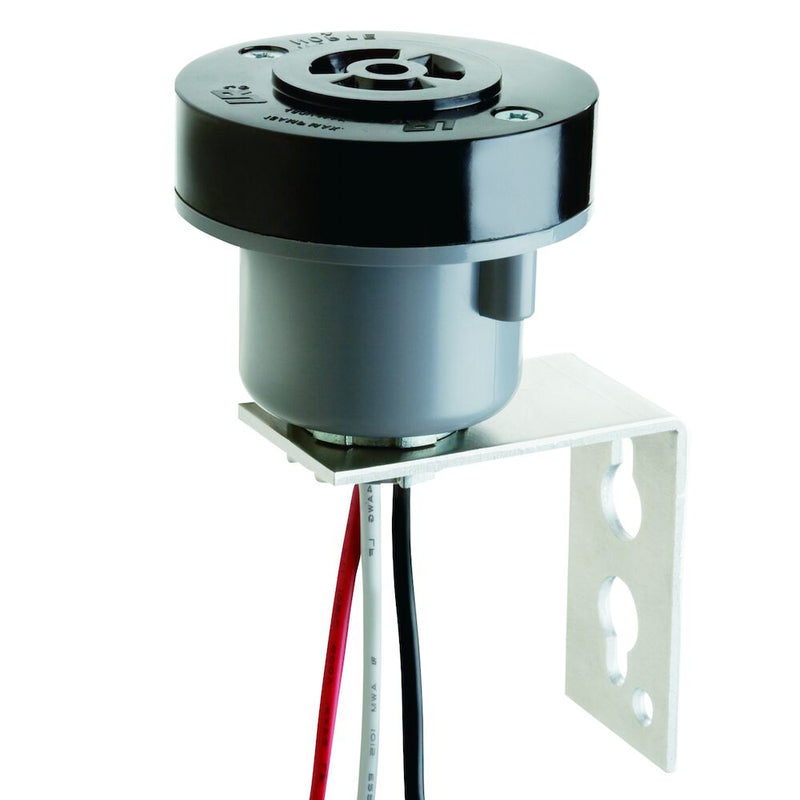

K122 3 Pin Locking Type Receptacle With Pole Mounting Bracket

Intermatic SKU: K122
Intermatic K122 3 Pin Locking Type Receptacle With Pole Mounting Bracket

K122 3 Pin Locking Type Receptacle With Pole Mounting Bracket

Intermatic SKU: K122
Regular price $26.83
/
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

The K122 NEMA receptacles provide the connector interface for locking type photocontrols. They can be installed in the light fixture itself, or attached externally with the use of a mounting bracket (included). NEMA receptacle with 3-prong sockets and carries a 1 year limited warranty.

Manufacturer Intermatic
MPN K122
SKU K122
UPC 078275501201
Finish Color Black
Base Material
Phenolic
Bracket Material
Aluminum
Power Contacts Material
Brass/Phosphor Bronze
Gasket
(Integrated) Thermal Elastomer
Wire Leads
#14 AWG
Operating Temperature -40°C to 80°C
Dimensions 2.13" H x 2.56" Diameter
Certifications Title 20 Compliant, cULus
Warranty
1 Year Limited
