These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.

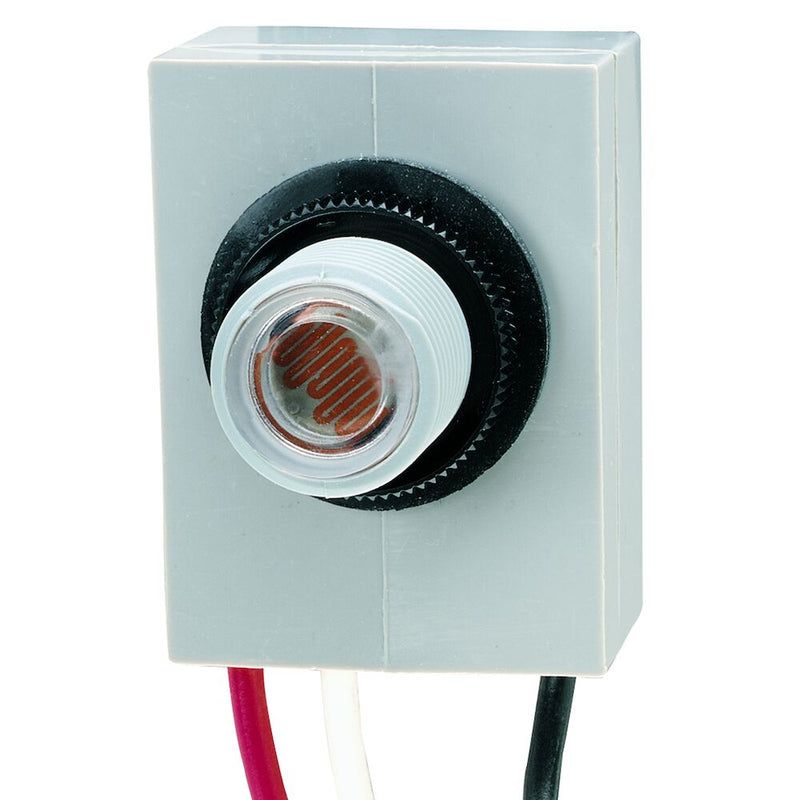

This K4023C 208-277 Volt Thermal Photocontrol with a mechanical bimetal switch and Cadmium Sulfide photocell offers a compact size that fits into standard outlet boxes, post lamps, wall packs, and other lighting fixtures. It also has a delay feature that prevents unwanted OFF switching and includes a 3/8"-18 NPSM 3/4" long stem with a locking nut and washer gasket.
|Application Compatibilities||Fluorescent; HID; Incandescent|
|Input Voltage||208-277 VAC|
|Sensor Time Delay||30 Seconds to 90 Seconds|
|Activation On||1 to 5FC|
|Activation Off||3 to 15FC|
|Magnetic Ballast Range||8.3 A|
|Tungsten Range||15 A|
|Rated Life||5 Years|
|Operating Temperature||-40°C to 70°C|
|Dimensions||1-13/16" H x 15/16" W x 13/16" Depth|
|Wire Lead Length||9 Inches|
|Maximum Wire Size||#18 AWG|
|Certifications||UL, Title 20|
|Warranty||2 Year Limited|
