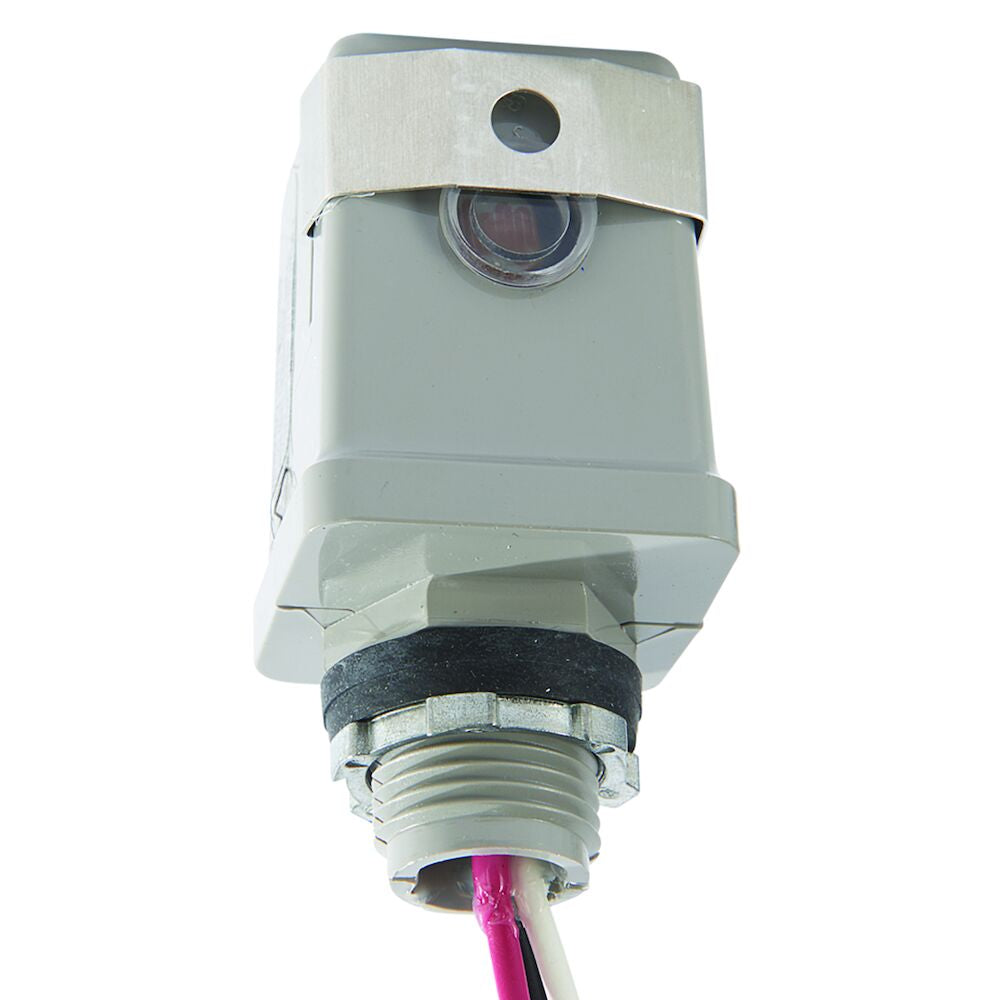

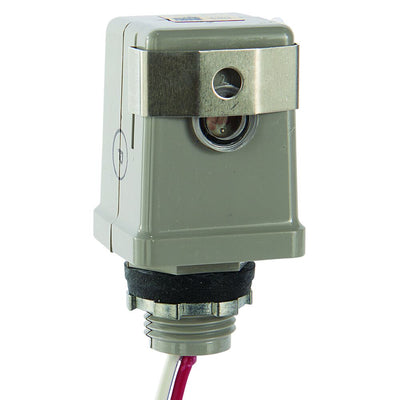

K4121C Stem Mount 120 Volt Thermal Photocontrol

Intermatic SKU: K4121C
Intermatic K4121C Stem Mount 120 Volt Thermal Photocontrol
Intermatic K4121C Stem Mount 120 Volt Thermal Photocontrol

K4121C Stem Mount 120 Volt Thermal Photocontrol

Intermatic SKU: K4121C
Regular price $17.18
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

These photocontrols install on standard outdoor light fixtures and electrical boxes with 1/2"-14 NPSM thread or 7/8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.

The K4121C Stem Mount 120 Volt Thermal Photocontrol is designed to provide dependable performance with its reliable mechanical bimetal switch and Cadmium Sulfide photocell. The delay feature prevents OFF switching while the gray plastic housing provides protection from water and dust. Installation is made easy with 9 inches leads, a washer gasket, and a locking nut included.

Manufacturer Intermatic
MPN K4121C
SKU K4121C
UPC 078275002012
Application Compatibilities Fluorescent; HID; Incandescent
Input Voltage 120 VAC
Frequency 50/60Hz
Sensor Time Delay 30 Seconds to 90 Seconds
Activation On 1 to 5FC
Activation Off 3 to 15FC
Housing Polycarbonate
Magnetic Ballast Range 8.3 A
Tungsten Range 15 A
Rated Life 5 Years
Operating Temperature -40°C to 70°C
Dimensions 3" H x 1-9/16" W x 1-9/16" Depth
Wire Lead Length 9 Inches
Maximum Wire Size #18 AWG
Certifications UL, Title 20
Environment Outdoor
Warranty 2 Year Limited
