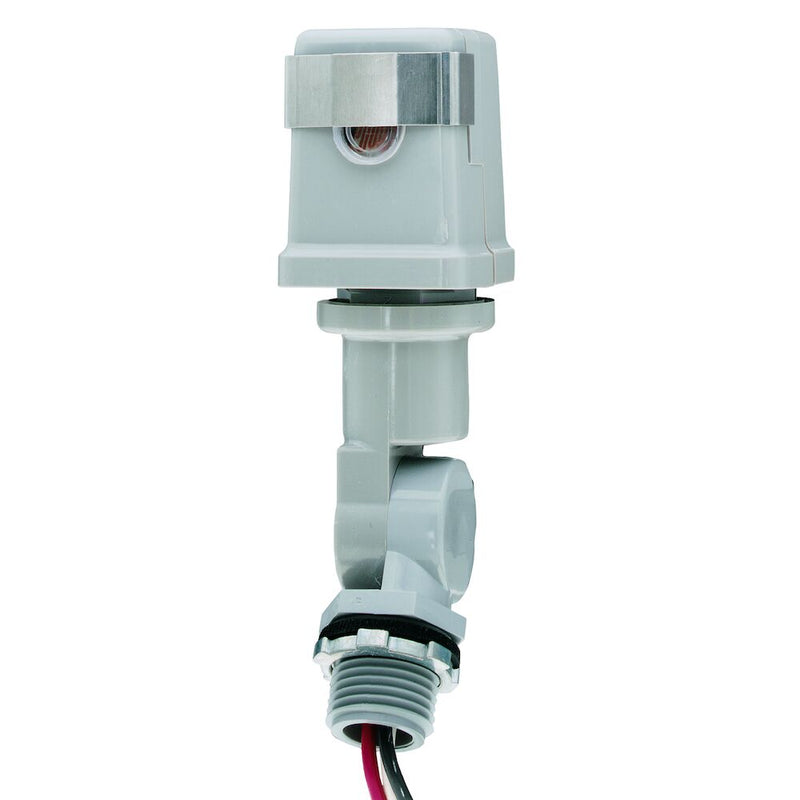

K4223C Stem and Swivel Mount 208-277 Volt Thermal Photocontrol

Intermatic SKU: K4223C
Intermatic K4223C Stem and Swivel Mount 208-277 Volt Thermal Photocontrol

K4223C Stem and Swivel Mount 208-277 Volt Thermal Photocontrol

Intermatic SKU: K4223C
Regular price $33.06
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes.

The K4223C is a 208-277 Volt thermal photocontrol designed for outdoor applications. Its mechanical bimetal switch and Cadmium Sulfide photocell work together to create a reliable auto-ON/OFF lighting control system. To ensure accuracy, the photocontrol has a delay feature that prevents unwanted OFF switching, and a swivel with 1/2"-14 NPSM threaded stem for added protection. Constructed with high strength UV resistant plastic housing, this photocontrol includes a washer gasket and locking nut, as well as #18 AWG and 6 inch wire leads.

Manufacturer Intermatic
MPN K4223C
SKU K4223C
UPC 078275056954
Application Compatibilities Fluorescent; HID; Incandescent
Input Voltage 208-277 VAC
Frequency 50/60Hz
Sensor Time Delay 30 Seconds to 90 Seconds
Activation On 1 to 5FC
Activation Off 3 to 15FC
Housing Polycarbonate
Magnetic Ballast Range 8.3 A
Tungsten Range 15 A
Rated Life 5 Years
Operating Temperature -40°C to 70°C
Dimensions 5" H x 1-9/16" W x 1-9/16" Depth
Wire Lead Length 6 Inches
Maximum Wire Size #18 AWG
Certifications UL, Title 20
Environment Outdoor
Warranty 2 Year Limited
