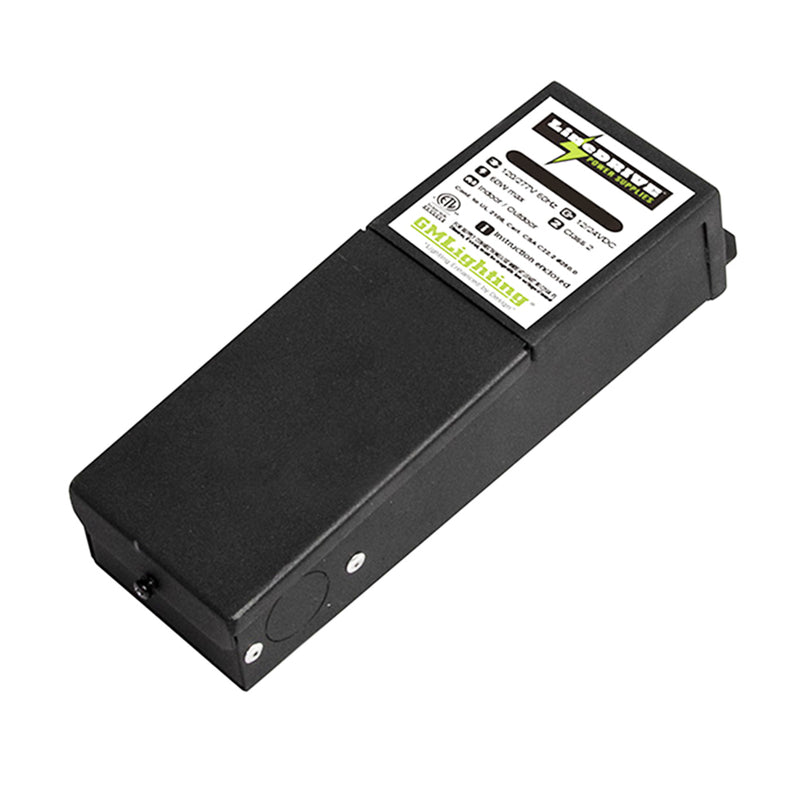

LD-MD-UNV200-24 192W Power Supply

GM Lighting SKU: LD-MD-UNV200-24
GM Lighting LD-MD-UNV200-24 192W Power Supply

LD-MD-UNV200-24 192W Power Supply

GM Lighting SKU: LD-MD-UNV200-24
Regular price $216.00
/
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

GM Lighting 12VDC and 24VDC Flexible LED Linear Ribbon is the industry standard where an energy-saving standard or high output LED source is required. Flexible LED ribbon, also called out as LED ribbon under cabinet lighting, is perfectly suited for cove lighting, architectural detail illumination, task lighting and hospitality lighting. GM Lighting's LTR Series is a flexible LED linear ribbon that conforms to straight, curved and irregular architectural coves, banisters, recesses, and other applications where even, energy saving LED illumination is specified. The GM Lighting LEDTask series of flexible LED linear ribbon is available in either 16 foot and 4 inch (5 meter) reels as well as 100 foot (or 30 meter) reels of either standard output or high output LEDs and can be cut in the field to achieve virtually any custom installation.

To assist with your specific project needs, flexible LED ribbon accessories include an end-to-end, 3", 12", 24", 36" or 60" flexible ribbon to ribbon connectors or 6", 24", 48" and 60" ribbon to power supply connectors and the GMSB series black or white splice boxes (all sold separately). Flexible LED ribbon is very easy to work with. See for yourself.

A power supply is required to energize any of the GM Lighting LED flexible ribbon products. LED dimming magnetic power supply that works with conventional low voltage magnetic wall mount dimmer with on/o! switch. 24 VDC output. 120 or 277 VAC input. Highest efficiency with auto reset. Compatible with standard low voltage magnetic dimmers. Not recommended for digital control systems. This item is the Dimmable Power Supply LD-MD-UNV200-24, replacing the LTHM200-DIM-24. The LD-MD series 24VDC hardwire magnetic LED dimmable power supplies feature the smallest dimmable Class II hardwire LED dimming magnetic power supply on the market. This power supply measures 11.02" long by 4.88" wide by 3.62" high, the recommended load is from 40% to 85% for optimal performance. An auto reset thermal circuit breaker is on the secondary side. and is compatible with MLV Dimmers. The LD-MD-UNV200-24 power supplies operate on 120V 60Hz circuits and are ETL listed for indoor and outdoor use

Manufacturer GM Lighting
MPN LD-MD-UNV200-24
SKU LD-MD-UNV200-24
UPC 849951015387
Lighting Technology LED
Wattage 192 Watts (2 x 96 Watt Drivers)
Voltage Output 24VDC
Input Current 1.71A @ 120VAC; 0.73146mA @ 277VAC
Current Output 4.00A
Output Full Load 22.8VDC
Open Circuit Output Voltage 25.3VDC
Frequency 60Hz
Dimmable Yes, With Compatible MLV Dimmers
Power Factor 0.99
Operating Temperature 0 to 104°F (-18 to 40°C)
Dimensions 11.02"L x 4.88"W X 3.62"H
Certifications Class 2, ETL Compliant, NEMA 3R
Environment Wet Locations
Warranty 5 Year Limited
