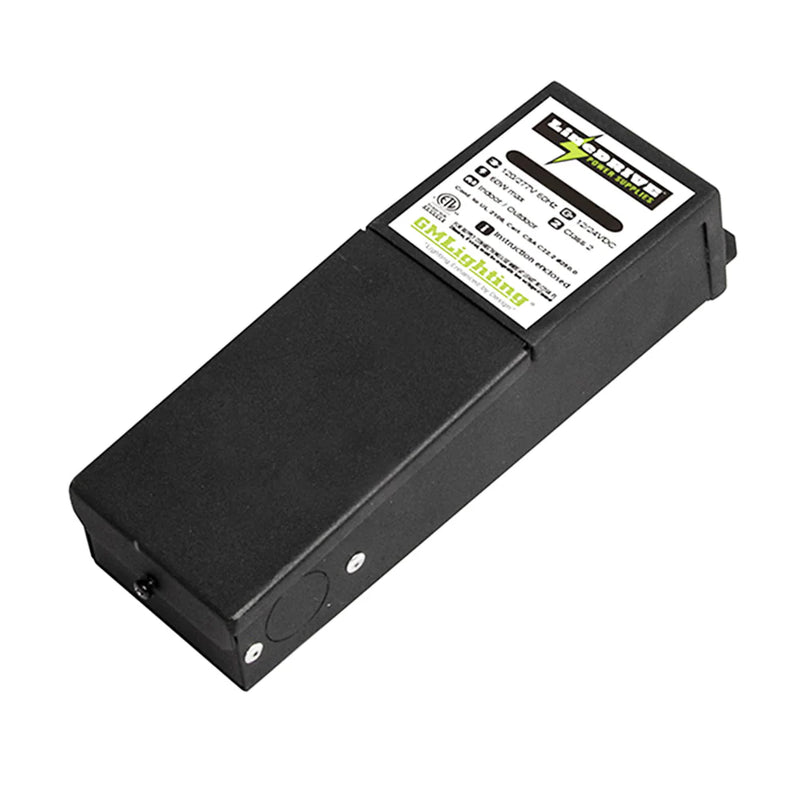

LD-MD-UNV60 60 Watt Power Supply

GM Lighting SKU: LD-MD-UNV60
GM Lighting LD-MD-UNV60 60 Watt Power Supply

LD-MD-UNV60 60 Watt Power Supply

GM Lighting SKU: LD-MD-UNV60
Regular price $154.82
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

GM Lightings 12VDC and 24VDC Flexible LED Linear Ribbon is the industry standard where an energy-saving standard or high output LED source is required. Flexible LED ribbon, also called out as LED ribbon under cabinet lighting, is perfectly suited for cove lighting, architectural detail illumination, task lighting and hospitality lighting. GM Lighting's LTR Series is a flexible LED linear ribbon that conforms to straight, curved and irregular architectural coves, banisters, recesses, and other applications where even, energy saving LED illumination is specified. The GM Lighting LEDTask series of flexible LED linear ribbon is available in either 16 foot and 4 inch (5 meter) reels as well as 100 foot (or 30 meter) reels of either standard output or high output LEDs and can be cut in the field to achieve virtually any custom installation.

To assist with your specific project needs, flexible LED ribbon accessories include an end-to-end, 3", 12", 24", 36" or 60" flexible ribbon to ribbon connectors or 6", 24", 48" and 60" ribbon to power supply connectors and the GMSB series black or white splice boxes (all sold separately). Flexible LED ribbon is very easy to work with. See for yourself.

A power supply is required to energize any of the GM Lighting LED flexible ribbon products. LED dimming magnetic power supply that works with conventional low voltage magnetic wall mount dimmer with on/o! switch. 12 or 24 VDC output. 120 or 277 VAC input. Highest efficiency with auto reset. Compatible with standard low voltage magnetic dimmers. Not recommended for digital control systems. This item is the Dimmable Power Supply LD-MD-UNV60, replacing the LTHM60-DIM and LTHM60-DIM-24. The LD-MD series 12VDC and 24VDC hardwire magnetic LED dimmable power supplies feature the smallest dimmable Class II hardwire LED dimming magnetic power supply on the market. This power supply measures 8.86" long by 3.31" wide by 2.89" high, the recommended load is from 40% to 85% for optimal performance. An auto reset thermal circuit breaker is on the secondary side. and is compatible with MLV Dimmers. The LD-MD-UNV60 power supplies operate on 120V 60Hz circuits and are ETL listed for indoor and outdoor use.

Manufacturer GM Lighting
UPC 849951015417
Lighting Technology LED
Wattage 60 Watts
Voltage Output 12VDC & 24VDC
Input Current 663mA @ 120VAC; 290mA @ 277VAC
Current Output 5A @ 12VDC; 2.50A @ 24VDC
Output Full Load 11.3VDC; 23.2VDC
Open Circuit Output Voltage 12.9VDC & 25.4VDC
Frequency 60Hz
Dimmable Yes, With Compatible MLV Dimmers
Power Factor 0.87
Operating Temperature 0 to 104°F (-18 to 40°C)
Dimensions 8.86"L x 3.31"W X 2.89"H
Certifications Class 2, ETL Compliant, NEMA 3R
Environment Wet Locations
Warranty 5 Year Limited
