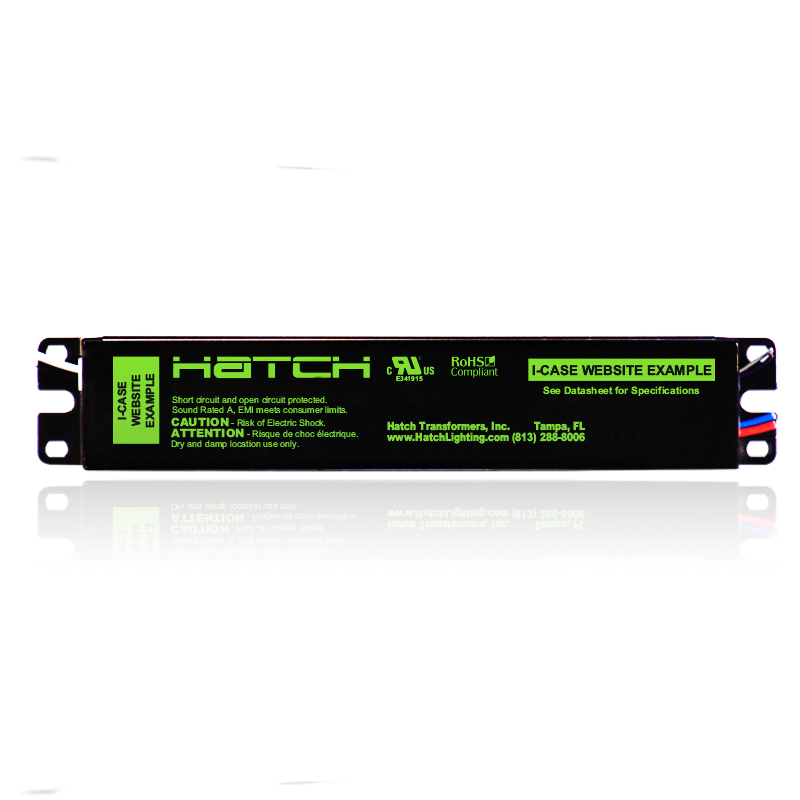

LV100-24N-UNV-I 100 Watt LED 4170mA Constant Voltage Driver

Hatch Lighting SKU: LV100-24N-UNV-I
Hatch Lighting LV100-24N-UNV-I 100 Watt LED 4170mA Constant Voltage Driver

LV100-24N-UNV-I 100 Watt LED 4170mA Constant Voltage Driver

Hatch Lighting SKU: LV100-24N-UNV-I
Regular price $65.93
/
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Customers have trusted Hatch Lighting for over 30 years to provide them with the top-notch products and personal service that only an independent manufacturer can provide. Today, Hatch has stayed true to its roots and is the premier independent full-line power supply manufacturer in the industry. Whether you need transformers, HID ballasts, fluorescent ballasts, or LED drivers, Hatch has you covered.

Hatch Lighting presents their constant voltage LED drivers. These LED drivers are optimized for high efficiency performance and are ideal for use in interior luminaire applications. Hatch Lighting drivers come in many case styles, allowing them to fit numerous applications. This driver has the following protections: short circuit, overload, and over temperature protection. Hatch Lighting LED drivers are suitable for dry and damp locations.

This item is the Hatch Lighting LED Driver part number LV100-24N-UNV-I. The input voltage is universal 120-277 volt. The current output is 4.17A. Approvals of this driver include cURus, Class 2, CE, RoHS, Dry or Damp Locations.

Hatch Lighting provides the purchaser a 5 year warranty, given that it was properly installed per instructions and under normal operating conditions of use. Each power supply will be free from defects in material or workmanship 5 years from the date of manufacture, based on a typical 12hr/day operation and subject to the Terms and Conditions.

Manufacturer Hatch Lighting
MPN LV100-24N-UNV-I
SKU LV100-24N-UNV-I
UPC 797281610027
Lighting Technology LED
Driver Constant Voltage
Output Current 4.14A (4140mA)
Input Current 0.96/0.41A
Input Wattage 110 Watt
Output Wattage 100 Watt
Input Voltage 120-277VAC
Output Voltage 24VDC
Frequency 50/60Hz
Power Factor >.90
THD (Total Harmonic Distortion) Power 20%
Efficiency 86%
Operating Temperature -40°C to 90°C
Dimensions 9.50" L x 1.70" W x 1.18" H
Certifications Class 2, RoHS Compliant, FCC
Environment Dry and Damp Location
Warranty 5 Year
