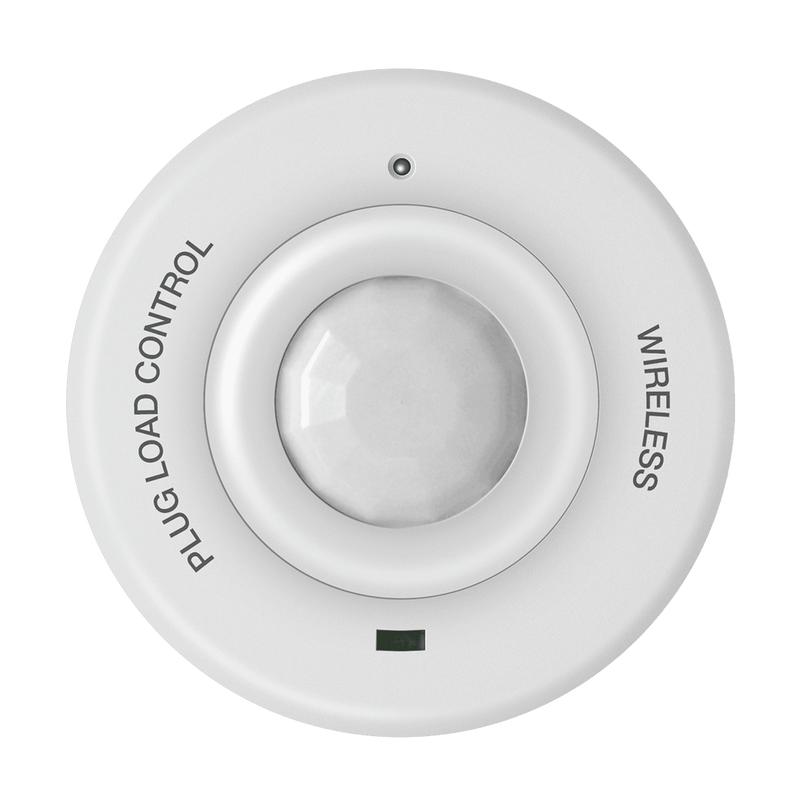

The Enerlites PLBPC is a wireless ceiling mount sensor that operates lights using passive infrared (PIR) technology. The sensor can connect to a maximum of 6 plug load control receptacles and it features a 360° field of view with a 24 ft. diameter range. This ceiling mounted sensor operates lights ON/OFF based on occupancy detected in the area. The occupancy sensor turns lights ON when motion is detected and OFF when no motion is detected for a 30-minute time delay. The sensor also includes a manual override button that can be used to turn devices off before the time delay. The ceiling sensor is powered by two AA lithium batteries for easy installations.

The PL20R and PLBPC are Wireless Plug Load Controls that are code compliant with 2013 California Title 24. The powerful 20A Tamper Resistant Smart Duplex Receptacle has Controlled and Uncontrolled receptacles, an LED indicator, and a Manual override button. The Controlled Plug Load will turn ON when motion is detected by the ceiling sensor and will turn off 30 minutes after the room is vacated. The PIR ceiling sensor is battery operated so there is no need for expensive in-wall wiring between the sensor and receptacles. Each PIR sensor can pair up more than the 6 recommended receptacles with a wireless range up to 24' so it can operate in large rooms such as conference rooms and lobbies.

Check with your electrician for maximum receptacles allowed per branch circuit. A PLBPC sensor can control PL20R receptacles that are installed on different branch circuits. See Installation Instructions for more information.

Enerlites Wireless Plug Load Control PIR Occupancy Ceiling Sensor Specification Sheet

Enerlites Wireless Plug Load Control PIR Occupancy Ceiling Sensor Installation Instructions
