Single Face Chicago Code Compliant Surface Mount Steel Exit Combo

Keystone Technologies SKU: KT-EC-STCH1-WH1RW-SU

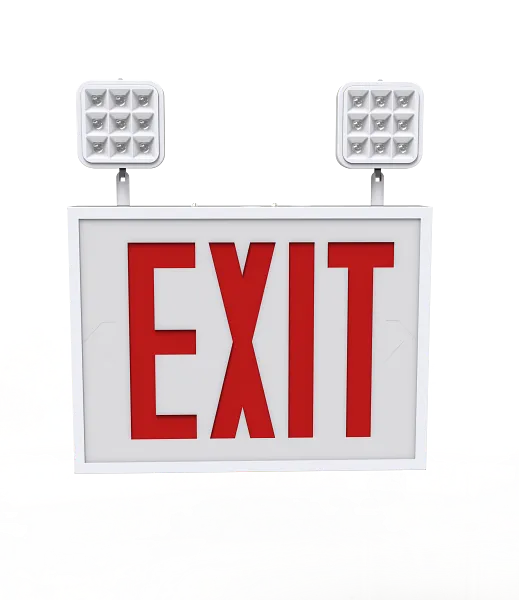

Keystone Technologies Single Face Chicago Code Compliant Surface Mount Steel Exit Combo Normal Lumen Output

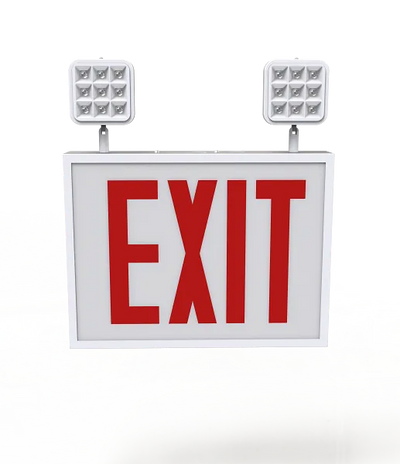

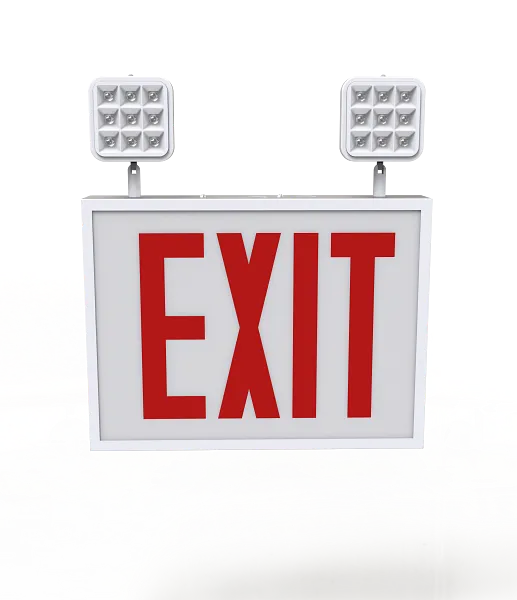

Keystone Technologies Single Face Chicago Code Compliant Surface Mount Steel Exit Combo High Lumen Output
Keystone Technologies Single Face Chicago Code Compliant Surface Mount Steel Exit Combo Normal Lumen Output
Keystone Technologies Single Face Chicago Code Compliant Surface Mount Steel Exit Combo High Lumen Output

Single Face Chicago Code Compliant Surface Mount Steel Exit Combo

Keystone Technologies SKU: KT-EC-STCH1-WH1RW-SU
  • Chicago Code Complaint, Title 20 Compliant
/
Lumen Output
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

A commercial building's emergency and exit light requirements mandate active lights in egress exit routes. We offer a wide range of hard wired and/or battery backup emergency lighting that includes LED emergency lights, LED emergency exit signs, LED emergency light combos, LED emergency tube lights and LED emergency retrofit kits, drivers and inverters to meet your needs.

Introducing Keystone Technologies line of Smart Safe Exit Signs, Combo Units and Emergency Lights.

The Keystone Technologies KT-EC-STCH1-WH1RW-SU-XX includes a Single Face with Red Lettering and is available with Normal or High Lumens Outputs. Featuring Surface Mounting for Top, Side or Back. Rated for 120-277V input voltage and includes a built-in test switch and provides 90 minutes of Emergency Power. With dual adjustable heads and a white 20-Gauge Steel housing and Facings measuring  12.40" W X 2.36" Depth by 8.86 " H. Certifications include Chicago Code Rated, UL 924, Title 20 Approved and is rated for damp locations with a 5-year warranty.

Specifications
Manufacturer Keystone Technologies
Finish Color White
MPN KT-EC-STCH1-WH1RW-SU KT-EC-STCH1-WH1RW-SU-HO
SKU KT-EC-STCH1-WH1RW-SU KT-EC-STCH1-WH1RW-SU-HO
UPC 843654165318 843654165325
Lighting Technology LED
Wattage 4.8 Watts
Lumens 400 Lumens 800 Lumens
Voltage 120-277V
Letter Color Red
Run Time 90 Minutes
Charging Time 24 Hours
Battery NiMH-1200mAh NiMH-2000mAh
Testing Function Manual Test Button w/Charging Indicator
Mounting Universal J-Box
Housing 20-Gauge Steel Housing and Facings
Dimensions 12.40"L x 2.36"W x 8.86"H
Operating Temperature 0°C (32°F) to 40°C (104°F)
Environment Damp Location Rated
Certifications Chicago Code Compliant, Title 20 Compliant
Warranty 5 Year Warranty
Documents

Keystone Single Face Chicago Code Compliant Surface Mount Steel Exit Combo Specification Sheet

Keystone Single Face Chicago Code Compliant Surface Mount Steel Exit Combo Installation Instructions
