The high quality alternative to Gripple or Caddy Speed Link, Rize Kwik Loc (also called Kwik Lock or Quick Lock) cable locks are a fast and reliable cable suspension system for fluorescent lighting, HIDs, sound systems, cable trays, fan units or seismic bracing. Cable locks provide a fast, strong and lightweight cable hanger solution for hanging electrical and mechanical products. Its time saving qualities have been shown to increase productivity by up to six times compared to traditional hanging methods. The installation process is straight forward and requires no specialized training.
An upgrade from the standard Kwik-Loc is the Security Kwik-Loc. These security Kwik-Locs are to be used on static load applications only. However, Security Kwik-Locs offer more reliability in instances where your static load may become dynamic by flying objects, unexpected movement or striking. The locking bolts on the Security Kwik-Loc hold the inside locking wedge in place and disable the release pin feature until the locking bolt is manually loosened.

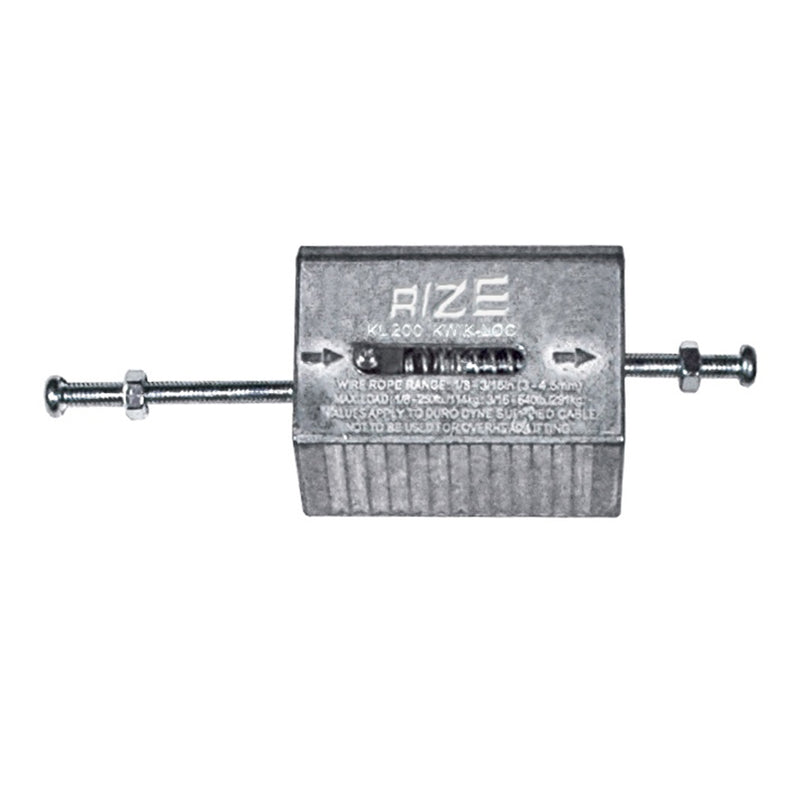

Introduced to work on most light hanging applications, the SKL200 can be used to hang fluorescent fixtures, speakers, busbar and cable tray, to name a few. The SKL200 has a one piece die cast Zinc type Zamac 5 housing combining major anti-corrosion properties with strength and consistent manufacturing quality. The key components to this revolutionary cable lock are the internal locking wedges and, of course, the locking bolt. An oil impregnated, sintered steel locking wedge is seated in each of the two channels.
Both wedges incorporate a release pin for easy adjustment. Each wedge makes contact with the wire rope using serrated teeth. These teeth press onto the wire rope and spread the load across the length of the wedge, maximizing grip strength. Each spring within each SKL200 is manufactured of type 302 S26 stainless steel. Now you see why we call this a quality, revolutionary product! The SKL200 is designed for use with the Rize 3/16" Galvanized Steel Wire Rope.
DO NOT USE FOR LOADS OUTSIDE THE STATED RANGE OF THE PRODUCT. DO NOT EXCEED THE SAFE WORKING LOAD OF THE PRODUCT. DO NOT USE ON COATED WIRE ROPE. DO NOT APPLY PAINT OR OTHER COATING. DO NOT APPLY LUBRICANT. DO NOT USE FOR LIFTING. KEEP THE PRODUCT CLEAN AND FREE FROM DIRT. REMOVE DAMAGED CABLE END PRIOR TO INSERTING INTO THE KWIK-LOC. DO NOT USE IN CHLORINATED ATMOSPHERES. FOR USE IN DRY LOCATIONS ONLY. CABLE LOCKS ARE TO BE USED ON STATIC LOAD APPLICATIONS ONLY.
|Wire Rope Compatibility||RWC6|
|Wire Rope Diameter||3/16 Inch|
|Wire Rope Length||250 Feet|
|Wire Rope Tolerance||+.018/-.009|
|Wire Rope Construction||7x19|
|Wire Rope Min Breaking Strength||4200 lbs|
|Safe Working Load||50-640 lbs (25-291 kg)|
