Smart Port LED PIR Motion Sensor For Use With Keystone HID LED Bulbs

Keystone Technologies SKU: KTS-PIR1-12V-AUX
Keystone Technologies Smart Port LED PIR Motion Sensor For Use With Keystone HID LED Bulbs

Smart Port LED PIR Motion Sensor For Use With Keystone HID LED Bulbs

Keystone Technologies SKU: KTS-PIR1-12V-AUX
/
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

** This product is to be used with select Keystone Technologies LED HID Retrofit bulbs including: 360 Degrees DirectDrive, Vertical DirectDrive, and OmniFlex lamps**

Attaching controls to an HID LED lamp has been a challenge, limiting energy savings and rebate dollars. Now, with Smart Port LED, you can upgrade to customizable and controllable LED lights and improve your efficiency with ease like you’ve never seen before. Simply insert the LED light sensor and adjust the settings quickly by hand. Even if you choose not to plug in a sensor, the light will operate as a regular lamp. Smart Port LED has three sensor options that include a microwave sensor, PIR motion sensor, and photo sensor.

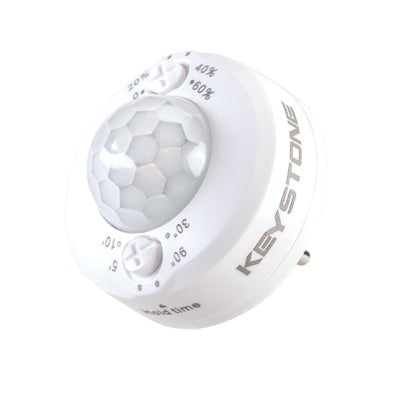

This is Keystone's KTS-PIR1-12V-AUX PIR Motion Sensor, it offers on-off functionality, standby level options and hold time options for motion detection. Smart Port LED has two other sensor options that include a microwave sensor and photo sensor. These sensors conveniently install in seconds via a standard 3.5mm AUX port connection and require 12V Input.

Specifications
Manufacturer Keystone Technologies
MPN KTS-PIR1-12V-AUX
SKU KTS-PIR1-12V-AUX
UPC 843654123264
Lighting Technology LED
Input Voltage 12V
Output Voltage 0-10V
Operating Current 20mA
Dimming Adjustable Standby Levels 0-60%
Detection Angle 120 Degrees
Max Mounting Height 20 Ft
Detection Radius 13.2 Ft
Operating Temperature -20ºC/-4ºF to 60ºC/140ºF
Certifications IP20
Warranty 5 Years
Documents

Keystone Smart Port LED PIR Motion Sensor Specification Sheet
