Get the best LED drivers from Magnitude Lighting and experience their advanced technology that produces the highest efficiency ratings in the industry. With headquarters in Orange County, they provide top-quality products, fast fulfillment, and top-notch customer support.

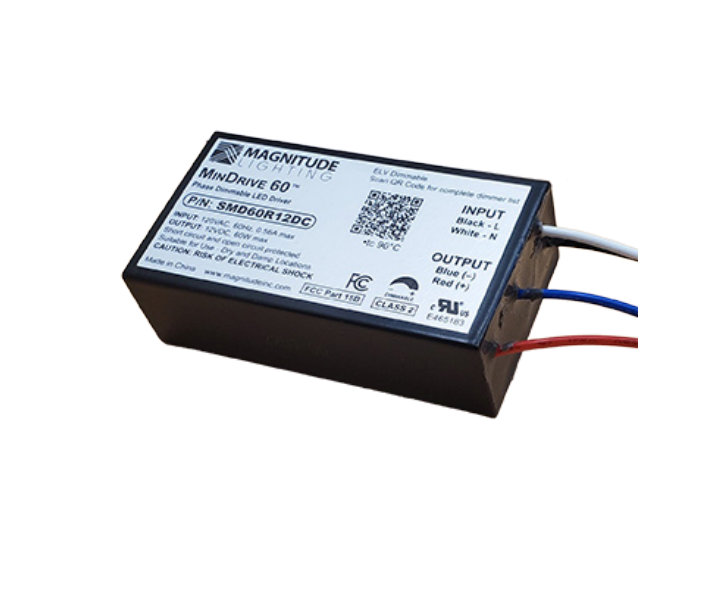

The SMD60R12DC mini constant voltage LED driver by Magnitude Lighting, with a 60 watt maximum output power and 5000mA output current, is a reliable choice for constant voltage input (12V) LED systems. This MinDrive 60 dimmable driver is equipped with over temperature, over load, and short circuit protections, and has a universal input voltage of 100-130V with 60Hz of frequency. Additionally, it is IP20 rated, UL 8750 Approved, and Class 2, Class B rated, providing a 5-year warranty for added peace of mind. Experience smooth, flicker-free phase dimming with most LED's and a wide range of compatible dimmers.
| Manufacturer | Magnitude Lighting |
| MPN | SMD60R12DC |
| SKU | SMD60R12DC |
| UPC | 810020792836 |
| Lighting Technology | LED |
| Driver | Constant Voltage |
| Output Current | 5A (5000mA) |
| Input Current | 0.56A |
| Output Wattage | 60 Watt |
| Input Voltage | 100-130VAC |
| Output Voltage | 12VDC |
| Power Factor | >.90 |
| Dimming | Phase Dimming |
| Operating Temperature | -30°C to 40°C |
| Dimensions | 2.9" W x 1.6" H x 0.9" Depth |
| Certifications | Class 2, Class B, UL Listed |
| Environment | Dry or Damp Location |
| Warranty | 5 Year Standard |
